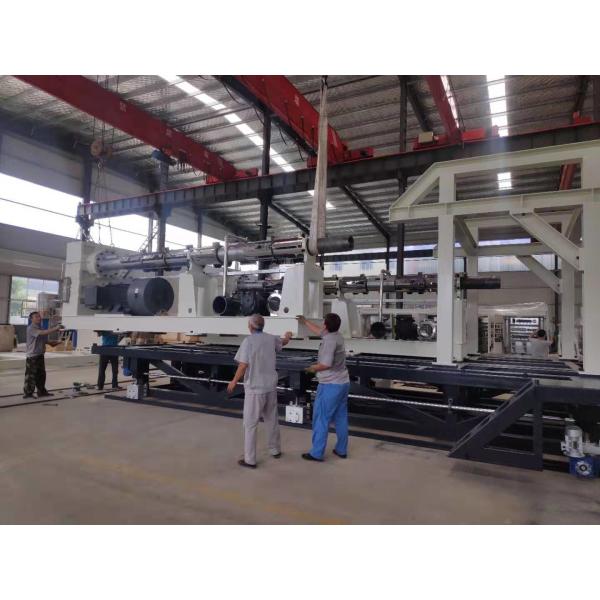

hdpe pe sheet extrusion line pe sheet extruder machine
This line is specially used for producing PP/PE single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.

PART 1 Main technical data:
1. Usual sheet width:
6000mm

2. Usual sheet thickness:
0.15-0.5mm

3. High Efficiency Single Screw Extruder:
Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.

4. T -type die head:
die head material: special mould steel 5CrNiMo,
suitable compression ratio to ensure uniform flow stability.

5. Three-roller calendar::
calendars material: alloy steel, chromed on the surafce.
According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

6. Cooling frame:
According to product specifications, configurations with different specifications of the stainless steel cooling roller

7. Edge cutting devices:Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.

8. Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable

9.Twin position coiler:
torque motor control with length preseting devices
