PC / PMMA PP Sheet Extrusion Line , Low Noise Plastic Board Making Machine
PC / PMMA PP Sheet Extrusion Line , Low Noise Plastic Board Making Machine
PC / PMMA PP Sheet Extrusion Line , Low Noise Plastic Board Making Machine
PC / PMMA PP Sheet Extrusion Line , Low Noise Plastic Board Making Machine
Specifications
Brand Name :
Xinkeda
Model Number :
LMSB90/33, 120/33
Certification :
ISO CE SGS GOST
Place of Origin :
Qingdao of China
MOQ :
1set
Price :
FOB US $80,000-100,000/ Set
Payment Terms :
L/C, T/T
Supply Ability :
50set/year
Delivery Time :
60-80days
Packaging Details :
Wooden Cases and Wooden Pallet
Condition :
New
Voltage :
380V,50Hz,3phase or According to Customers Need
Power(W) :
250kw
Max Capacity(Kg/H) :
500kg/H
Sheet Width :
300-1500mm
Sheet Thickness :
0.15-3mm
Dimension(L*W*H) :
35m*2.5m*3m
Sheet Application :
Packing, Thermoforming, Stationery etc
Description

PP/PE/PS/ABS/PC/PMMA Plastic Sheet/board making machine

PART 1 INTRODUCTION:

This line is specially used for producing PP/PE/HIPS/PET/PC/ABS/EVA/EVAOH/PMMA single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
PART 2: SHEET SPCIFICATIONS:
1. Usual sheet width: 700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual sheet thickness: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
PART 3: FEATURES OF THIS LINE
1. Extruder:
Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.
2.T -type die head:
suitable compression ratio to ensure uniform flow stability.

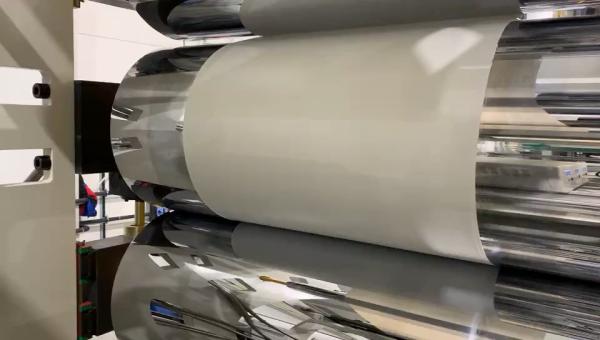

3. Three-roller calendar:
According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.
4. Cooling frame:
According to product specifications, configurations with different specifications of the stainless steel cooling roller
5. Edge-cutting devices:
Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.
6. Cut off machine:
Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.

Specification:
Screw diameter 90mm-150mm
L/D 33:1/38:1
Motor Power 75-450kw
Sheet thickness 0.2-2mm
Sheet width 400mm-8000mm
Capacity 150-1500kg/h

PC / PMMA PP Sheet Extrusion Line , Low Noise Plastic Board Making Machine

PC / PMMA PP Sheet Extrusion Line , Low Noise Plastic Board Making Machine

We are a factory mainly export plastic sheet extrusion line .We are specialized in this filed for many years.We can provide the better quality and we have agents in many countries.Until now, we have cooperated with many big customers from USA, Europe , Korea, Russia, India and so on. If you have any questions , please contact me for free.And we welcome you to visit our factory which located in Qingdao of Shandong province.Looking forward to your inquire.

Best regards

Contact:Maggie

Whatsapp/Skype/Viber/Wechat: 0086 150 53256363

Email: Maggie@intermedios-cn.com
