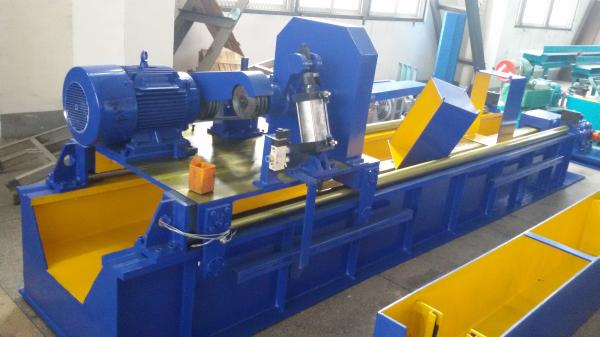

0.5-1.8mm Square HF Welded Tube Mill Production Line
0.5-1.8mm Square HF Welded Tube Mill Production Line
0.5-1.8mm Square HF Welded Tube Mill Production Line
0.5-1.8mm Square HF Welded Tube Mill Production Line
Specifications
Model Number :
MA 32 High-frequency Welding Pipe Mill
Place of Origin :
Wuxi, Jiangsu
MOQ :
1 SET
Payment Terms :
T/T, L/C
Delivery Time :
90 working days
Packaging Details :
Wrapping films and wooden cases
Brand Name :
MAZS
Certification :
CE,ISO
Price :
USD
Supply Ability :
30sets per year
Raw material :
Hot rolling or cold rolling steel
Coil width :
60~160mm
Coil outer diameter :
Max. Φ1600mm
Coil inner diameter :
Φ508mm
Coil weight :
Max.2.5T
Material thickness :
0.8~2.5mm for Round pipes
Round pipe size :
Φ20mm~Φ50mm * 0.8mm~2.5mm
Square pipe size :
16×16x1.5mm, 20x20x1.8mm, 25x25x2mm, 30x30x2mm, 40x40x2mm
Rectangle pipe size :
25x50x2mm
Producing length :
4~10m
Producing speed :
30~80m/min
Description

1. Descriptions of goods:

MA-32 HF Welded Pipe Making Machine for square rectangular and others special non-standard forming products

2. Specification:

Material to be processed: Carbon Steel, Cold Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon

Type of Production: Round Tubes, Square, Square and Rectangular Hollow Sections

Round Tube Outside Diameter: Min 114, Max 273mm

Square Hollow Section: Min 130 x130, Max 215 x 215 mm

Rectangular Hollow Section: Min 80x 100, Max140x 200 mm

Tube Thickness: Min 3.0mm Max 10.0 mm (X70≤8mm)

Forming Line Speed: Max 45m/min

(Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)

Tube Cut Length: Min 4 Max 12 meter

Length Accuracy: ± 3mm

3. Finished Pipe Specifications:

(1) Pipe Diameter φ10～φ38mm

(2) Wall Thickness 0.5～2.5mm for round pipes; 0.5-1.8mm for square/rectangular pipes.

(3) Length of Cutting 4～9m

(4) Length-cutting precision:+/-3mm

Forming Speed

20～100m/min

Total Power Capacity

Approx. 400KW

Compressed Air:

(1) Flow Rate: 6m3/min

(2) Pressure: 5～7kg/ cm2

Water Supply for Machine Set

(1) Flow Rate: 20T/h～30 T/h

(2) Reservation Pool Capacity: 30m3

Workshop Arrangement:

Width of Workshop: 6m

Length of Workshop: 50m

Height of Workshop (from Ceiling Trail to Floor): ≥5 m

4. Technological Process:

Uncoiling → Cutting and Welding → Cage accumulator →(Feeding,Forming),(Seam guide,HF welding,Squeezing,Deburring),Water cooling, Sizing, Rough Straightening → STD Flying Saw →Checking and Collecting →packing→Storage

0.5-1.8mm Square HF Welded Tube Mill Production Line

0.5-1.8mm Square HF Welded Tube Mill Production Line0.5-1.8mm Square HF Welded Tube Mill Production Line
