Six Roller Stainless Steel Reversing Cold Rolling Mill
Six Roller Stainless Steel Reversing Cold Rolling Mill
Specifications
Model Number :
MA Six-roller Reversible Cold Rolling Mill Stainless steel
Place of Origin :
Wuxi, Jiangsu
MOQ :
1 SET
Payment Terms :
T/T, L/C
Delivery Time :
5 months
Packaging Details :
Wrapping films and wooden cases
Production description :
cold rolling mill
Raw material :
Stainless steel 201, 304, 430
Input Thickness :
2.5mm
Output Thickness :
min. 0.1mm
Rolling pressure :
P≤6000KN
Main motor :
DC 550KW
Coiling strength :
T≤120KN
Rolling speed :
V≤100m/min
Description

1. Product description

MA Six roller Reversible Cold Rolling Mill Stainless steel Electric motor press-down

2. Introduction

The six-high cold rolling mill is more suitable for carbon steel, stainless steel and special steel coil rolling; even the steel with large width and small finished thickness is available too.

3. Process flow: (for reference)

Six Roller Stainless Steel Reversing Cold Rolling Mill

Decoiler with coil loading car → Coil end straightener → Left recoiler with coil discharging car → Work platform before rolling mill → 6-hi cold rolling mill → Work platform after rolling mill → Right recoiler with coil discharging car

4. Main parameters

  • Electric motor press-down: YZ model, 15KW×2

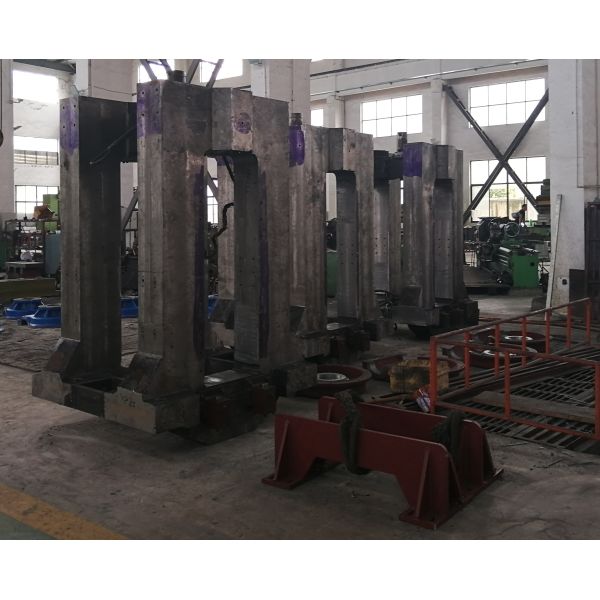

  • Two stands: section size of each column 340×400mm, Material ZG35
  • Work rollers: work roller diameter × working surface width Φ120X850mm, Material 9Cr2Mo, with roller bending device.
  • Middle rollers: Φ250X850mm, material 9Cr2Mo.
  • Support rollers: diameter × working surface width Φ580X850mm, with FC rolling bearing.
  • Main motor: DC 550KW
  • Recoiling motor: 225KW
  • Electric control
  • Eurotherm 590 speed adjusting with PLC


5. Technical Parameters (options):

Type Φ150/Φ175/Φ460×450 Φ150/Φ175/Φ500×500 Φ165/Φ200/Φ630×650 Φ165/Φ250/Φ680×800
Input thickness(mm) 1.0-2.5 1.0-2.5 1.0-3.5 1.0-3.5
Finished thickness(mm) 0.15-1.2 0.15-1.5 0.18-2.0 0.2-2.0
Coil (mm) 250-350 300-400 400-500 550-700
Drive Work roller Work roller Work roller Work roller
Rolling force(KN) 2800 3500 5000 5500
Press-down motor hydraulic motor hydraulic motor hydraulic motor hydraulic
Rolling speed(m/s) 3.5 4-6.5 3.5 4-8 3.5 4-5 3.5 4-5
Rolling material Normal carbon steel Normal carbon steel Stainless steel or carbon steel Stainless steel

Type Φ170/Φ300/Φ800×900 Φ300/Φ370/Φ950×1050 Φ330/Φ370/Φ1050×1250 Φ400/Φ450/Φ1250×1450
Input thickness(mm) 2.0-4.0 2.0-4.0 2.0-4.0 2.0-4.0
Finished thickness(mm) 0.2-2.0 0.2-2.0 0.2-2.0 0.2-2.0
Coil (mm) 700-900 650-950 700-1100 900-1250
Drive Work roller Work roller Work roller Work roller
Rolling force(KN) 6500 10000 12000 15000
Press-down motor hydraulic hydraulic hydraulic hydraulic
Rolling speed(m/s) 3.5 4-5 10 8-12 8-16
Rolling material carbon steel or stainless steel Normal carbon steel Normal carbon steel Normal carbon steel

Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.

Six Roller Stainless Steel Reversing Cold Rolling Mill

6. Packaging

Six Roller Stainless Steel Reversing Cold Rolling Mill

Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.

7. Warranty term: 12 months (excluding easy-broken parts)

8. Our service and features:

8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.

8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.

8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
