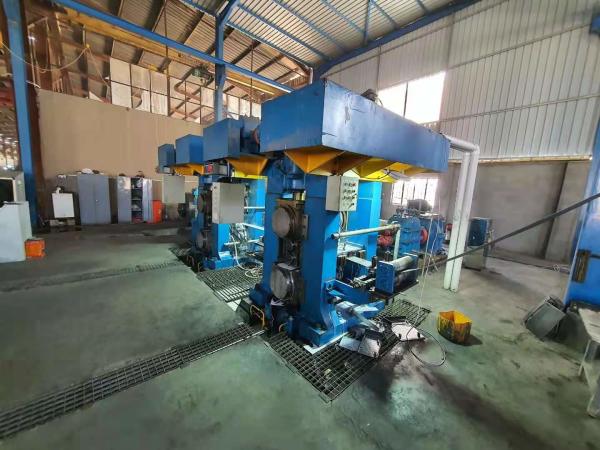

MA Φ250 × 500 Steel cold Rolling mill equipped with hydraulic expansion cylinder for Coiler
MA Φ250 × 500 Steel cold Rolling mill equipped with hydraulic expansion cylinder for Coiler
MA Φ250 × 500 Steel cold Rolling mill equipped with hydraulic expansion cylinder for Coiler
MA Φ250 × 500 Steel cold Rolling mill equipped with hydraulic expansion cylinder for Coiler
Specifications
Brand Name :
MAZS
Model Number :
MA Φ250 × 500
Certification :
CE,ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
USD
Payment Terms :
T/T or 100% at sight LC or 30% deposit and 70% before shipping.
Supply Ability :
20sets per year
Delivery Time :
120-150 working days
Packaging Details :
Machine will be fixed inside container by steel wire(Export standard sea package)
Description of goods :
Cold Rolling Mill
Input thickness (mm) :
≤8
Output thickness (mm) :
≥0.4
Strip (mm) :
370
Rolling pressure (T) :
120
Rolling speed (m/min) :
13
Main motor (KW) :
55
Description

1. Description of goods:

MA Φ250 × 500 Steel cold Rolling mill equipped with hydraulic expansion cylinder for Coiler

2. Introduction:
The 2-Hi cold rolling mill, one of metal coil cold rolling mill, is made from good quality raw material. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill. Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC.

3. Features:
1. The 2-Hi cold rolling mill is a kind of portable type.
2. One stand and two frames are made from fabricated steel plates.
3. The number 2 Rolls on this cold rolling mill are made of chilled material.
4. It is equipped with heavy duty reduction gear.
5. The screw down system is manual.
6. We adopt one number C.I. casting flywheels.

4. Technical Parameters of 2-Hi Cold Rolling Mill:

Type Φ120 × 160 Φ150 × 220 Φ175 × 400 Φ250 × 500 Φ320 × 600 Φ400 × 800 Φ500 × 1000
Input thickness (mm) ≤4 ≤4 ≤4 ≤8 ≤10 ≤20 ≤30
Output thickness (mm) 0.15 ≥0.35 ≥0.35 ≥0.4 ≥0.4 ≥0.5 ≥0.6
Strip (mm) 10-100 ≤150 300 370 450 ≤600 800
Rolling pressure (T) 65 100 100 120 150 160 260
Rolling speed (m/min) 12 13 13 13 13-15 13-15 15-25
Main motor (KW) 22 30 37 55 75 155 160
Press-down motor (KW) 1.5 2.2 2.2 3 4 4 7.5
Press-down speed (mm/s) 0.09 0.09 0.09 0.09 0.09 0.12 0.12
Speed reducer JZQ550 JZQ750 JZQ750 JZQ750 JZQ1000 JZQ115 JZQ130
Weight (T) 4.8 5.8 7 12.8 19 40 50

MA Φ250 × 500 Steel cold Rolling mill equipped with hydraulic expansion cylinder for CoilerMA Φ250 × 500 Steel cold Rolling mill equipped with hydraulic expansion cylinder for Coiler
