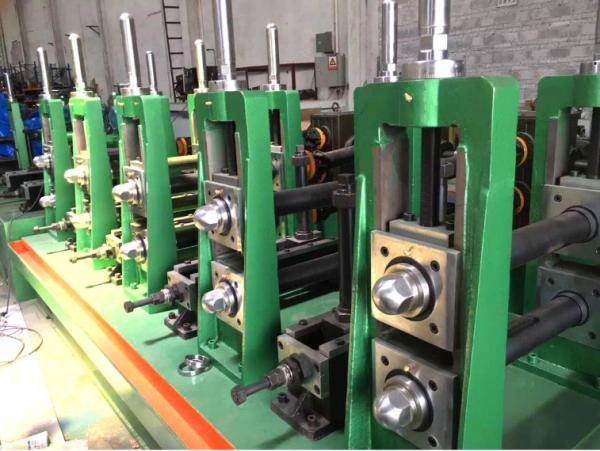

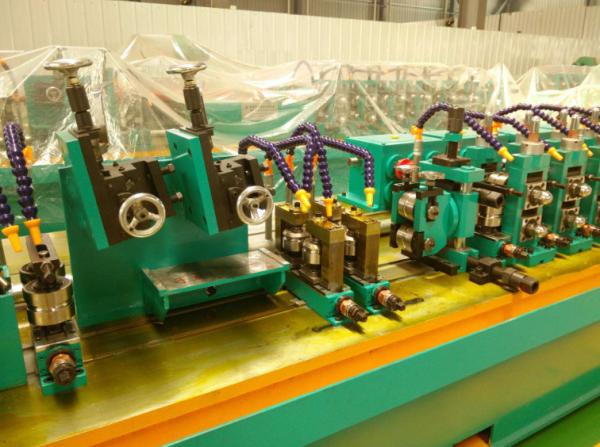

MA-Φ219 High Frequency Welded Tube Mill 0.5-2.0mm Wall Thickness
MA-Φ219 High Frequency Welded Tube Mill 0.5-2.0mm Wall Thickness
MA-Φ219 High Frequency Welded Tube Mill 0.5-2.0mm Wall Thickness
MA-Φ219 High Frequency Welded Tube Mill 0.5-2.0mm Wall Thickness
Specifications
Brand Name :
MAZS
Model Number :
MA-Φ219
Certification :
CE,ISO
Place of Origin :
Wuxi, Jiangsu
MOQ :
1 SET
Price :
USD
Payment Terms :
T/T, L/C
Supply Ability :
20sets per year
Delivery Time :
90 working days
Packaging Details :
Wrapping films and wooden cases
Raw material :
Cold Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon
Round Tube Outside Diameter :
Diameter: Min 114, Max 219mm
Square Hollow Section :
Min 90 x90, Max 170x170 mm
Rectangular Hollow Section :
Min 80x 100, Max140x 200 mm
Tube Thickness :
Min 2.2, Max 8.0 mm
Forming Line Speed :
Max 45m/min (Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
Voltage :
380V 50Hz 3phases or ordered by the user
Description

1. Description of goods:

MA-Φ219 High Frequency Welded Pipe Mill is used for making high quality round, square and rectangular pipes walls with thickness of 0.5~2.0mm.

Through optimization design, best materials choice, and accurately fabrication and rolls, the wohle line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.

2. Specification complete line:

Material to be processed: carbon steel, cold hot rolled pre slit strip coils of weldable grade with max. 0.2% carbon

No Descriptions Technical parameter Remark
1 Round Tube Outside Diameter Min 114, Max 219mm
2 Square Hollow Section Min 90 x90, Max 170x170 mm
3 Rectangular Hollow Section Min 80x 100, Max140x 200 mm
4 Tube Thickness Min 2.2, Max 8.0 mm
5 Forming Line Speed Max 45m/min (Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
6 Tube Cut Length Min 4 Max 12 meter
7 Length Accuracy ± 3mm

3. Main features:

1. We can make and design all kinds of specific machine according to customer's requests.
2. This equipment is very perfect and durable.
3. This kind of machine has the best quality and the best price. It can measure accurately and is easy to operate.
4. We can design and manufacture the specific machine according to the customers' requirements and we could provide technical guidance, production, installation, debugging and maintenance service to all customers.
5. Our products have been exported to many regions and won high reputation for high quality and reasonable price.

4. The whole line layout drawing as reference:

MA-Φ219 High Frequency Welded Tube Mill 0.5-2.0mm Wall Thickness

MA-Φ219 High Frequency Welded Tube Mill 0.5-2.0mm Wall Thickness

MA-Φ219 High Frequency Welded Tube Mill 0.5-2.0mm Wall Thickness
