0.1um Flat Sheet MBR 620 X 2250 X 2200mm Sludge Treatment 0.1um Membrane Bioreactor Process
0.1um Flat Sheet MBR 620 X 2250 X 2200mm Sludge Treatment 0.1um Membrane Bioreactor Process
0.1um Flat Sheet MBR 620 X 2250 X 2200mm Sludge Treatment 0.1um Membrane Bioreactor Process
0.1um Flat Sheet MBR 620 X 2250 X 2200mm Sludge Treatment 0.1um Membrane Bioreactor Process
Specifications
Brand Name :
CNKHONG
Model Number :
KH-MBRP-80x150
Place of Origin :
China
MOQ :
50pieces
Price :
USD24/piece
Payment Terms :
L/C, T/T
Supply Ability :
200piece/day
Packaging Details :
Wooden box
Material :
PVDF
Size :
620x2250x2200mm
Weight :
900kg
Water Flux :
60-80tons/day
SS :
<1
Rack :
SS304
Description

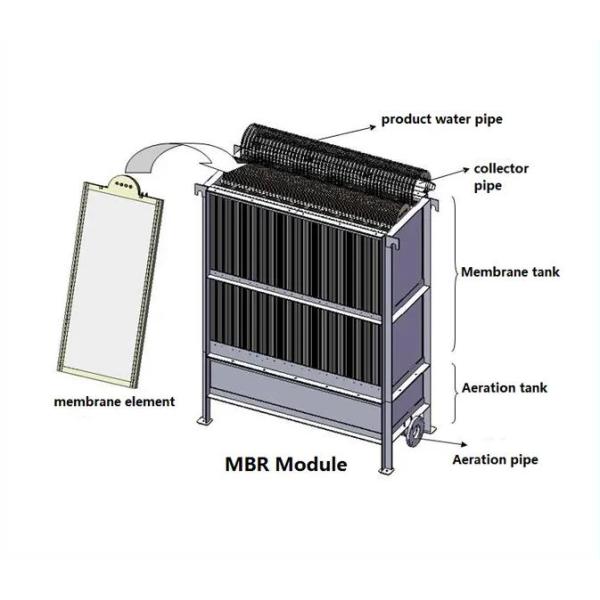

Flat MBR for Sludge Treatment with PVDF material 0.1um pore size

Flat Sheet MBR Membrane series: In the condition of high pressure, high hydrophilia and high flux, more improvements are made on membrane's polluting resistance and longer lifetime. The mbr membrane module elements' compact structure design occupies much less space, with easy installation.
The mbr membrane is used for municipal and industrial waste water treatment. It solves problem of the leakage of SS compared with traditional activated sludge sedimentation process, and prevent microorganism like colibacillus and cryptosporidium from water output.

Flat sheet membrane and module outstanding advantages:

(1) Not easy to pollution, low frequency for the membrane cleaning, no need to backwash flat sheet membrane equipment when operation, easy operation for the cleaning;

(2) Immersion setting, stable placed in the reaction tank;

(3) Output water in low pressure (sucking or gravity);

(4) Even aeration effect, small aeration flow rate;

(5) Stable operation in long time working under the condition of TSS 15000 mg/L;

(6) Low energy consumption operation;

(7) Membrane sheet can be single replaced;

(8) No risk of rupture of membrane sheet, and guarantee excellent water quality.

Product Description

Membrane Bioreactor MBR sheet (pcs.)

Items Standard type Long type
Model KH-MBRP-80-PVDF KH-MBRP-150-PVDF
Size (LxWxT) 1000×490×7 1850×510×7
Membrane effective area (m²) 0.8 1.5
Weight (kg) 3 4.5
Permeate flux [L/ (pc.d)] 320-480 600-900
Membrane material PVDF PVDF
Membrane pore size (μm) 0.1 0.1
Plate material ABS ABS
Air flow rate [L/(min.pc)] ≥ 10 ≥ 12
pH 2 ~ 13 2 ~ 13
Output turbidity (NTU) < 1.0 < 1.0
Output SS (mg/1) ≤ 1.0 ≤ 1.0
Chemical cleaning ~ 5,000mg/1 NaCIO ~ 5,000mg/1 NaCIO


MBR rack can be customized by your water flux.

0.1um Flat Sheet MBR 620 X 2250 X 2200mm Sludge Treatment 0.1um Membrane Bioreactor Process

0.1um Flat Sheet MBR 620 X 2250 X 2200mm Sludge Treatment 0.1um Membrane Bioreactor Process

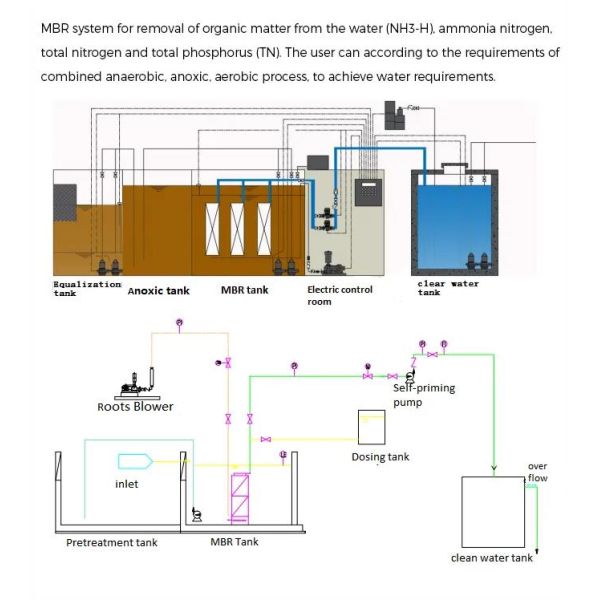

Application
