IP30 Dust-Proof And Anti-Corrosion Multimedia Db Box High-Quality Durable Socket Box

Product Characteristics

1. Box to be available for powder coated steel, 0.8mm for DMT-T, 1.0mm for DMT-G.

2. Cover to be available for ABS (DMT-G) and HIPS material (DMT-T).

3. In case golden color needed, only HIPS available.

4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.

5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).

Attention Points

1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.

2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.

3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.

4. It is recommended to install the support panel after the wall is puttying.

Plastic parts test result

1. Incandescent wire test at 650℃.

2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.

3. Xenon arc lamp test ≥250hrs.

4. Hinge operation test ≥10,000 times no break.

Specifications of DMT-T/G series, Flush

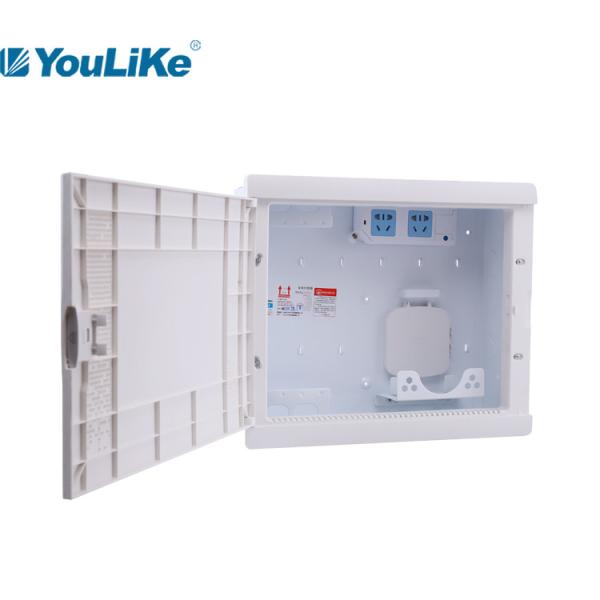

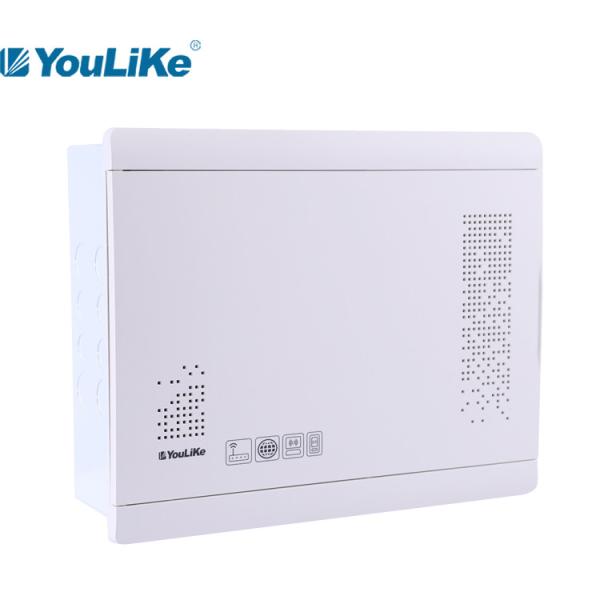

Product Details Demonstration

Application

DMT-T/G series is used for indoor TV, telephone and network distribution for house/apartment usage.

1. ONU mounting bracket is powder coated steel.

2. Optical cable tray is used for optical cable wiring isolation from other components.

3. PDU is as per CCC standard and optionla for clients in case it is unworkable.

4. Reinforced structure design to allow higher tensile strength of plastic cover.

5. Module mounting stand is plastic and modules to be fix by screws.

Packing

Neutral carton packing Our style carton

Remarks: #1. Both customized color box or neutral box is available.

#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.

#3. Customized logo print on product is available with no additional charge.
