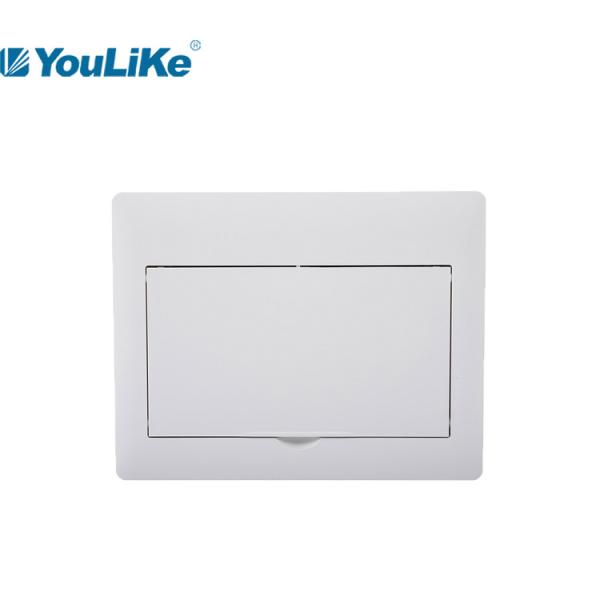

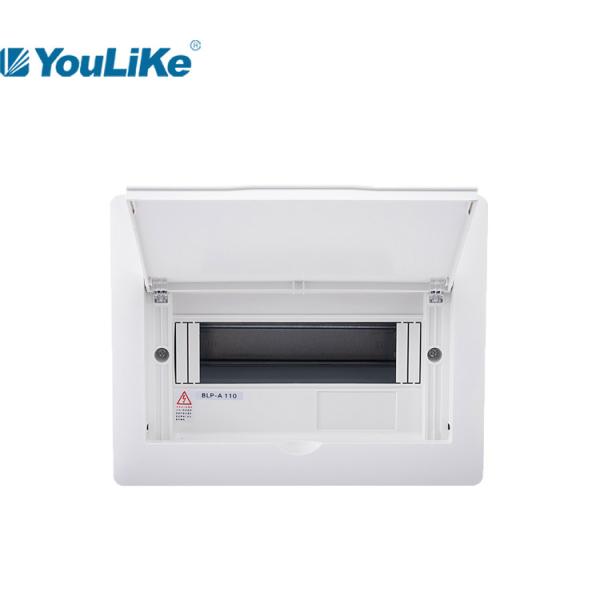

400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail
400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail
400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail
400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail
400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail
400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail
Specifications
Brand Name :
YOULIKE
Model Number :
BL flush
Certification :
CCC
Place of Origin :
Guangdong, China
MOQ :
100pcs
Price :
5-50USD
Payment Terms :
L/C, D/P, T/T
Supply Ability :
400000pcs/month
Delivery Time :
10-20 working days
Packaging Details :
in color box or neutral carton
Box material :
0.8&1.0mm powder coated steel
Cover frame material :
HIPS
Door material :
HIPS/PC
Rated Voltage :
400V+/-20%
Rated current :
55A/ 63A
Protection Level :
IP40
Description

BL 10way Flush Mount White Door Panel Builder Models Power Distribution Box

Product Characteristics

1. Box to be available for powder coated steel, 0.8mm for single row, 1.0mm for 2rows.

2. Cover frame to be available for HIPS material.

3. Door to be available for both HIPS (for white door) and PC material (for transparent door).

4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.

5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).

Plastic parts test result

1. Incandescent wire test at 650℃.

2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.

3. Xenon arc lamp test ≥250hrs.

4. Hinge operation test ≥10,000 times no break.

Specifications of BL series, Flush

Model Way Cover size Box size

Terminals

 Knockouts
L*H*T (mm) L*W*D*T(mm) size(mm) PE N one side qty
BLP-A 110 10way 268*210*17.5(26) 246*192*80*0.8 6*10.4 6 5 5
BLP-A 113 13way 322*210*17.5(26) 300*192*80*0.8 6*10.4 6 5 6
BLP-A 116 16way 376*210*17.5(26) 354*192*80*0.8 6*10.4 8 7 7
BLP-A 118 18way 412*210*17.5(26) 390*192*80*0.8 6*10.4 11 10 8
BLP-A 121 21way 466*210*17.5(26) 444*192*80*0.8 6*10.4 11 10 10
BLP-A 124 24way 520*250*17.5(26.5) 498*230*90*1.0 6*10.4 11 10 8
BLP-A 226 26way 322*405*17.5(28.3) 300*380*90*1.0 6*10.4 13 12 6
BLP-A 232 32way 375*405*17.5(28.3) 354*380*90*1.0 6*10.4 13 12 7
BLP-A 242 42way 466*405*17.5(28.3) 444*380*90*1.0 6*10.4 18 15 10

Product Details Demonstration

BL series is used for indoor power distribution mainly for lighting control.

400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail

#1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.

#2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.

#3. Stainless earthing bolts with warning label.

#4. Reinforced structure design to allow higher tensile strength of plastic cover.

#5. Metal metal spring plate to provide extra service life of plastic hinges.

Application

Mainly used for indoor lighting control for residential and commercial buildings.

Packing

Model Carton size Volume/ctn Pcs/ctn Calculated weight(kgs/ctn)
mm m³ net weight gross weight
BLP-A 110 525*290*455 0.0693 10 14.66
BLP-A 113 525*345*455 0.0825 10 17.10
BLP-A 116 525*235*405 0.0450 5 9.25
BLP-A 118 525*235*440 0.0543 5 10.20
BLP-A 121 525*235*495 0.0611 5 11.65
BLP-A 124 545*240*280 0.0367 2 6.70
BLP-A 226 460*135*385 0.0239 1 3.60
BLP-A 232 455*160*425 0.0310 1 4.05
BLP-A 242 510*160*460 0.0376 1 4.75

400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail400V HIPS Cover 10 Way MCB Box Flame Retardant With Din Rail

Neutral carton packing Our style carton

Remarks: #1. Both customized color box or neutral box is available.

#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.

#3. Customized logo print on product is available with no additional charge.
