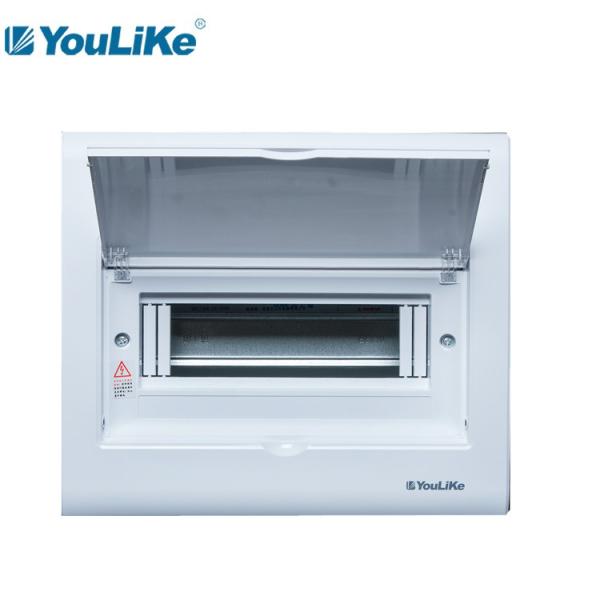

White Flush Mount 10 Way MCB Box , PC Distribution Box Anti Deformation
White Flush Mount 10 Way MCB Box , PC Distribution Box Anti Deformation
White Flush Mount 10 Way MCB Box , PC Distribution Box Anti Deformation
White Flush Mount 10 Way MCB Box , PC Distribution Box Anti Deformation
White Flush Mount 10 Way MCB Box , PC Distribution Box Anti Deformation
White Flush Mount 10 Way MCB Box , PC Distribution Box Anti Deformation
Specifications
Brand Name :
YOULIKE
Model Number :
M3 flush
Certification :
CCC, CE
Place of Origin :
Guangdong, China
MOQ :
100pcs
Price :
5-50USD
Payment Terms :
L/C, D/P, T/T
Supply Ability :
400000pcs/month
Delivery Time :
10-20 working days
Packaging Details :
in color box or neutral carton
Product name :
10 way distribution box
Anti-tarnishing :
level 4
Hinge operation :
10000 times
Way dimension :
18mm
Mounting type :
flush mounted
Certificate :
CE, CCC
Box material :
1.0&1.2mm powder coated steel
Door material :
ABS
Description

Protection Level 40 PC Cover 10Ways Distribution Box Indoor Flush Mount MCB Box

Product Advantage

1. Strong box for durability.

2. Curved panel, matte process.

3. Rail btacket to prevent deformation.

4. High-quality copper bar, sturdy and durable.

5. Optimize the details to meet your needs.

Installation Precautions

1. When the bottom box is embedded with concrete for on-site pouring, the surrounding support shall be made inside the bottom box to prevent the bottom box from deformation.

2. The maximum bearing torque of the earthing bolt on the bottom box is 18N. M.

3. It is recommended to install the support surface after the wall is puttying.

4. The bracket is attached to the wall for installation.

5. The installation of the box must be grounded, and the box is not equipped with earthing.

Plastic Parts Test Result

1. Incandescent wire test at 650℃.

2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.

3. Xenon arc lamp test ≥250hrs.

4. Hinge operation test ≥10,000 times no break.

Specifications of M3 series, Flush

Model Way Cover size Box size

Terminals

 Knockouts
L*H*T (mm) L*W*D*T(mm) size(mm) PE N one side qty

M3-A 110

 10way 278×240×20.0(29.0) 256×210×90×1.0 6×10.4 8 9 5

M3-A 112

 12way 316×240×20.0(29.0) 292×210×90×1.0 6×10.4 8 9 6

M3-A 114

 14way 352×240×20.0(29.0) 328×210×90×1.0 6×10.4 8 9 7

M3-A 116

 16way 388×252×20.0(29.0) 364×210×90×1.0 6×10.4 11 12 7

M3-A 118

 18way 424×252×20.0(29.0) 400×210×90×1.0 6×10.4 11 12 10

M3-A 120

 20way 460×252×20.0(29.0) 436×210×90×1.0 6×10.4 11 12 10

M3-A 224

 24way 316×415×22.3(31.3) 292×380×90×1.0 6.4×12 12 13 8

M3-A 232

 32way 388×415×22.3(31.3) 364×380×90×1.0 6.4×12 14 15 10

M3-A 240

 40way 460×415×22.3(31.3) 436×380×90×1.0 6.4×12 17 18 12

Company Overview Demonstration

White Flush Mount 10 Way MCB Box , PC Distribution Box Anti Deformation

Application

M3 series mainly used for indoor lighting control for residential and commercial buildings.

1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.

2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6% composition.

3. Stainless earthing bolts with warning label.

4. Reinforced structure design to allow higher tensile strength of plastic cover.

5. Plastic wire clamps is equiped below the din rail.

Packing

Model Carton size Volume/ctn Pcs/ctn Calculated weight(kgs/ctn)
mm m³ net weight gross weight
M3-A 110 595×300×515 0.0919 10 17.10
M3-A 112 595×340×515 0.1042 10 9.25
M3-A 114 595×260×380 0.0588 5 10.20
M3-A 116 595×275×420 0.0687 5 11.65
M3-A 118 595×275×455 0.0744 5 12.40
M3-A 120 595×275×490 0.0801 5 5.40
M3-A 224 465×155×375 0.0270 1 6.70
M3-A 232 465×155×445 0.0327 1 3.60
M3-A 240 465×155×520 0.0375 1 4.05

White Flush Mount 10 Way MCB Box , PC Distribution Box Anti DeformationWhite Flush Mount 10 Way MCB Box , PC Distribution Box Anti Deformation

Neutral carton packing Our style carton

Remarks: #1. Both customized color box or neutral box is available.

#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.

#3. Customized logo print on product is available with no additional charge.
