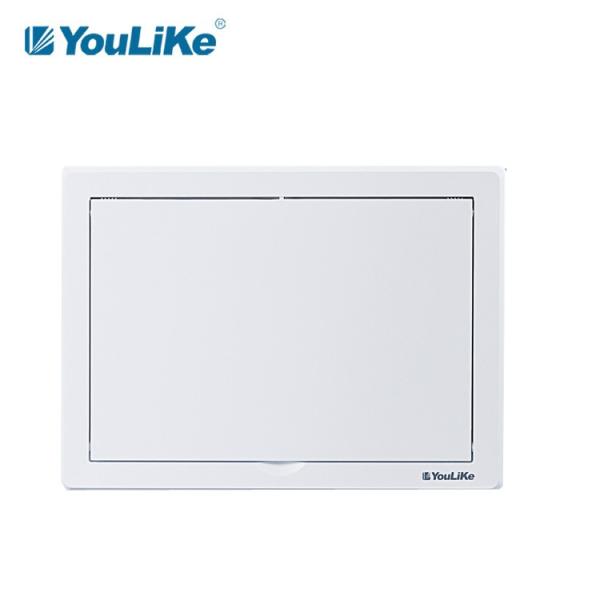

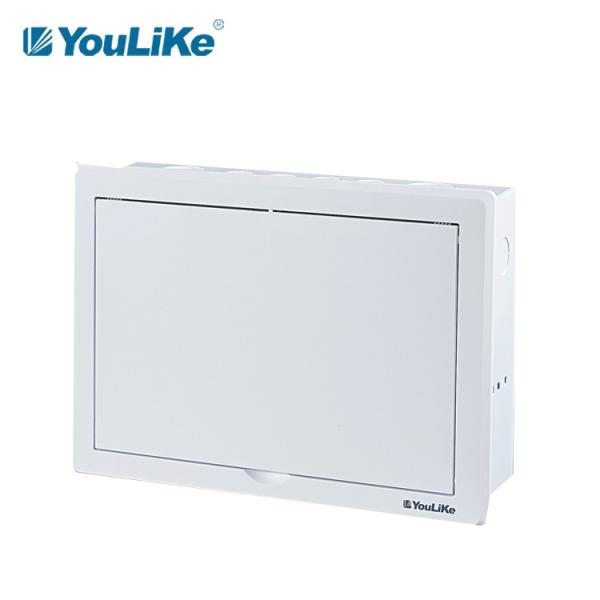

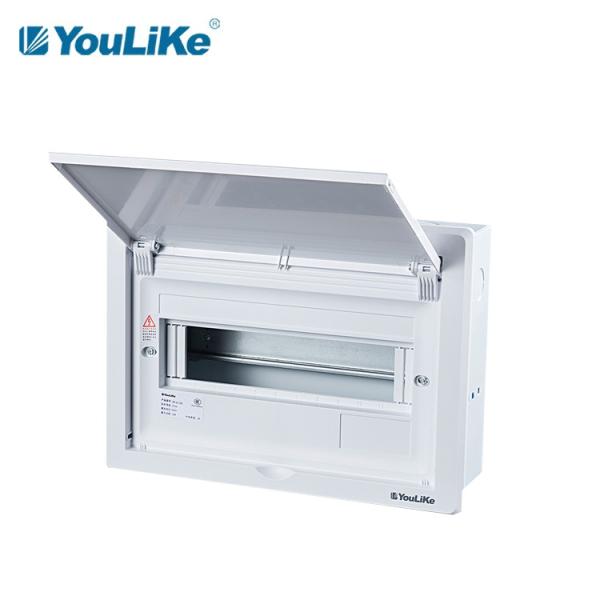

12 Way Electrical DB Box Metal Base Power Distribution Box For MCB
12 Way Electrical DB Box Metal Base Power Distribution Box For MCB
12 Way Electrical DB Box Metal Base Power Distribution Box For MCB
12 Way Electrical DB Box Metal Base Power Distribution Box For MCB
12 Way Electrical DB Box Metal Base Power Distribution Box For MCB
12 Way Electrical DB Box Metal Base Power Distribution Box For MCB
Specifications
Brand Name :
YOULIKE
Model Number :
P3 flush
Certification :
CCC, CE
Place of Origin :
Guangdong, China
MOQ :
100pcs
Price :
5-50USD
Payment Terms :
L/C, D/P, T/T
Supply Ability :
400000pcs/month
Delivery Time :
10-20 working days
Packaging Details :
in color box or neutral carton
Product name :
flush mounted electrical distribution board
Environment temperature :
-25℃～50℃
Air relative humidity :
＜90%
warranty :
2 years
Hinge operation test :
10000times
Protection level :
IP40
Mounting type :
flush mounted
Box material :
1.0&1.2mm powder coated steel
Door material :
HIPS
Description

12 Way Electrical DB Box Metal Base Power Distribution Box For MCB

Product Characteristics

1. Box to be available for powder coated steel, with 1.0mm thickness.
2. Cover frame to be available for HIPS material.
3. Door to be available for HIPS material( color white).
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. Protection level reaches IP40.

Plastic Parts Test Result

1. Incandescent wire test at 650℃.

2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.

3. Xenon arc lamp test ≥250hrs.

4. Hinge operation test ≥10,000 times no break.

Product Parameters

Series P3-A112
Ways 12way
Color white
Material powder coated steel + HIPS
Base Box Size 292*210*90*1.0mm
Cover Size 312*230*10(27.5)mm
Approval CE,CCC
Accessories din rail + terminals
Installation Type concealed
Warranty 2 years
Package in color box or neutral carton
OEM accept

Product Details

12 Way Electrical DB Box Metal Base Power Distribution Box For MCB12 Way Electrical DB Box Metal Base Power Distribution Box For MCB

About Us

1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.

2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.

3. It has served 1350 leading real estate companies and 1600 panel builder.

4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.

5. After 16 years of development and customer support, it has also gained a certain reputation.

12 Way Electrical DB Box Metal Base Power Distribution Box For MCB

Warehouse Demonstration

12 Way Electrical DB Box Metal Base Power Distribution Box For MCB

Certifications

12 Way Electrical DB Box Metal Base Power Distribution Box For MCB

Delivery

12 Way Electrical DB Box Metal Base Power Distribution Box For MCB
