Powder Coated Sheet 10 Way MCB Distribution Board Out Door Power Box

Company profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.

Product Development Orientation
1. Standardized bottom bow installation
2. Standardized equipment factory connection
3. Standardized construction connection
4. Standardized telecom installation

Version comparation

RX-MX-10 RX-MX-11

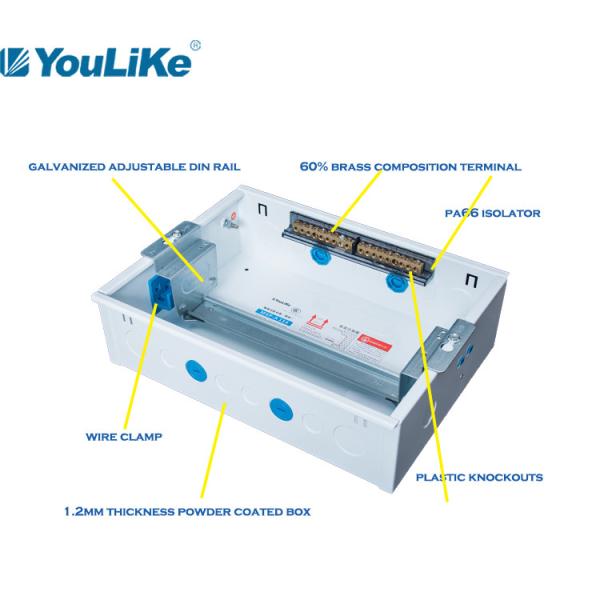

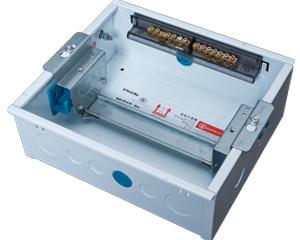

Box body configuration
Folding style: folding outwards.
Removable plate: located at bottom&top of box body, material to be galvanized sheet without powder coating.
Wiring bracket: at left side of box.
Mounting plate: 1pcs per each box, for electical components installation.

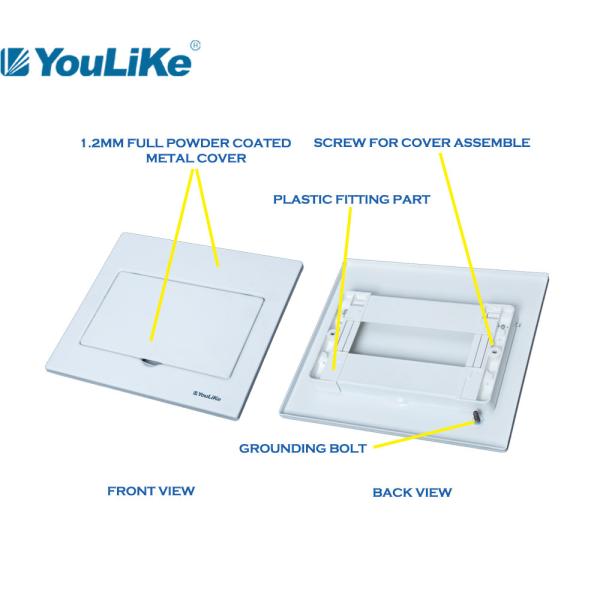

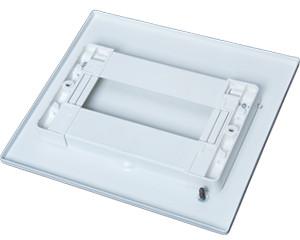

Door configuration
Folding style: dual folding.
Lock: MS401 disc lock, color black, zinc alloy material.
Cushion: for RX-MX-10 ONLY.
Foamed tape: For RX-MX-11 ONLY.
Hinge: HL003, color black, zinc alloy material, surface mounted, operation capacity 180°.

Full set configuration remarks
Wiring stand: normally it comes with cover punching. If no hole punching on cover, no wiring stand equiped.
standard design (100% as per our design, no customization) is equiped with wiring stand (1pcs for box less than 500mm height, 2pcs for box more than 500mm height).
Cable duct cover: 2pcs per each set.

Specification of RX-MX series wall mount distribution box
