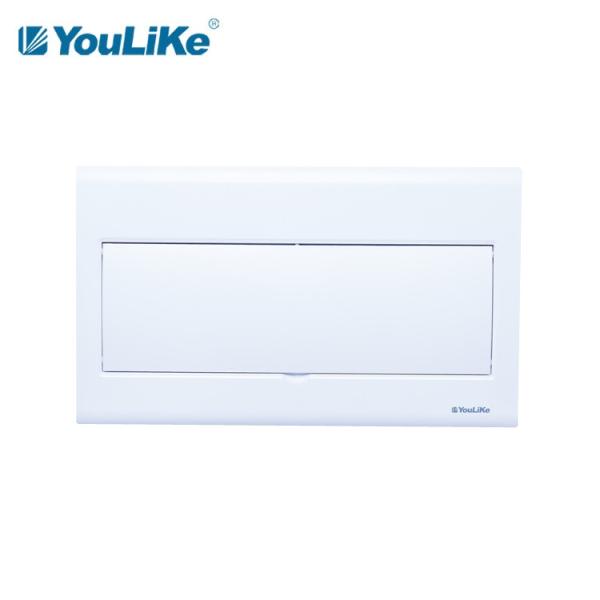

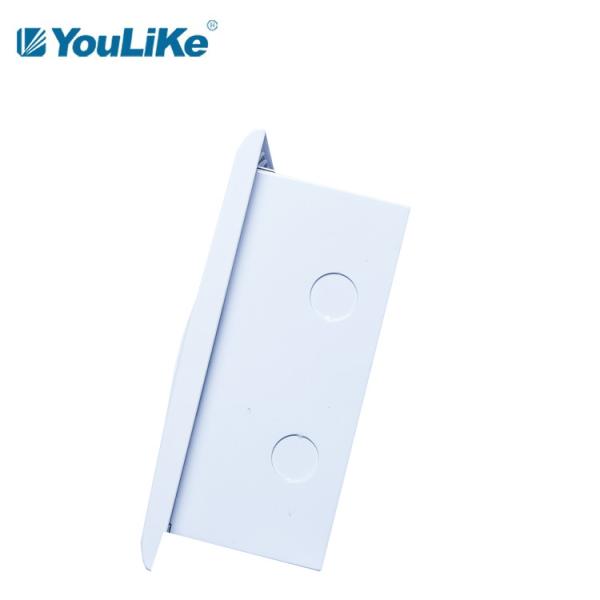

CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted
CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted
CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted
CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted
CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted
CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted
CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted
CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted
Specifications
Brand Name :
YOULIKE
Model Number :
M3 flush
Certification :
CCC, CE
Place of Origin :
Guangdong, China
MOQ :
100pcs
Price :
5-50USD
Payment Terms :
L/C, D/P, T/T
Supply Ability :
400000pcs/month
Delivery Time :
10-20 working days
Packaging Details :
in color box or neutral carton
Product name :
18way flush mounted distribution box
Material :
ABS+PC
Protection level :
IP40
Certificate :
CCC,CE
Hinge :
design patent
Mounting type :
surface mounted
Box material :
1.0&1.2mm powder coated steel
Door material :
ABS
Description

Electric Equipment 18way Flush Mounted Electrical DB Boxes Power Distribution Box

Quality Control

1. Raw matreial

* steel plate from leading steel companies.

* brand new plastic.

* stable supply chain.

2. Components

* safe and secure earth system.

* 57.5% brass composition terminal.

* multi-folded boarder.

* 1,200+ times patent hinge.

* wire clamp.

3. Inspection

* material analysis.

* inspection for individual process.

* semi-final product inspection.

* final product inspection.

Plastic Parts Test Result

1. Incandescent wire test at 650℃.

2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.

3. Xenon arc lamp test ≥250hrs.

4. Hinge operation test ≥10,000 times no break.

Quality Assurance

1. Official quality assurance,two-year warranty.

2. The plate thickness meets the national standard without error.

3. The materials used in the product are all new and high-quality materials,and there are no waste recycled materials.

4. The product has China Compulsory Product Certification number and meets the national CCC certification standard.

Specifications of M3 series, Flush

Model Way Cover size Box size

Terminals

 Knockouts
L*H*T (mm) L*W*D*T(mm) size(mm) PE N one side qty

M3-A 110

 10way 278×240×20.0(29.0) 256×210×90×1.0 6×10.4 8 9 5

M3-A 112

 12way 316×240×20.0(29.0) 292×210×90×1.0 6×10.4 8 9 6

M3-A 114

 14way 352×240×20.0(29.0) 328×210×90×1.0 6×10.4 8 9 7

M3-A 116

 16way 388×252×20.0(29.0) 364×210×90×1.0 6×10.4 11 12 7

M3-A 118

 18way 424×252×20.0(29.0) 400×210×90×1.0 6×10.4 11 12 10

M3-A 120

 20way 460×252×20.0(29.0) 436×210×90×1.0 6×10.4 11 12 10

M3-A 224

 24way 316×415×22.3(31.3) 292×380×90×1.0 6.4×12 12 13 8

M3-A 232

 32way 388×415×22.3(31.3) 364×380×90×1.0 6.4×12 14 15 10

M3-A 240

 40way 460×415×22.3(31.3) 436×380×90×1.0 6.4×12 17 18 12

Warehouse Demonstration

CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted

Packing

Model Carton size Volume/ctn Pcs/ctn Calculated weight(kgs/ctn)
mm m³ net weight gross weight
M3-A 110 595×300×515 0.0919 10 17.10
M3-A 112 595×340×515 0.1042 10 9.25
M3-A 114 595×260×380 0.0588 5 10.20
M3-A 116 595×275×420 0.0687 5 11.65
M3-A 118 595×275×455 0.0744 5 12.40
M3-A 120 595×275×490 0.0801 5 5.40
M3-A 224 465×155×375 0.0270 1 6.70
M3-A 232 465×155×445 0.0327 1 3.60
M3-A 240 465×155×520 0.0375 1 4.05

CCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush MountedCCC Approval Electrical DB Boxes , 18 Way Distribution Box Flush Mounted

Neutral carton packing Our style carton

Remarks: #1. Both customized color box or neutral box is available.

#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.

#3. Customized logo print on product is available with no additional charge.

Application

M3 series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.

1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.

2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.

3. Stainless earthing bolts with warning label.

4. Reinforced structure design to allow higher tensile strength of plastic cover.

5. Metal metal spring plate to provide extra service life of plastic hinges.
