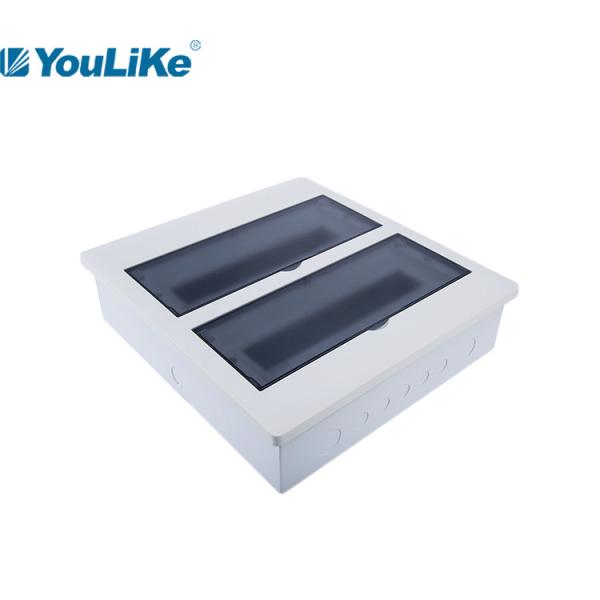

Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor
Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor
Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor
Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor
Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor
Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor
Specifications
Brand Name :
YOULIKE
Model Number :
BL flush
Certification :
CCC
Place of Origin :
Guangdong, China
MOQ :
100pcs
Price :
5-50USD
Payment Terms :
L/C, D/P, T/T
Supply Ability :
400000pcs/month
Delivery Time :
10-20 working days
Packaging Details :
in color box or neutral carton
Item name :
32 way MCB distribution box
Material :
powder coated steel for body ,HIPS for cover
Way dimension :
18mm
Protection level :
IP40
Rated frequency :
50-60HZ
Terminal dimension :
6x10.4mm
Certificates :
CE,CCC
Application :
indoor /outdoor
Description

Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor

Product Specification

1. Base box to be powder coated steel, 0.8mm for 1rows, 1.0mm for 2rows.

2. Cover frame to be HIPS material.

4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.

5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).

6. The protection level reaches IP40

Plastic Parts Test Result

1. Incandescent wire test at 650℃.

2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.

3. Xenon arc lamp test ≥250hrs.

4. Hinge operation test ≥10,000 times no break.

Series BLP-A-232
Color white
Base Box Size 354*380*90*1.0mm
Cover Size 375*405*17.5(28.3)mm
Accessories bolt, din rail, terminal
Application electrical distribution box
OEM offered
Package in color box or neutral carton
Certificate CCC.CE

Specifications of BL series, Flush

Model Way Cover size Box size

Terminals

 Knockouts
L*H*T (mm) L*W*D*T(mm) size(mm) PE N one side qty
BLP-A 110 10way 268*210*17.5(26) 246*192*80*0.8 6*10.4 6 5 5
BLP-A 113 13way 322*210*17.5(26) 300*192*80*0.8 6*10.4 6 5 6
BLP-A 116 16way 376*210*17.5(26) 354*192*80*0.8 6*10.4 8 7 7
BLP-A 118 18way 412*210*17.5(26) 390*192*80*0.8 6*10.4 11 10 8
BLP-A 121 21way 466*210*17.5(26) 444*192*80*0.8 6*10.4 11 10 10
BLP-A 124 24way 520*250*17.5(26.5) 498*230*90*1.0 6*10.4 11 10 8
BLP-A 226 26way 322*405*17.5(28.3) 300*380*90*1.0 6*10.4 13 12 6
BLP-A 232 32way 375*405*17.5(28.3) 354*380*90*1.0 6*10.4 13 12 7
BLP-A 242 42way 466*405*17.5(28.3) 444*380*90*1.0 6*10.4 18 15 10

Product Details

Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker IndoorSingle Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor

About Us

Production Capacity:

1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.

2. 4,000,000 pieces annual output.

3. Automatic box process line, to ensure quality stablility and production efficience.

Market service:

1. year service for over 1,800 panel builders and 2,000 real estate companies.

2. Over 500 fully skilled support team, 22 national branches.

3. Stable delivery time all year long as 15days.

R&D ability:

1. Over 65 national patents, to ensure every single product is 100% original.

2. Product update and new product issue in each 1-2 years.

Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor

Our Factory

Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor

Certifications

Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor

Exhibitions

Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor

Packaging & Shipping

Single Phase Db Box 32 Way Electrical Distribution Box Circuit Breaker Indoor

FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
A: Generally, it will take 1 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can I have a sample order?
A. Yes, we can provide free sample for quality checking, but the courier charge should be paid by your side.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: Do you accept to print my logo on distribution box product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
