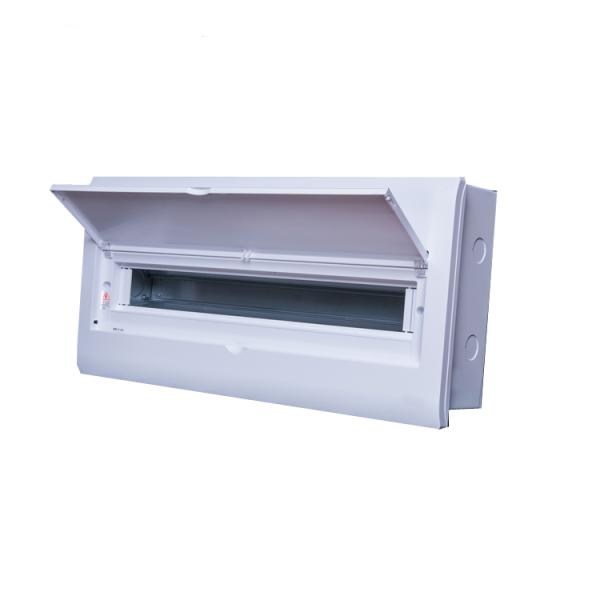

IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box
IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box
IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box
IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box
IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box
IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box
Specifications
Brand Name :
YOULIKE
Model Number :
RB flush
Certification :
CCC, CE
Place of Origin :
Guangdong, China
MOQ :
100pcs
Price :
3.5-50USD
Payment Terms :
L/C, D/P, T/T
Supply Ability :
400000pcs/month
Delivery Time :
15-20 working days
Packaging Details :
in color box or neutral carton
Item name :
24way distribution board
Material :
powder coated steel +PC
Rated voltage :
AC400v(+/-20%)
Rated currency :
55A/63A
Rows :
1 row/2 rows
Door :
transparent /non-transparent
Way dimension :
18mm
Mounting type :
flush mounted
Protection level :
IP40
Warrantly :
2 years
Application :
residential and commerical
Description

IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box

Main Features

1.Base box is made of high-quality cold-rolled steel plate, the surface is electrostatically sprayed, the base of the panel and the white movable door are made of high-quality HIPS material, and the transparent door is made of high-quality PC material.

2. Safe and full material copper terminals.

3.Adjustable din-rail:move ascend and descend.

4. Ultra-large space box for moving and easy wiring.

5. Flush mounting and surface mounting available.

6.Function of Distribution box:protect MCB and other devices..

7. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.

Plastic Parts Test Result

1. Incandescent wire test at 650℃.

2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.

3. Xenon arc lamp test ≥250hrs.

4. Hinge operation test ≥10,000 times no break.

Attention Points

1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.

2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.

3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.

4. It is recommended to install the support panel after the wall is puttying.

Product Parameters

Model RBP-A 124
Mounting Type flush mounting
Base Box Size 498×230×90×1.0mm
Cover Size 524×250×18.5(27)mm
Accessories bolt, din rail , terminal
Application consumers and commercial buildings
Approval CE,CCC

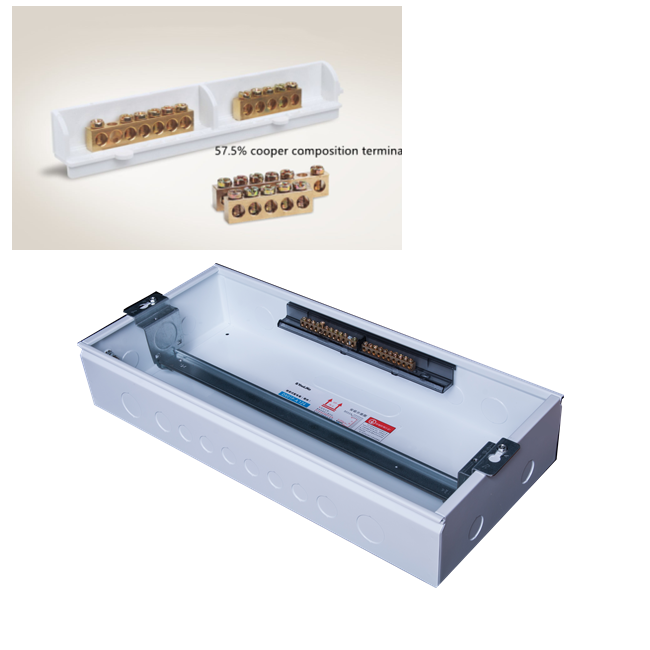

Copper Terminals safe and full material (57.5%)
Warranty 2 years
Package in color box or neutral carton
OEM offered

Specifications of RB series, Flush

Model Way Cover size Box size Terminals Knockouts
L*H*T (mm) L*W*D*T(mm) size(mm) PE N one side qty
RBP-A 110 10way 268×210×17.5(26) 246×192×80×0.8 6×10 6 5 5
RBP-A 113 13way 322×210×17.5(26) 300×192×80×0.8 6×10 6 5 6
RBP-A 116 16way 376×210×17.5(26) 354×192×80×0.8 6×10 8 7 7
RBP-A 118 18way 412×210×17.5(26) 390×192×80×0.8 6×10 8 7 8
RBP-A 121 21way 466×210×17.5(26) 444×192×80×0.8 6×10 11 10 10
RBP-A 124 24way 524×250×18.5(27) 498×230×90×1.0 6×10 11 10 10
RBP-A 232 32way 378×405×18.5(27) 354×380×90×1.0 6×10 13 12 7
RBP-A 242 42way 468×405×18.5(27) 444×380×90×1.0 6×10 16 15 10

Product Description

IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution BoxIP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box

About Us

YouLike is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, switch box, MCB consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, CCC test.

Production Capacity:

1. 30,000 square meters production center, including metallic process line, powder coating line, plastic injection, assemble line, customization center and etc.

2. 4,000,000 pieces annual output.

3. Automatic box process line, to ensure quality stablility and production efficience.

Market service:

1. year service for over 1,800 panel builders and 2,000 real estate companies.

2. Over 500 fully skilled support team, 22 national branches.

3. Stable delivery time all year long as 15days.

R&D ability:

1. Over 65 national patents, to ensure every single product is 100% original.

2. Product update and new product issue in each 1-2 years.

IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box

Our Factory

IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box

Certifications

IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box

Exhibitions

IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box

Packaging & Shipping

IP 40 PS ABS Material Outdoor Electrical 24 Way MCB Distribution Box

FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
A: Generally, it will take 1 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can I have a sample order?
A. Yes, we can provide free sample for quality checking, but the courier charge should be paid by your side.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: Do you accept to print my logo on distribution box product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
