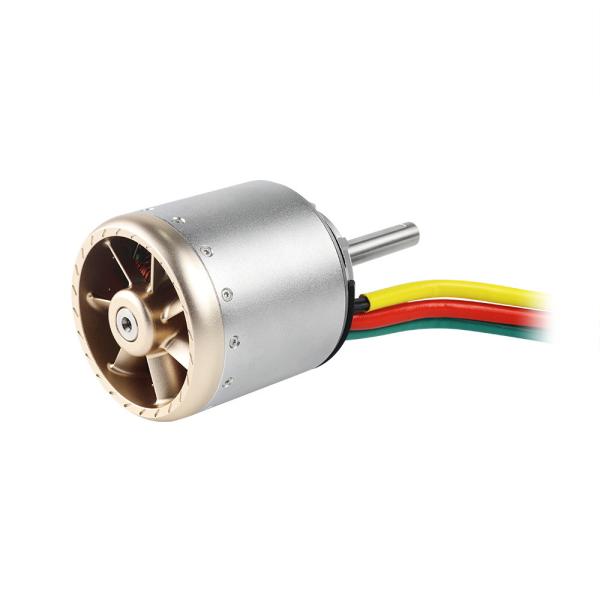

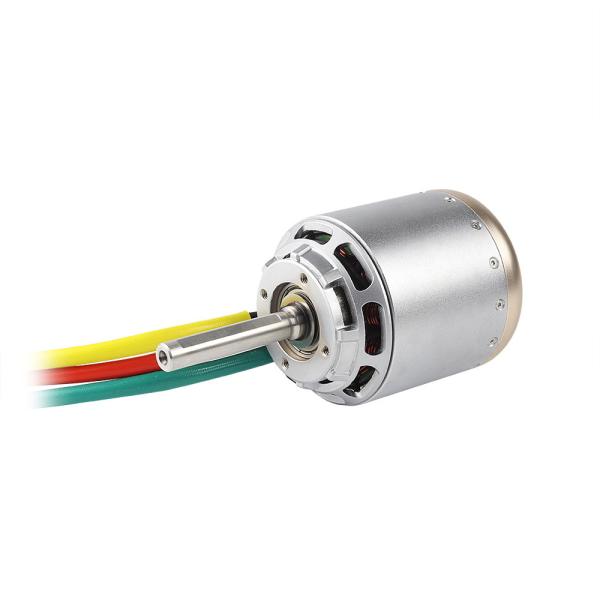

Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone
Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone
Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone
Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone
Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone
Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone
Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone
Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone
Specifications
Brand Name :
MC Motor
Model Number :
W70KV240-8
Certification :
CE, ROHS, TS16949, ISO90001
Place of Origin :
China
MOQ :
50 pcs
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000pcs/months
Delivery Time :
2 months
Packaging Details :
Carton ( Wood /Paper Box Optional)
Name :
Brushless Drone Motor
Voltage :
50V DC
Power :
8KW
High Speed :
10000RPM
Continuously Operating Current :
190A
N.W :
1.42KG
Efficiency :
91%
Power Density :
5.63kw/kg
Special Design :
External rotor design
Application :
Drone/UAV
Description

High Power Density BLDC Permanent Magnetic Synchronous Motor for UAV/Drone

Product Feature
1. Unique external rotor design
2. Midium speed with high efficiency
3. Super high power density
4. Small size
5. Low noise and vibration
6. Water resistance and corrosion resistance
7. Patented one-piece fan design

Specifications

Model Type W70KV240-8
Voltage 50VDC
Working Speed 10000rpm
Output Power 8KW
Continuously Operating Current 190A
Efficiency 91%
Motor Diameter 70mm
Motor Length 93.5mm
N.W 1.42KG
Power Density 5.63kw/kg

More Details

Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone

1. Casing/Housing: Super strong Alloy shell (Stainless steel/alloy optional)
2. 220°C grade corona resistant varnished wire
3. NHN Insulation paper
4. High grade NdFeB permanent magnet

Application

Large load electric-powered unmanned aerial vehicles(UAV),including agriculture and industry

Packing

Color boxes, or customization packages also acceptable

Permanent Magnet Synchronous Bldc Brushless Motor For UAV Drone

1. Different cartons designs optional (Please kindly note: different designs, price might be differenert, please check with our sales before placing your orders)
2. Most of our motors are customized, please confirm the carton size with our sales when all your requirement are confirmed.

Shipping direction

1. Sample order: our stock cargons L/T 1~3 days, customized 45~60 days
2. Mass production order: 15~25 days based on the quantity
3. By air: we normally take DHL/FEDEX/UPS/TNT or other door to door service
4. By sea: LCL/FCL are both ok.

FAQ

1. Is this UAV Motor also permanent magnet synchronous motors?
Yes. MC MOTOR makes only permanent magnet motors


2. How long this motor can work every time?

This motor is NOT S1 duty type, Max working time can not be more than 30 minute

3. Do you also offer motor controller as a set?

Yes, obsolutely. We can provide motor + controller to our clients.


Can not find the answer to your questions, please send your questions or inquiry to our email address
