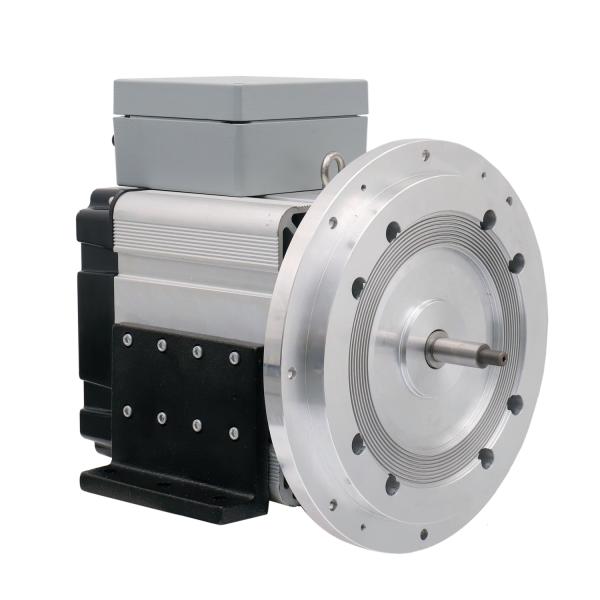

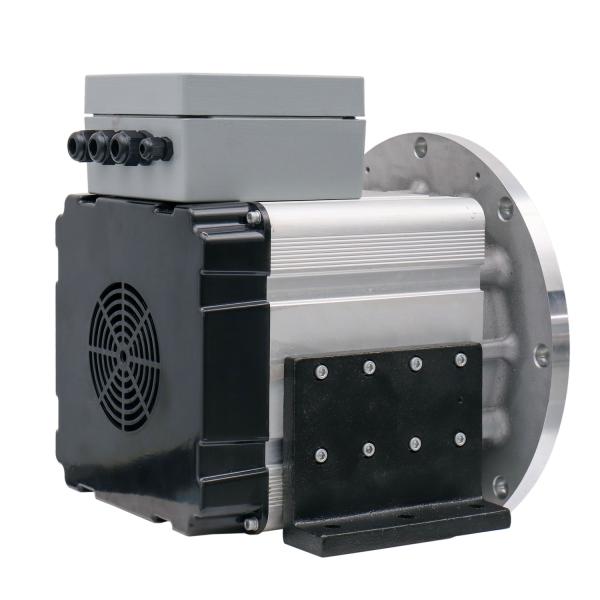

3phases 380VAC 37KW 18000RPM Air cooled high speed permanent magnet motor
3phases 380VAC 37KW 18000RPM Air cooled high speed permanent magnet motor
3phases 380VAC 37KW 18000RPM Air cooled high speed permanent magnet motor
3phases 380VAC 37KW 18000RPM Air cooled high speed permanent magnet motor
3phases 380VAC 37KW 18000RPM Air cooled high speed permanent magnet motor
3phases 380VAC 37KW 18000RPM Air cooled high speed permanent magnet motor
Specifications
Brand Name :
MC MOTOR
Model Number :
SRPM112H4F37
Certification :
CE,ROHS,CCC
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
30-35 nature days
Packaging Details :
carton / poly-wooden box
Ac voltage :
208-230 / 240 V,220V,110V,380V,AC220V
Frequency :
50/60Hz
Phase :
Three-phase
Efficiency :
IE 4
Structure :
Synchronous Motor,Self-cooling
Rotation direction :
CW/CCW
Application :
Turbine, Turbofan, Compressors, blowers
Name :
Ac synchronous geared motor
Description

3phases 380VAC 37kw 24000rpm High Speed Synchronous Permanent Magnet Motor

Specifications:

Model #: SRPM112H4F37
Voltage: 380V AC
Rated Power: 37KW
Rate Torque : 19.63 N.m
Working speed: 18000rpm
Efficiency: 95.5%
Duty Type: S1
Isolation: H
Water/dust Proof: IP54
Pole Number: 4
N Weight: 40KG
Cooling Method: Forced air cooling

NOTE: Flange and shaft extension can be customized based on requirements

3phases 380VAC 37KW 18000RPM Air cooled high speed permanent magnet motor

3phases 380VAC 37KW 18000RPM Air cooled high speed permanent magnet motor

Feature:
1) Forced-Air cooled motor, easy operation
2) Extra high speed to 18000rpm
3) small size L383mm* H264mm*W250mm
4) light weight : 40KG
5) Long lifetime, durability, easy mantainance
6) Application: turbine, fan, blowers, centrifugal compressors

Series models for your more options

Motor type Voltage
(V AC)		 Rated power
(kw)		 Rated torque (N.m) Rated speed
(rpm)		 Efficiency
(%)		 Duty type Insulation Ingress protection Pole Number Net Weight
(kg)		 Cooling Method position signal
SRPM112H4F7.5C 380 7.5 3 24000 95.5 S1 H IP54 4 19 Forced Air Resolver
SRPM112H4F15 380 15 5.97 24000 95.5 S1 H IP54 4 26 Forced Air Resolver
SRPM112H4F18.5 380 18.5 8.41 21000 95.5 S1 H IP54 4 31 Forced Air Resolver
SRPM130H4F22 380 22 10 21000 95.5 S1 H IP54 4 33 Forced Air Resolver
SRPM130H4F37 380 37 19.63 18000 95.5 S1 H IP54 4 40 Forced Air Resolver
