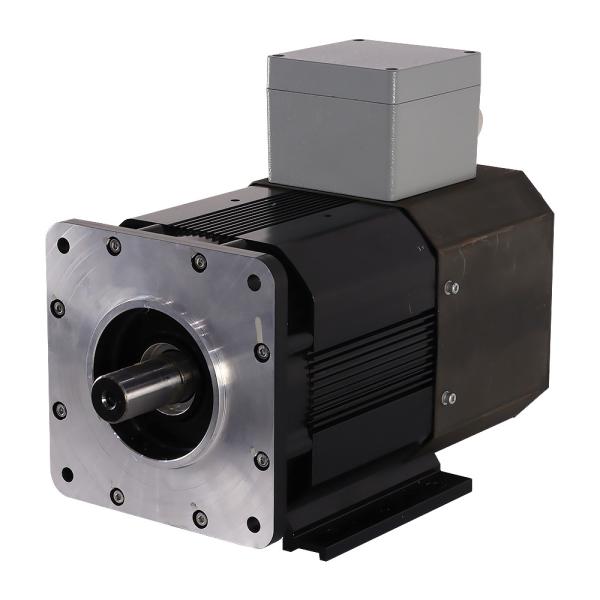

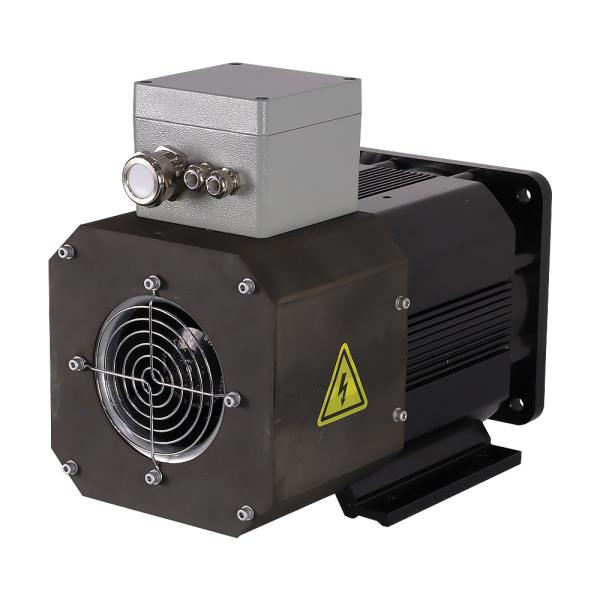

Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Specifications
Brand Name :
MC MOTOR
Model Number :
SRPM112H4F7-5
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
100
Price :
750USD
Payment Terms :
T/T
Supply Ability :
5000PCS/Month
Packaging Details :
wooden /paper carton
Delivery Time :
4-8 weeks based on quanity
Housing material :
Alloy
shaft material :
stainless steel
Rated Power :
7.5KW
Rared speed :
24000rpm
Efficiency :
95% /IE4
Cooling :
Forced air
Duty type :
S1
Motor type :
Synchronous permanent magnet motor
Motor driver :
inverter / variable frequency device
Net weight :
18.8KG
Ac voltage :
230/380/400/690VAC optional
Phase :
3-phases
Frequency :
50-60Hz
Applications :
Industrial compressor, pump, blower, turbo, turbine blowers, New energy vehicles
Description

Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent Magnet Motor

Specifications:

Model #: SRPM112H4F7-5C
Voltage: 380V AC
Rated Power: 7.5KW
Rate Torque : 2.98 N.m
Working speed: 24000rpm
Efficiency: 95.5%
Duty Type: S1
Isolation: H
Water/dust Proof: IP54
Pole Number: 4
N Weight: 18.8KG
Cooling Method: Forced air cooling

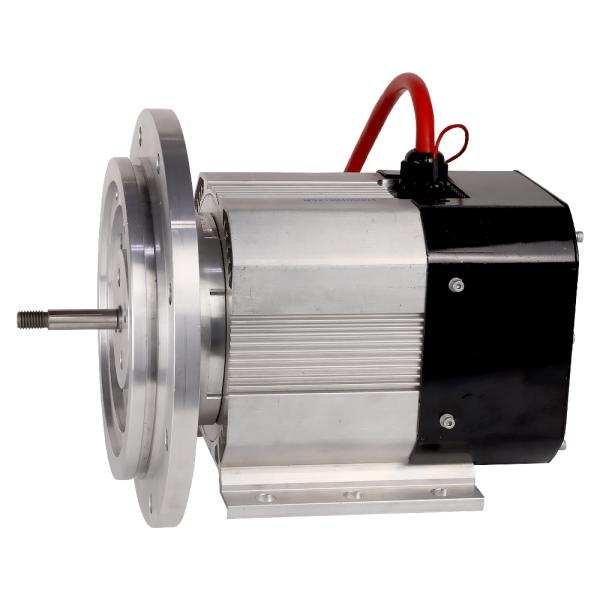

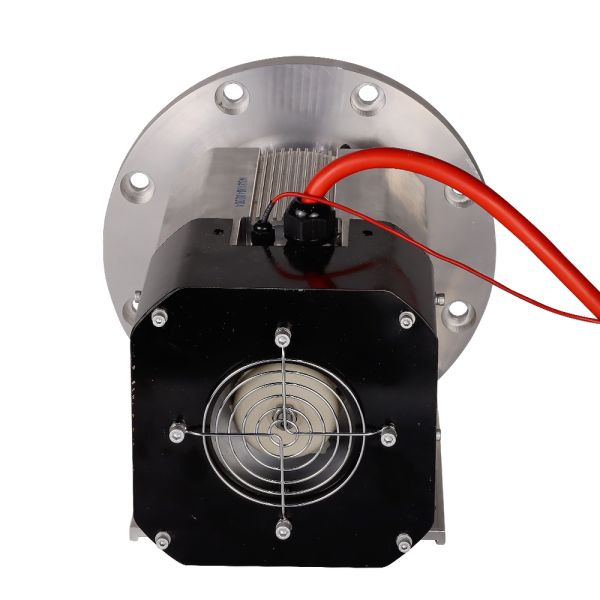

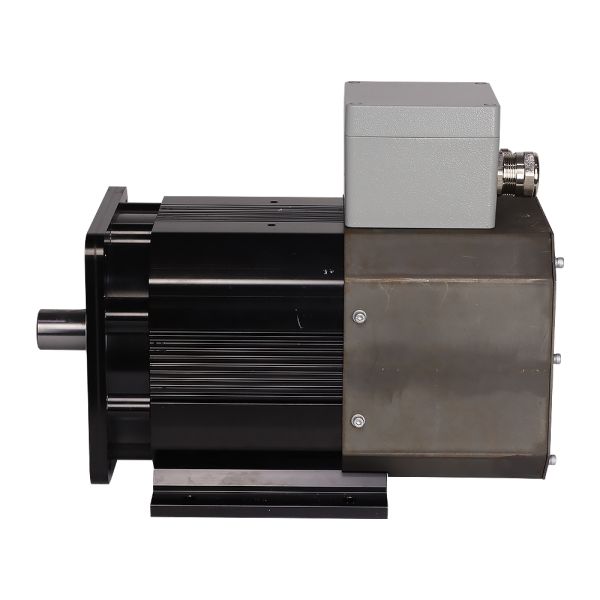

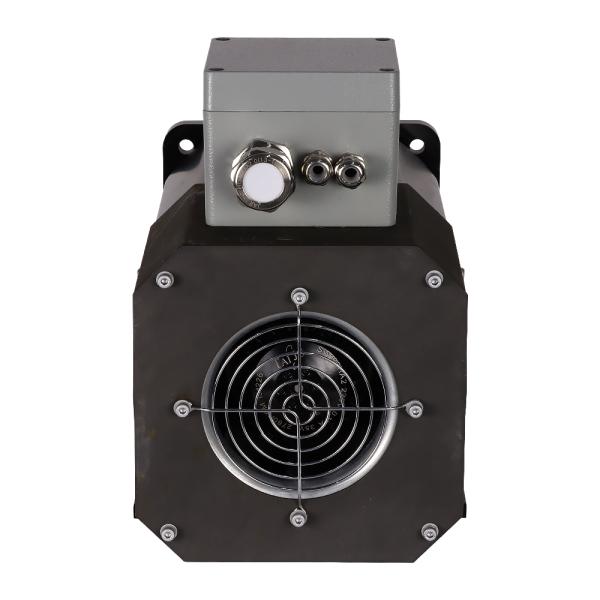

Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Feature:
1) Air cooled motor, easy operation
2) Extra high speed to 24000rpm
3) small size L235mm* Φ260mm
4) light weight : ONLY 18.8KG
5) Long lifetime, durability, easy mantainance
6) Application: turbine, fan, blowers, centrifugal compressors
Package:
wooden/paper box as below
Air Cooled 380VAC 7.5kw 24000rpm High Speed Synchronous Permanent magnet Motor
Other high speed water cooled models you may interested in:
MODEL Voltage
(V AC)		 Power
(kW)		 Speed
(rpm)		 Torque
(N.m)		 Efficiency
(%)		 Duty type Insulation IP Pole NW
(kg)		 Cooling Resolver Install
SRPM112H4W7.5 380 7.5 18000 4 93.2 S1 H/F IP54 4 19 Water N/A B35
SRPM112H4W18 450 18 20000 8.6 94.5 S1 H/F IP67 4 17.5 Water N/A B5
SRPM112H4W8 330 8 24000 3.2 94 S1 H/F IP54 4 6 Water N/A B5
SRPM112H4W20 330 20 24000 8 94.3 S1 H/F IP54 4 19 Water N/A B5
SRPM112H4W22 380 22 24000 8.8 94.3 S1 H/F IP54 4 19 Water N/A B35
FAQ
1. Can performanent magnet synchronous motor be used as generator?
No. Permanent magnet synchronous motor is absolutely different from generator. It is only ac motor that outputs speed and torque to drive electric devices, but not power supply.

2. Why can not directly use three phase ac supply voltage to start permanent magnet synchronous motor?
Becuase rotor is with big innertia, and magetic files spins so fast that static rotor has no way to spin with magetic filed.

3. Any special technical request on this motor's VFD driver? And Do you have such driver?
Permanent magnet synchronous motor's driver should be vector control VFD with special inner software, such as Siemens 6SE70 series, Yakawa CR5 series, ABB ACS800 series, Mitsubishi A740 series, B&R P84 and P74 series, etc.. Yes, our MH300 series VFD matches with this motor.

4. Is there any protective measures to defend permanent magnet rotor from failure?
Yes, each permanent magnet rotor passes corrossion resistance, consistency, high temperature demagnetization test, linear demagnetization test, etc. Its demagnetization index is within 2%. But if working environment is serious oxiditive corrosion, kindly advise for higher protection level.

5. Where is this permanent magnet synchronous motor normally used to?
This permanent magnet synchronous motor is normally used to variable frequency speed situation.
