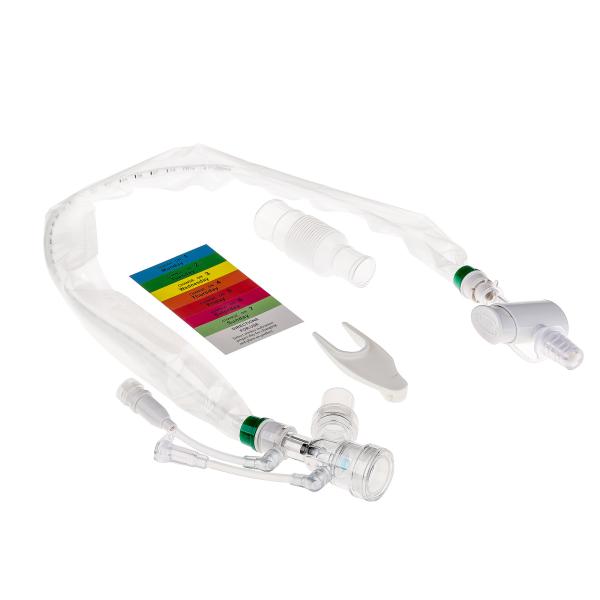

Closed Suction System (L-Piece) 24H Endotracheal 7Fr 300mm

Features

- Continuous Breathing
Simultaneously ventilation

- Soft Blue Suction Tip
This design reduces damage to the patient while suctioning.
After returning the catheter, the tip of the tube is easier for irrigational cleaning.

- Double Swivel Connector
15mm connector of Double Swivel

- Disconnecting Wedge
Designed to equip the wedge with both disconnecting and clipping functions

- For Endotracheal Tube and Tracheostomy Tube
Designed for endotracheal and tracheostomy tube using
Tubes with different length are available

- Prevent Cross Infection
Designed with a protective sleeve to isolate the bacteria inside and help caregivers avoid cross-inflection.

• The product is made of high quality medical PVC.
• Soft Blue tip design reduces irritation and damage to the tracheal mucosa.
• The product uses several closed designs and additional cleaning function. It can effectively avoid the risk of caregiver being infected by the air exhaled by the patient during the treatment process.
• In clinical use, the flushing port with a one-way valve design to prevent liquid reflux after flushing.
• This design makes the Closed Suction Catheter tube more convenient, safety and easier to operate by caregiver.
• The black indicator line indicates the position of the withdrawal suction tube to avoid the ETT airway block.
• Closed Suction Catheter should be free of sensitization and mucosal irritation, the Cytotoxicity is not more than level 2. The products will sterilization by EO.

Packaging & Delivery

-Packaging Details

-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton

-Delivery Time: Within 20 days. It depends on the quantity of order

Product Description

We can produce the closed suction catheter according to customers' requirements.

Instructions for Use

*Set up Procedure

1. Inspect the product before use. Do not use it if the package is not intact.

2. Open the sealed package and take out the product.

3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.

4. Connect ventilator tube to the Revolvable Ventilator Connector.

5. Attach the date label to the color ring.

6. Before suctioning commences ensure that the cap of the MDI Port/ irrigation Port is closed.

7.Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/ Tracheostomy tube.

*Suctioning Procedure

Caution-always use the recommended vacuum levels./Consider length of suctioning time

1.Grip the three-way adaptor in one hand and with the other hand feed the suction
a catheter into the Endotracheal tube/ Tracheostomy tube, to the required depth.
Depth markers can be visible through the protective cover for your guidance.

2.Once the suction catheter is in the desired position/ depth depress the vacuum
Control valve to apply suction.

3. Remove the suction catheter until the protective sleeve is straight.

4.Repeat steps1-3 as necessary.
