ICM-20602 Integrated Circuit Chip 6 - Axis Motion Tracking Device Sensitivity Error ±1%
ICM-20602 Integrated Circuit Chip 6 - Axis Motion Tracking Device Sensitivity Error ±1%
ICM-20602 Integrated Circuit Chip 6 - Axis Motion Tracking Device Sensitivity Error ±1%
ICM-20602 Integrated Circuit Chip 6 - Axis Motion Tracking Device Sensitivity Error ±1%
Specifications
Brand Name :
INVENSENCE
Model Number :
ICM-20602
Certification :
ROHS
Place of Origin :
Original & New
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
1-3Days
Packaging Details :
BOX
Series :
6-Axis MotionTracking device
Package :
LGA-16
Feature :
Inertial Measurement Units
Application :
IoT Applications
D/c :
New & Original Allegro Only
Lead time :
0-3 Days
Description

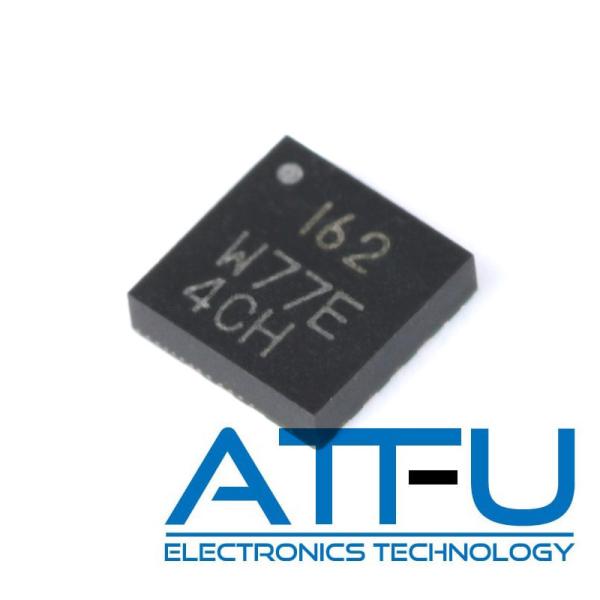

ICM-20602 LGA-16 3-axis gyroscope, 3-axis accelerometer 6-Axis MotionTracking device

Description

The ICM-20602 is a 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, in a small 3 mm x 3 mm x 0.75 mm (16-pin LGA) package.

 High performance specs o Gyroscope sensitivity error: ±1% o Gyroscope noise: ±4 mdps/Hz o Accelerometer noise: 100 µg/Hz

 Includes 1 KB FIFO to reduce traffic on the serial bus interface, and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode

 EIS FSYNC support

ICM-20602 includes on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and programmable interrupts. The device features an operating voltage range down to 1.71V. Communication ports include I2C and high speed SPI at 10 MHz

FEATURES and BENEFITS

​ 3-Axis Gyroscope with Programmable FSR of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
 3-Axis Accelerometer with Programmable FSR of ±2g,±4g, ±8g, and ±16g
 User-programmable interrupts
 Wake-on-motion interrupt for low power operation of applications processor
 1 KB FIFO buffer enables the applications processor to read the data in bursts
 On-Chip 16-bit ADCs and Programmable Filters
 Host interface: 10 MHz SPI or 400 kHz Fast Mode I2C
 Digital-output temperature sensor
 VDD operating range of 1.71V to 3.45V
 MEMS structure hermetically sealed and bonded at wafer level
 RoHS and Green compliant

Typical applications

 Smartphones and Tablets
 Wearable Sensors
 IoT Applications
 Motion-based game controllers
 3D remote controls for Internet connected DTVs and set top boxes, 3D mice

​
