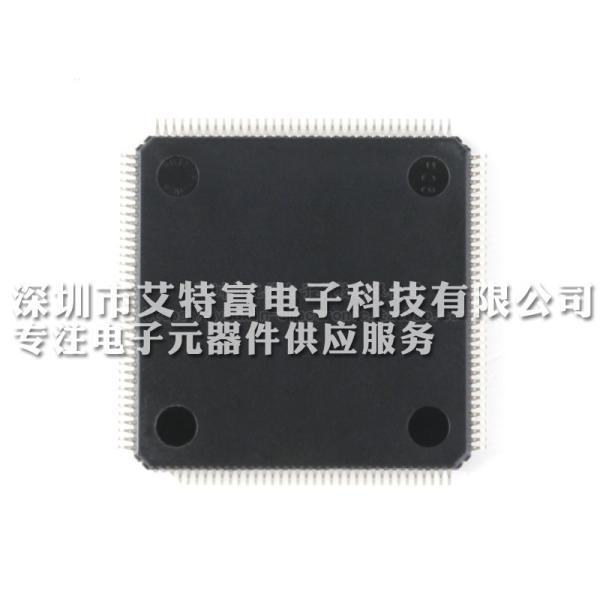

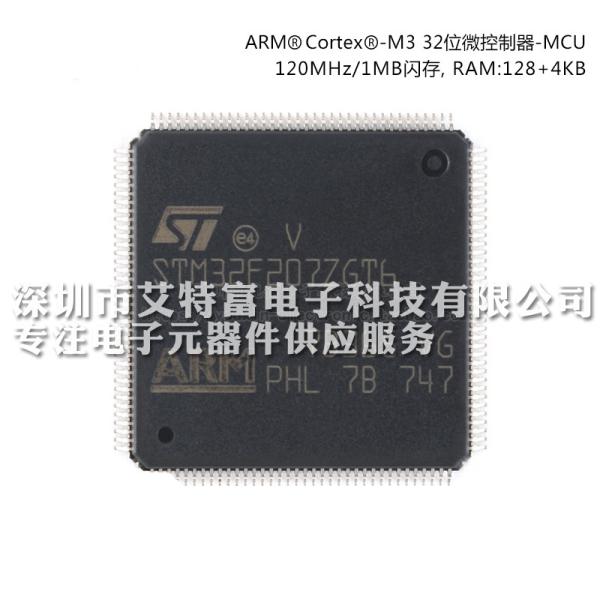

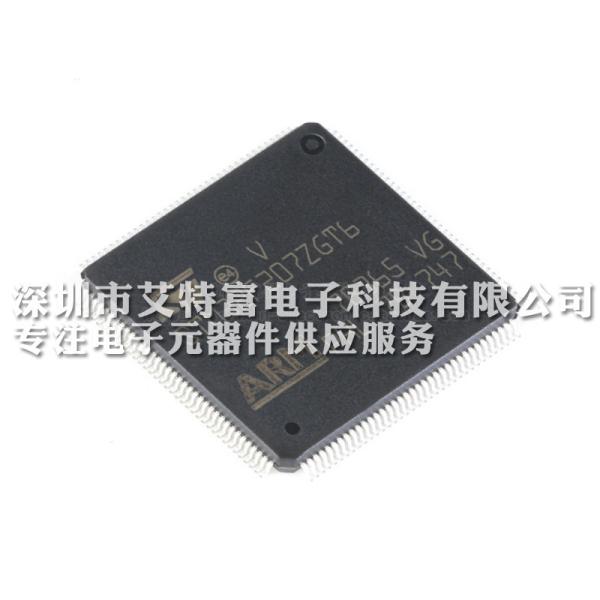

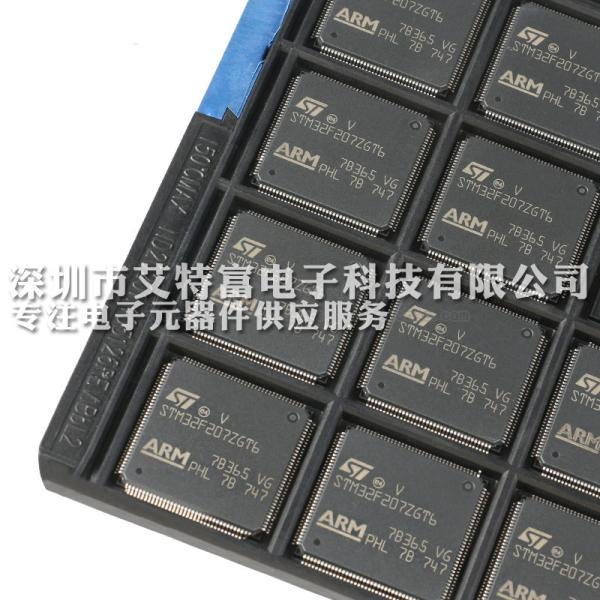

Integrated Circuit Chip STM32F207ZGT6 MCU Chip with 1Mb Flash, 120Mhz For Security
Integrated Circuit Chip STM32F207ZGT6 MCU Chip with 1Mb Flash, 120Mhz For Security
Integrated Circuit Chip STM32F207ZGT6 MCU Chip with 1Mb Flash, 120Mhz For Security
Integrated Circuit Chip STM32F207ZGT6 MCU Chip with 1Mb Flash, 120Mhz For Security
Integrated Circuit Chip STM32F207ZGT6 MCU Chip with 1Mb Flash, 120Mhz For Security
Integrated Circuit Chip STM32F207ZGT6 MCU Chip with 1Mb Flash, 120Mhz For Security
Integrated Circuit Chip STM32F207ZGT6 MCU Chip with 1Mb Flash, 120Mhz For Security
Integrated Circuit Chip STM32F207ZGT6 MCU Chip with 1Mb Flash, 120Mhz For Security
Specifications
Brand Name :
ST
Model Number :
STM32F207ZGT6
Certification :
ROHS
Place of Origin :
Original & New
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs
Delivery Time :
1-3Days
Packaging Details :
BOX
Series :
ART Accelerator
Package :
LQFP 144（20x20mm）
Feature :
120 MHz CPU
Voltage :
1.8 - 3.6 V
D/c :
New & Original Only
Lead time :
0-3 Days
Program memory :
1Mb Flash
Description

Integrated Circuit Chip STM32F207ZGT6 MCU Chip with 1Mb Flash, 120Mhz For Security

Arm®-based 32-bit MCU, 150 DMIPs, up to 1 MB Flash/128+4KB RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 15 comm. interfaces and camera

Descriptions:

The STM32F20x family is based on the high-performance Arm® Cortex®-M3 32-bit RISC core operating at a frequency of up to 120 MHz. The family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 128 Kbytes of system SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.

Feature:

  • Core: Arm® 32-bit Cortex®-M3 CPU (120 MHz max) with Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution performance from Flash memory, MPU, 150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)
  • Memories
    • Up to 1 Mbyte of Flash memory
    • 512 bytes of OTP memory
    • Up to 128 + 4 Kbytes of SRAM
    • Flexible static memory controller that supports Compact Flash, SRAM, PSRAM, NOR and NAND memories
    • LCD parallel interface, 8080/6800 modes
  • Clock, reset and supply management
    • From 1.8 to 3.6 V application supply + I/Os
    • POR, PDR, PVD and BOR
    • 4 to 26 MHz crystal oscillator
    • Internal 16 MHz factory-trimmed RC
    • 32 kHz oscillator for RTC with calibration
    • Internal 32 kHz RC with calibration
  • Low-power modes
    • Sleep, Stop and Standby modes
    • VBAT supply for RTC, 20 × 32 bit backup registers, and optional 4 Kbytes backup SRAM
  • 3 × 12-bit, 0.5 μs ADCs with up to 24 channels and up to 6 MSPS in triple interleaved mode
  • 2 × 12-bit D/A converters
  • General-purpose DMA: 16-stream controller with centralized FIFOs and burst support
  • Up to 17 timers
    • Up to twelve 16-bit and two 32-bit timers, up to 120 MHz, each with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
  • Debug mode: Serial wire debug (SWD), JTAG, and Cortex®-M3 Embedded Trace Macrocell™
  • Up to 140 I/O ports with interrupt capability:
    • Up to 136 fast I/Os up to 60 MHz
    • Up to 138 5 V-tolerant I/Os
  • Up to 15 communication interfaces
    • Up to three I2C interfaces (SMBus/PMBus)
    • Up to four USARTs and two UARTs (7.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control)
    • Up to three SPIs (30 Mbit/s), two with muxed I2S to achieve audio class accuracy via audio PLL or external PLL
    • 2 × CAN interfaces (2.0B Active)
    • SDIO interface
  • Advanced connectivity
    • USB 2.0 full-speed device/host/OTG controller with on-chip PHY
    • USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
    • 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
  • 8- to 14-bit parallel camera interface (48 Mbyte/s max.)
  • CRC calculation unit
  • 96-bit unique ID

Series Items:

STM32F205RB, STM32F205RC, STM32F205RE, STM32F205RF, STM32F205RG STM32F205VB, STM32F205VC, STM32F205VE, STM32F205VF, STM32F205VG STM32F205ZC, STM32F205ZE, STM32F205ZF, STM32F205ZG

STM32F207IC, STM32F207IE, STM32F207IF, STM32F207IG STM32F207VC, STM32F207VE, STM32F207VF, STM32F207VG STM32F207ZC, STM32F207ZE, STM32F207ZF, STM32F207ZG
