European Type Rope Electric Hoist , Europe standard electric hoist
European Type Rope Electric Hoist , Europe standard electric hoist
Specifications
Brand Name :
MD
Model Number :
CDE
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000PCS/YEAR
Delivery Time :
In Stock
Packaging Details :
Plywood box + water proof membrane cover
Product Name :
Wire Rope Electric Hoist
Lift Capacity :
5000kg
Lift Speed :
8m/min
Power supply :
380V/50HZ/3PH or On Request
Application :
Used on Cranes
Lift height :
3-30m
Featurees :
Loe Headroom work
Description

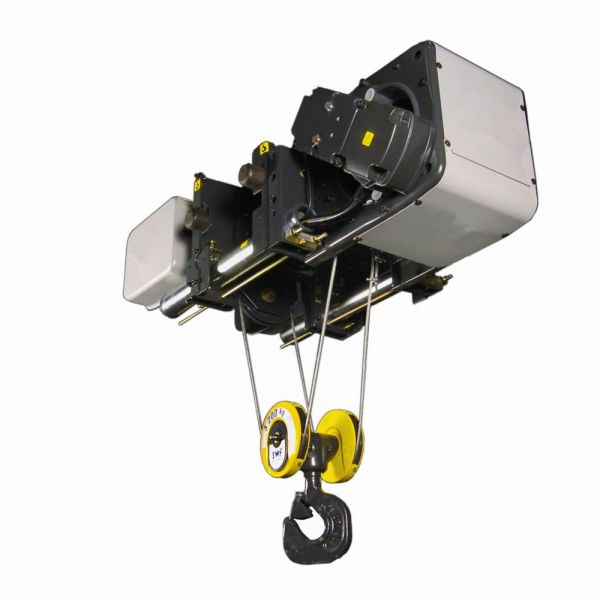

European Type Rope Electric Hoist , Europe standard electric hoist

This european type overhead crane is widely used on overhead cranes, gantry cranes and cantilever cranes .

European Type Rope Electric Hoist , Europe standard electric hoist

European Type Rope Electric Hoist , Europe standard electric hoist

Standard Technical Parameters( Customized model accepted)

Model 0.25TON 0.5TON 1TON 2TON 3TON 5TON 10TON
Lifting capacity(t) 0.25 0.5 1 2 3 5 10
Lifting height(m) 3-9 6-12 6-30 6-30 6-30 6-30 6-30
Lifting speed m/min 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 7(7/0.7)
Running speed(m/min) 20(30)
Rope size 6×19-3.6 6×37-4.8-180 6×37-7.4-180 6×37-11-155 6×37-13-170 6×37-15-200 6×37-15-200
Rail beam 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 28a-63c
Min.radius of ring rail (m) 0.8 1.5 1.5-4 2-4 2-4 2.5-5 3.5-9
Voltage (v) 380 380 380 380 380 380 380
Frequency (hz) 50 50 50 50 50 50 50
Phase 3 3 3 3 3 3 3

Please tell us the following informations to recommend the right model electric hoist for you.

Lift capacity?

Lift heright?

Lift speed?

Power Supply Voltage?

Using environment or what to lift?

Shipping Photos of MD CRANES:

European Type Rope Electric Hoist , Europe standard electric hoist

Customized Model Acceptable According to Your Requirements, Please Contact Us for Further Communication.

Email/Skype: sales@md-cranes.com

Tel/whatsapp:+8613953895525

Or

Just send your inquiry to us, we will do the rest thing for you.
