G1/4” Thread 3/8X1/2 Compression Fitting,Nickel plating.
G1/4” Thread 3/8X1/2 Compression Fitting,Nickel plating.
G1/4” Thread 3/8X1/2 Compression Fitting,Nickel plating.
G1/4” Thread 3/8X1/2 Compression Fitting,Nickel plating.
Specifications
Place of Origin :
China
Brand Name :
Means
Certification :
Rohs
Model Number :
MS-CF002N
MOQ :
200pcs
Packaging Details :
20pcs/Carton
Delivery Time :
15days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
5000pcs/Month
Description

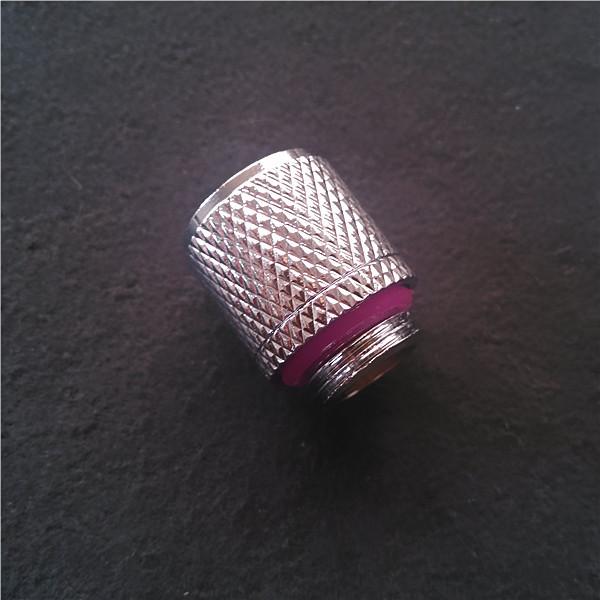

G1/4" Thread 3/8"(9.5mm)ID x 1/2"(12.7mm) OD Compression Fitting(Nickel Plating),MS-CF002N takes a high quality of manufacturing, colors and choice. The inner diameter of the fitting truly provides the smooth and high flow.The series of tube connectors are designed to look elegant in PC water cooling system.

MS-CF002N is easy to install due to the 3/8” tube (ID-9.5mm OD-12.7mm) (G1/4”) and 3/8” bolts and also enables to connect pumps, water blocks, radiators and tank.
The tube connectors, special design of the bolts and nuts, prevent tube's looseness and coolant leakage. The MS-CF002N is hi-quality brass material and high durability nickel finished.
Easily Connect Components and Avoiding Coolant Leakage

MS-GF003N is easy to install due to the 3/8” tube (ID-9.5mm
OD-12.7mm) (G1/4”) and 3/8” hose clip (clamp) and also enables to connect pumps, water blocks, radiators and tank. The tube connectors, special design of the bolts and nuts, prevent tube's looseness and coolant leakage. ong-lasting thermal conductivity.

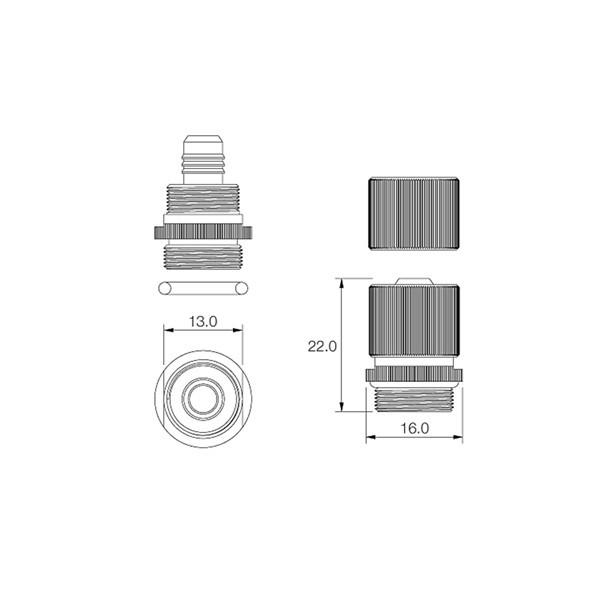

Specifications:
Height: 24mm
Thread Type: G1/4"(1/4PF)
G1/4" Thread Length: 5mm
Upper Thread Type and Length:(M)15 x (P)1.0 x 5mm
G1/4" Material:Brass(Copper)
Finish: Nickel plating
Weight: 15.5g
Nut Length: 12.5mm
Nut Inner Diameter: 12.7mm for tube 3/8"
Nut Outer Diameter: 18mm
Nut Thread Length: (M)15*(P)1.0 X 7mm
Material: Brass(Copper)
Finish: Nickel plating
Weight: 9.5g
MS-CF002N Weight: 25g
