Computer CPU Water Blocks,Radiator. Red copper Backboard,Rubber Gasket. AMD or INTEL Motherboard all-purpose.

1. Silver alloying brazing water block

The CPU water block MS-003-AC is made of pure copper material which is soldered by silver alloying brazing different

From other water block locked by screws and plastic O-rings. With the pure copper and silver alloying brazing

Manufacture, the CPU water block MS-003-AC presents outstanding heat transfer efficiency even if in low water flow rate.

2. Intel and AMD socket compatibility & Easy installation.

The clips of CPU water block MS-003-AC supports INTEL LGA 2011/1366/1156/775 and AMD Socket 754/939/940/AM2/AM2+/AM3 platforms.

The universal strengthened back-plate not only prevents M/B distortion but also has high compatible installation for all kinds of MBs.

3. Nickel-Planted and mirror polishing treatment on copper base

The high quality nickel-plated and polishing treatment on the base of the water block ensures excellent

Surface contact with heat source and enhances heat transfer efficiency.

4. 3D micro-fin structure and inner micro channel design

CPU water block MS-003-AC adapts 3D micro-fin structure design to form compact inner micro channel.

The compact micro-fin structure increases the surface area of heat transfer to enhance thermal performance under low water flow rate.

5. Easy installation

The CPU WB MS-003-AC is easy to install the water cooling loop and the 1/4”(OD8mm / ID 6mm) and 3/8”(OD 12.7mm / ID 9.5mm) (G 1/4” thread )tube enables upgrade to install series of water blocks. It is easy to replace between 1/4”,3/8” and 1/2”tube.The horse clip (clamp) is also easy to install. The clip of CPU water block MS-003-AC supports most of motherboard in the world.

CPU socket comatibility:

• Supports Intel LGA 775,LGA 1150/1155/1156,LGA1366 ,LGA2011
• Supports ADM Socket 939/754/940/AM2/AM2+/AM3/AM3+/FM2/FM2+

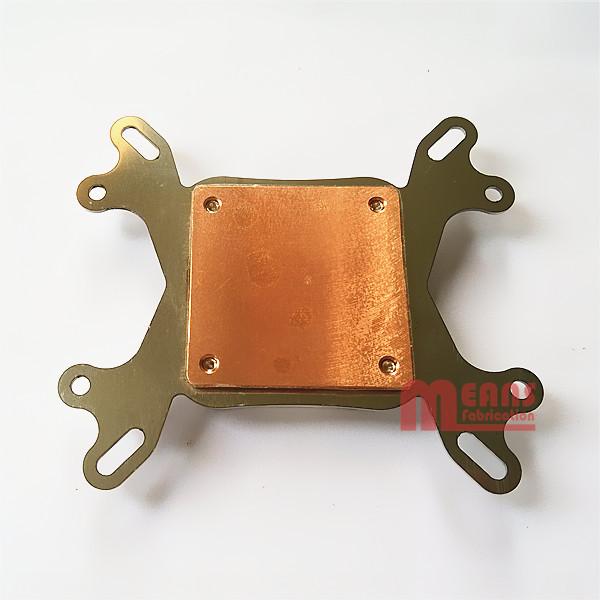

• Red Copper Backboard
• Roof cover, Two kinds of materials: POM black or PMMA transparent.
• The Bracket is stainless steel, plating finish.
• Standard interface

Specification:

Size: 50(L)*50(W)*15(H)mm

Installation size: 71-82mm, For 4-Holes(see drawing)

Material: 10mm Acrylic(Transparent), 1.5mm Stainless steel, 3mm Red Copper.

Stainless steel Finish: Nickel/Chrome Mirror polishing treatment / Black

Red copper Finish: Mirror polishing treatment

Weight: 120g
