Micro Adjust Hand Throttle Control Cable Assembly Wire Rope Output 565 - 557 Series
Micro Adjust Hand Throttle Control Cable Assembly Wire Rope Output 565 - 557 Series
Micro Adjust Hand Throttle Control Cable Assembly Wire Rope Output 565 - 557 Series
Micro Adjust Hand Throttle Control Cable Assembly Wire Rope Output 565 - 557 Series
Specifications
Brand Name :
PHIDIX
Model Number :
Customized
Certification :
IATF16949
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
888 Piece / Pieces per Month
Delivery Time :
7 - 40 work days
Packaging Details :
carton or wood case
Name :
Wire Rope Output — Throttle 565 - 557 Series Micro Ajdust Hand Throttle Controller Control Head
Stroke :
3.00”
Normal Load :
Unspecified (determined by installation configuration)
Minimum Bend Radiu :
3.00”
Operating Temperature :
from -65°F — +165°F at input end/+230°F at output end
Material :
Stainless Steel or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit and Innermember / Plastic Seal / Plastic Knob
Description

Wire Rope Output — Throttle 565 - 557 Series Micro Ajdust Hand Throttle Controller Control Head

【 Product Description 】

We are a designer and manufacturer of an extensive range of aircraft cables. The throttle, mixture, and prop/pitch micro adjust controls are in full compliance with FAA regulations. For adjusting course travel, the knob needs to be pushed or pulled by depressing the center button.
Counter-clockwise rotation of the knob leads to retraction of the output in finite mode, while clockwise rotation leads to its extension. For 1" of linear travel, four and one-half turns are needed. The micro adjust setting is not affected by normal vibration.
In terms of accessories, an optional friction lock is available. This is needed for applications getting impacted by extreme vibration. Also available is a control head only for friction lock.

【 Material 】
• Stainless Steel or Plated Carbon Steel
• Plastic Coated Carbon Steel Conduit and Innermember
• Plastic Seal
• Plastic Knob

【Suggested End Fittings】
• Full Range

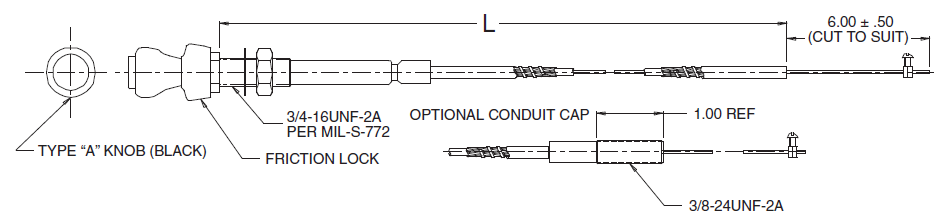

【 Wire Rope Output - Throttle 565-557 】

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"		 Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end		 Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.
