Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine
Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine
Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine
Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine
Specifications
Brand Name :
PHIDIX
Model Number :
Customized
Certification :
IATF16949
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
888 Piece / Pieces per Month
Delivery Time :
7 - 40 work days
Packaging Details :
carton or wood case
Name :
gear shift selector cable
Normal load :
Unspecified (determined by installation configuration)
Travel :
3.00” maximum
Minimum Bend Radius :
3.00”
Operating Temperature :
-65°F — 165°F (input) 230°F (output)
Material :
Stainless Steel or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit and Innermember / Plastic Seal / Plastic Knob
Description

Wire Rope Output — Mixture 565 - 557 Series Engineering Machines Spare Parts Throttle Control Head

【 Product Description 】

We can design and manufacture a wide range of aircraft cables. Our mixture, prop/pitch, and throttle micro adjust controls are compliant with FAA requirements. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. Rotating the knob counter-clockwise retracts the output in the finite mode, and clockwise extends.

Four and one-half turns results in 1[1] of linear travel. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications influenced by excessive vibration. A friction lock (only) control head is also available.Various output configurations are available to suit specific applications. The ordering code and technical descriptions show these choices.

【 Applications 】
• General aviation aircraft
• Throttle control
• Mixture control
• Prop/pitch control

【 Features 】
• Glass filled nylon control head
• Travel: 3.00" maximum
• Bend radius:3.00" minimum & 7.00" minimum
• Operating temp:-65°F — 165°F (input) 230°F (output)

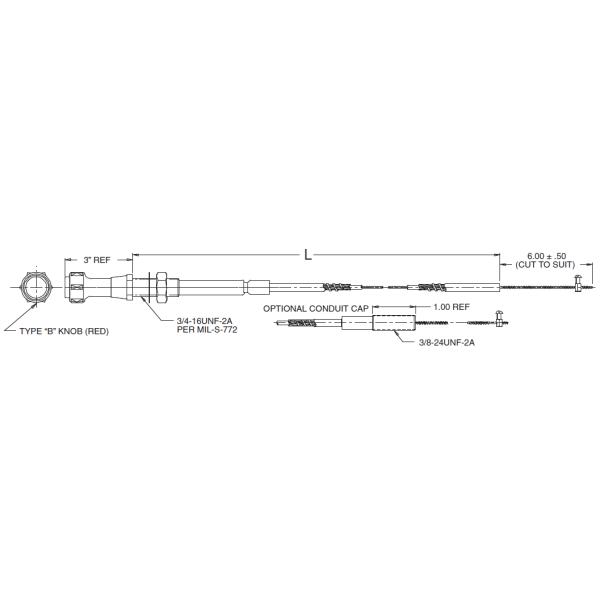

【 Wire Rope Output - Mixture 565-557 】

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"		 Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end		 Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine

【 Micro Adjust Control Heads 】

Wire Rope Output Throttle Control Cable Head Mixture 565 - 557 Series For Engineer Machine

All line art dimensions are represented in inches
