Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10
Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10
Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10
Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10
Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10
Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10
Specifications
Brand Name :
FLRS or OEM
Model Number :
FLRS-SB02
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 piece
Payment Terms :
T/T， L/C， Western union， paypal
Supply Ability :
50tons/month
Delivery Time :
8-25days
Packaging Details :
carton/ plywood cases/woven bag+plywood pallets
Product name :
Hex Head Bolt
Standard :
DIN931
Head type :
Hex Head
Thread :
Half thread
Material :
A2-50、A2-70、A4-70、A4-80
Size :
M3-M39
Description

Stainless Steel Hexagon Head Bolts Half Thread In Standard DIN931 / M10 Hex Head Bolt

DIN931 hexagonal bolts, also known as external hexagonal bolts, are fasteners consisting of two parts: a hexagonal head and a screw with external threads, which are generally used in conjunction with nuts and are commonly used to fasten connections between two parts with through holes.

DIN931 hexagonal bolts are half thread. partly threaded and partly bare rod. The thread include coarse and fine teeth.

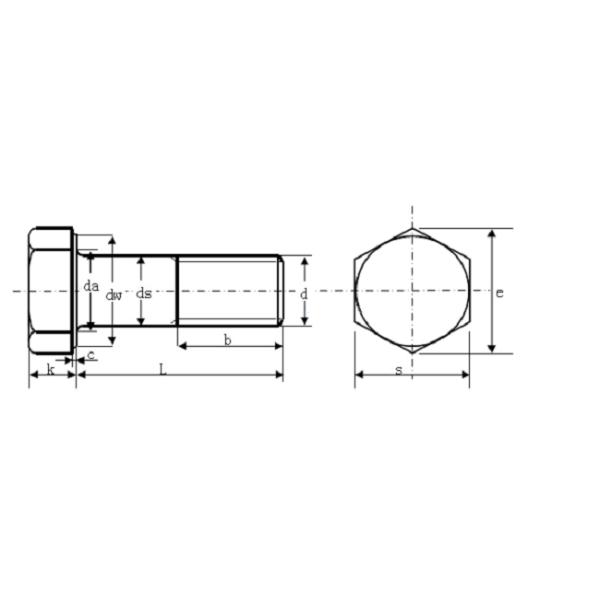

Drawing:

Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10

d P b C da dw ds k 　 e
A B A B A B A B A B
L≤125mm min max max min min min max min max min min
M1.6 0.35 9 0.1 0.25 2 2.4 - 1.46 - 0.98 1.22 - - 3.02 - 3.41 -
M2 0.4 10 0.1 0.25 2.6 3.2 - 1.86 - 1.28 1.52 - - 3.82 - 4.32 -
M2.5 0.45 11 0.1 0.25 3.1 4.1 - 2.36 - 1.58 1.82 - - 4.82 - 5.45 -
M3 0.5 12 0.15 0.4 3.6 4.6 - 2.86 - 1.88 2.12 - - 5.32 - 6.01 -
M3.5 0.6 13 0.15 0.4 4.1 5.1 - 3.32 - 2.28 2.52 - - 5.82 - 6.58 -
M4 0.7 14 0.15 0.4 4.7 5.9 - 3.82 - 2.68 2.92 - - 6.78 - 7.66 -
M5 0.8 16 0.15 0.5 5.7 6.9 - 4.82 - 3.35 3.65 - - 7.78 - 8.79 -
M6 1 18 0.15 0.5 6.8 8.9 - 5.82 - 3.85 4.15 - - 9.78 - 11.05 -
M7 1 20 0.15 0.5 7.8 9.6 - 6.78 - 4.65 4.95 - - 10.73 - 12.12 -
M8 1.25 22 0.15 0.6 9.2 11.6 - 7.78 - 5.15 5.45 - - 12.73 - 14.38 -
M10 1.5 26 0.15 0.6 11.2 15.6 - 9.78 - 6.22 6.58 - - 16.73 - 18.9 -
M12 1.75 30 0.15 0.6 13.7 17.4 - 11.7 - 7.32 7.68 - - 18.67 - 21.1 -
M14 2 34 0.15 0.6 15.7 20.5 - 13.7 - 8.62 8.98 - - 21.67 - 24.49 -
M16 2 38 0.2 0.8 17.7 22.5 22 15.7 15.6 9.82 10.2 9.71 10.3 23.67 23.16 26.75 26.17
M18 2.5 42 0.2 0.8 20.2 25.3 24.8 17.7 17.6 11.3 11.7 11.2 11.9 26.67 26.16 30.14 29.56
M20 2.5 46 0.2 0.8 22.4 28.2 27.7 19.7 19.5 12.3 12.7 12.2 12.9 29.67 29.16 33.53 32.95
M22 2.5 50 0.2 0.8 24.4 30 29.5 21.7 21.5 13.8 14.2 13.7 14.4 31.61 31 35.72 35.03
M24 3 54 0.2 0.8 26.4 33.6 33.2 23.7 23.5 14.8 15.2 14.7 15.4 35.38 35 39.98 39.55
M27 3 60 0.2 0.8 30.4 - 38 　 26.5 - - 16.7 17.4 - 40 - 45.2
M30 3.5 66 0.2 0.8 33.4 - 42.7 　 29.5 - - 18.3 19.1 - 45 - 50.85
M33 3.5 72 0.2 0.8 36.4 - 46.6 　 32.4 - - 20.6 21.4 - 49 - 55.37
M36 4 78 0.2 0.8 39.4 - 51.1 　 35.4 - - 22.1 22.9 - 53.8 - 60.79
M39 4 84 0.3 1 42.4 - 55.9 　 38.4 - - 24.6 25.4 - 58.8 - 66.44

Marking method of DIN931 hexagonal bolts:

Example of marking of DIN931 external hexagon bolts.

The hexagon head bolts with thread size d=M12, nominal length L=80, performance grade A4-80 and product grade A are marked as

SUS316 hexagon bolts DIN931-M12*80-A

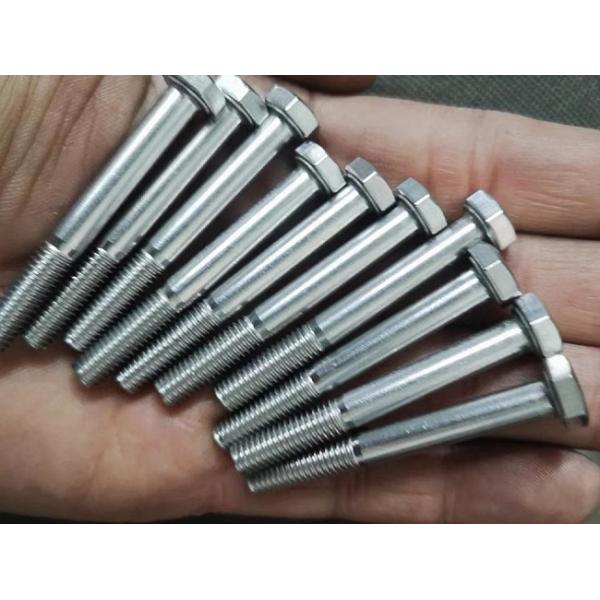

Product photo:

Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10

Application:


Hexagonal bolt connection, simple assembly, easy disassembly, high efficiency, and wide application, mainly used in various mechanical equipment, electronic products, communication equipment, furniture equipment, construction industry and other industries of production, installation, maintenance, etc..
