B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF
B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF
B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF
B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF
B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF
B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF
Specifications
Brand Name :
FLRS or OEM
Model Number :
FLRS-S021
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 pieces
Price :
usd0.1-4 per pc
Payment Terms :
T/T， L/C， Western union
Supply Ability :
80tons/month
Delivery Time :
10-25days
Packaging Details :
carton/ plywood cases/plywood pallets
Size :
1/4"- 1 1/2"
Standard :
ANSI/ASME, EN, DIN, BS,GB, ISO
Finish :
Oxide
Color :
Black
Thread :
UNF
Brand name :
FLRS
Description

Standard B18.31.2 Steel Double Ended Bolt Fine Teeth / UNF Rough Pole Clamping Type Studs

Use of coarse and fine threads:

(1) Fine threads are suitable for anti-vibration and easy to adjust the clearance, but the locking force is worse than coarse threads. It is suitable for applications where the clearance or torque is to be adjusted.

(2) Coarse threads have a poorer self-locking ability than fine threads, but the locking force is greater than fine threads. Generally there is no special requirement to use coarse threads.

Data:

Standard ANSI/ASME, JIS, EN, DIN, BS,GB, SH, HG, IFI, ISO
Size Standard & non-standard, customized
Material Carbon steel
Grade 4.8,6.8,8.8,10.9,12.9
Thread UNC,UNF,BSW
Finish Black oxide
Packing cartons on pallet or wooden case
Test Equipments Desktop direct- reading spectrometer, cutting machine, automatic pre- milling machine, polishing machin,
hard-testing gauge(Vickers), metallography microscope, electrolytic thickness gauge, tensile testing machine,
salt spray device, magnetic detection machine(magnetic particle flaw detector), Caliper, Go&No-go gauge and etc.
Supply Ability About 80 tons per month
MOQ 5pcs
Trade Term FOB/CIF/CFR/CNF/EXW/DDU
Payment T/T, L/C ,D/P , Western Union

ASME/ANSI B18.31.2-2 Rough pole clamping type studs fine teeth-Table 2B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF

d 1/4 5/16 3/8 7/16 1/2 9/16 5/8
p 28 24 24 20 20 18 18
c max 0.071 0.083 0.083 0.1 0.1 0.111 0.111
ds max 0.25 0.3125 0.375 0.4375 0.5 0.5625 0.625
ds min 0.243 0.304 0.367 0.428 0.491 0.552 0.615
d 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2
p 16 14 12 12 12 12 12
c max 0.125 0.143 0.167 0.167 0.167 0.167 0.167
ds max 0.75 0.875 1 1.125 1.25 1.375 1.5
ds min 0.739 0.863 0.987 1.112 1.237 1.362 1.487

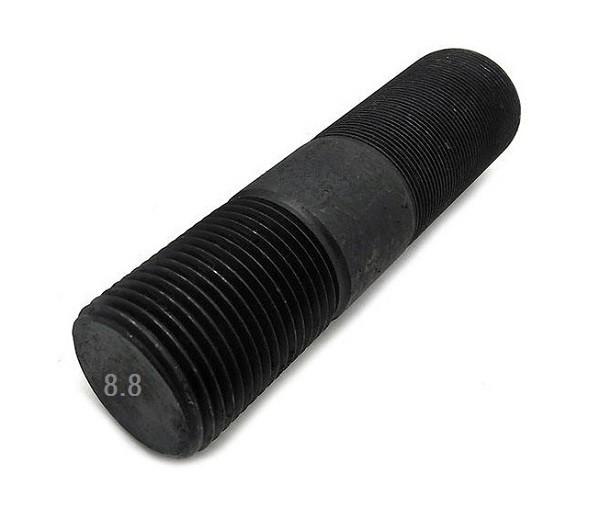

Product Picture:

B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF

B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF

Package:

B18.31.2 Steel Double Ended Bolt Fine Teeth Rough Pole Clamping Studs UNF
