Specifications
Brand Name :
FLRS or OEM
Model Number :
FRC-009
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 piece
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
50000sets/month
Delivery Time :
5-20DAYS
Packaging Details :
carton/ plywood cases/plywood pallets
Name :
Single Plate-Type Repair Clamp
Material :
SS304+EPDM/NBR
Pressure :
PN10-PN16
liner :
EPDM/NBR
Type :
Single Plate Type
Size :
DN50-DN300
Fastener Material :
SS201/SS304
Description

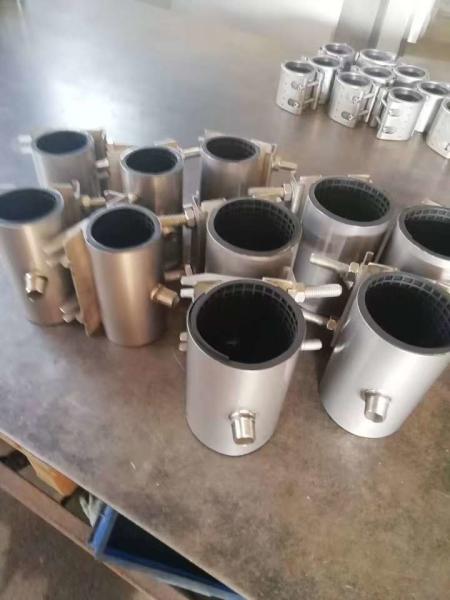

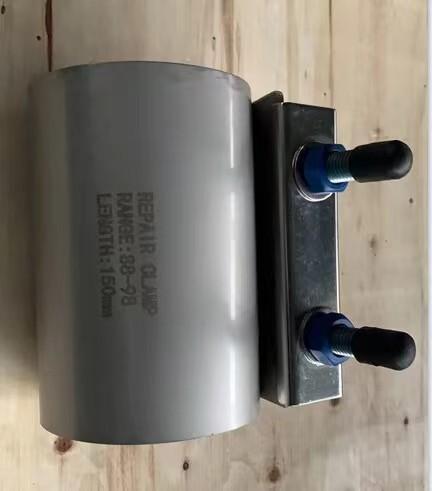

Pipe Clamp Single Plate-Type With Stainless Steel Material For Straight Pipes

It is mainly suitable for quick repair of the leakage for straight pipes.Leaking stoppage works can be done with the pressure and without the welding.It's away from the fire and explosion hazard.The special design of the internal grid double-arc rubber plate and its shell lengthened the repair size.The repair pipes have a wide range of diameters,low requirements for pipelines arc but strong generality.It is especially suitable for those working conditions such as continuous leakage caused by the aging and corrosion of the pipelines,longer damaged cracks,non-standard outer diameter of the pipelines and special calibers.It is installed quickly and conveniently,cost-saving and high cost-effectiveness.

Product Specification:

适用管径

Applicable Pipes Diameter		 工业允用压力
Allowable Pressure of Industry		 长度范围
Length Range		 螺 栓

Bolt		 扭 矩

Torque
ODmin-ODmax(mm) WP(bar) S(MM) M NM
59-67 1.6
150mm-600mm		 12 50
65-73 1.6 150mm-600mm 12 50
69-76 1.6 150mm-600mm 12 50
75-83 1.6 150mm-600mm 12 50
86-94 1.6 150mm-600mm 14 80
108-118 1.6 150mm-600mm 14 80
113-121 1.6 150mm-600mm 14 80
121-131 1.6 150mm-600mm 14 80

126-136		 1.6 150mm-600mm 14 80
132-142 1.6 150mm-600mm 14 80
145-155 1.6 150mm-600mm 14 80
151-161 1.6 150mm-600mm 14 80
159-170 1.6 150mm-600mm 14 80
166-177 1.6 150mm-600mm 14 80
170-180 1.6 150mm-600mm 14 80
174-184 1.6 150mm-600mm 14 80

179-189		 1.6 150mm-600mm 14 80
189-199 1.6 150mm-600mm 14 80
218-228 1.6 150mm-600mm 16 100
222-233 1.0 150mm-600mm 16 100
229-239 1.0 150mm-600mm 16 100
236-246 1.0 150mm-600mm 16 100

248-258		 1.0 150mm-600mm 16 100
250-260 1.0 150mm-600mm 16 100
252-263 1.0 150mm-600mm 16 100
261-271 1.0 150mm-600mm 16 100
271-281 1.0
150mm-600mm		 16 100
280-291 1.0 150mm-600mm 16 100
288-298 1.0 150mm-600mm 16 100
298-309 1.0 150mm-600mm 16 120

300-310		 1.0
150mm-600mm		 16 120
304-314 1.0 150mm-600mm 16 120
321-331 1.0 150mm-600mm 16 120
333-343 1.0 150mm-600mm 16 120
340-351 1.0 150mm-600mm 16 120
348-358 1.0 150mm-600mm 16 120
356-366 1.0 150mm-600mm 16 120

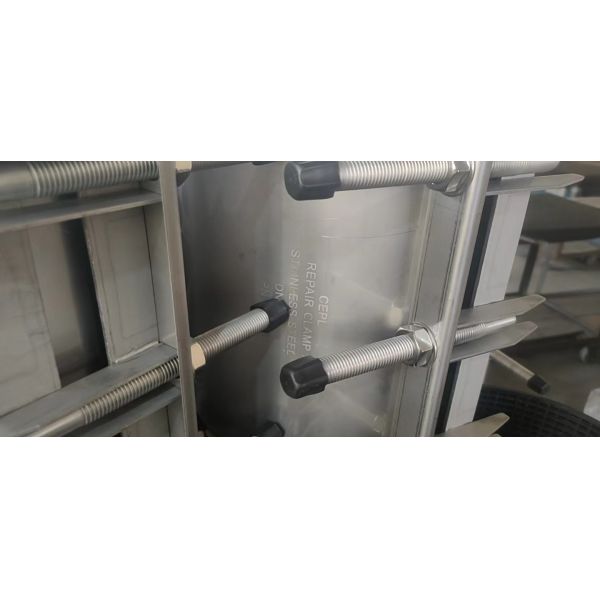

PN10-PN16 Pressure Stainless Steel Pipe Clamp for Straight Pipes Single Plate-Type SS304 EPDM/NBR

PN10-PN16 Pressure Stainless Steel Pipe Clamp for Straight Pipes Single Plate-Type SS304 EPDM/NBR

PN10-PN16 Pressure Stainless Steel Pipe Clamp for Straight Pipes Single Plate-Type SS304 EPDM/NBR

Applications:

Pipeline repair in the fields such as shipping,oil field,chemical industry,water supply and drainage,factory,mines,fire-fighting,natural gas,,electric power,mechanical equipment,home etc.
