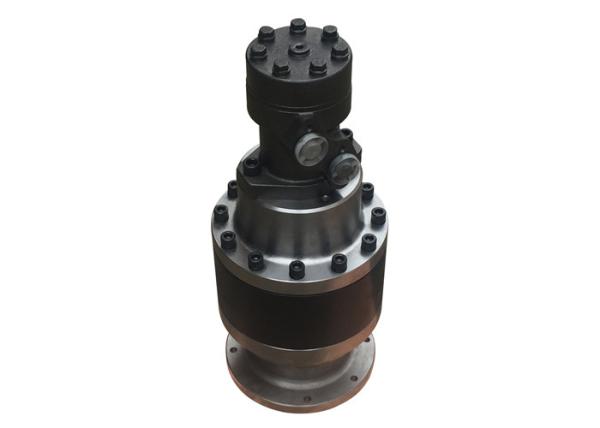

300rpm Hydraulic Drive Motor 3MPa Transmission Reducer 2600 N.m
300rpm Hydraulic Drive Motor 3MPa Transmission Reducer 2600 N.m
300rpm Hydraulic Drive Motor 3MPa Transmission Reducer 2600 N.m
300rpm Hydraulic Drive Motor 3MPa Transmission Reducer 2600 N.m
300rpm Hydraulic Drive Motor 3MPa Transmission Reducer 2600 N.m
300rpm Hydraulic Drive Motor 3MPa Transmission Reducer 2600 N.m
Specifications
Brand Name :
WEIWO
Model Number :
D301PL1
Certification :
ISO9001:2008
Place of Origin :
NINGBO,CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Standard Export Wooden Case
TYPE :
HYDRAULIC REDUCER
COLOR :
CUSTOMIZED
SPEED :
300 rpm
MAX TORQUE :
2500-2600 N.m
RATED TORQUE :
2000 N.m
PRESSURE :
2-3MPa
Description

Part Name: Max input speed 300 rpm Hydraulic Transmission Reducer

Part name:hydraulic transmission reducer

Part model:D301PL1

Special application: climbing vehicles such as rotation

Scope of use:

D300PL1 series rotary reducer can be widely used in all kinds of mechanical transmission, mining, construction, engineering machinery,lifting transportation equipment, metallurgy, petroleum coal mine, Marine machinery, geological drilling and other machinery hydraulic transmission.

Technical parameters are shown in the following table:

Model

Reduction ratio

(i)

 Max input speed (rpm)

Rated torque

(N.m)

Max torque

(N.m)

Brake opening pressure

(Mpa)
D301PL1 4.25-5.33 300 2000 2500 2-3

The main output shaft forms of the product are A= involute, B= flat bond, P= spline outside the rectangle, I= spline inside the rectangle.

Input form can be B for cycloidal motor, A for high-speed motor, E for motor, the motor can be required with brakes or not, both forms can be realized.

D300P series rotary reducer is specially produced for pump trucks, ships, climbing trucks, and other special vehicles and engineering machinery development of the transmission device.It uses hydraulic motors, brakes, multistage reducer and output shaft, and uses design idea of the split system for hydraulic control, with good standardization, good compatibility, compact structure, large torque, small size, light weight, easy installation, high reliability and other advantages.This series can replace the same type of foreign rotary reducer, products have been already in mass production, welcome customers from all over the world to visit and choose.
