FC - 0208 wide groove sinter metal PTFE banded piston , powder metallurgy products
FC - 0208 wide groove sinter metal PTFE banded piston , powder metallurgy products
FC - 0208 wide groove sinter metal PTFE banded piston , powder metallurgy products
FC - 0208 wide groove sinter metal PTFE banded piston , powder metallurgy products
FC - 0208 wide groove sinter metal PTFE banded piston , powder metallurgy products
FC - 0208 wide groove sinter metal PTFE banded piston , powder metallurgy products
Specifications
Brand Name :
WEIWO
Model Number :
Customized sinter piston
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50,000pcs per month
Delivery Time :
30 working days for new samples
Packaging Details :
1. put piston one by one into the environmental plastic box 2. put six boxes into the standard carton
Product Name :
sinter piston
material :
Iron based, iron
Application :
Shock absorber
Molds Time :
25 days
Plating :
Steam treatment
Process :
CNC machining
Hardness :
HRB75
Density :
6.8g/cm3
Description

FC - 0208 wide groove sinter metal piston banded PTFE bands in car shocks

Specifications:

Material

P/M Copper and Copper Alloys

P/M Iron and Carbon Steel

Iron And Carbon Steel

Iron-Copper And Copper Steel

Sinter Hardened Steel

Commix Low Alloy Steel

Surface treatment

Sand Blasting

Zinc/Chrome Plating

Rust-preventive treatment (steaming treating)

Painting

Electrophoresis

Powder Coating

Description:

Shock absorber piston

Conventional design

With PTFE banded on OD

We can produce according to the customer's drawing

Middle part (sinter part), we can use the material as the customer's demand

Carbon content is 0.1%, copper content is 3% or other choice

We are specializing in producing damper pistons. Our products are not only selling well in many cities in China, but also exported to many overseas countries and regions, such as Africa, South America, Southeast Asia and the Middle East. Our enterprise is trying our best to provide higher quality products at lower price, and bring you satisfactory customer service. We always optimize our products to meet different requirements of customers. We also provide OEM services. We do business in good faith and enjoy a good reputation for our good after-sales service.

After PTFE banding processing performance can satisfy the following:

1) Stress cracking test 150ºС*500 hours
2) Drawing load test: 39.2 MPa x 10,000cycles

3) High velocity operation durability test: 1,000,000 cycles

4) Regular operating durability test: 3,000,000 cycles

No band peel off or breakage after test.

Applications:

1. Automotive Part

2. Motorcycle Part

3. Heavy duty trucks

Competitive Advantage:

Complex multi-level design

Can absorb most shake when driving

Significant increase in lifetime

Flexile and convenient logistic service

Standard material according to technical drawing

Increased seal durability

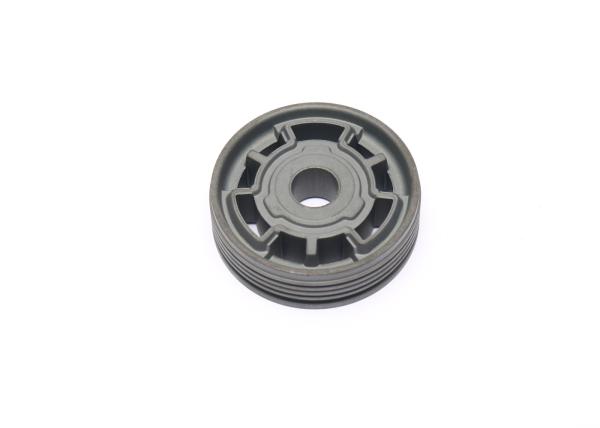

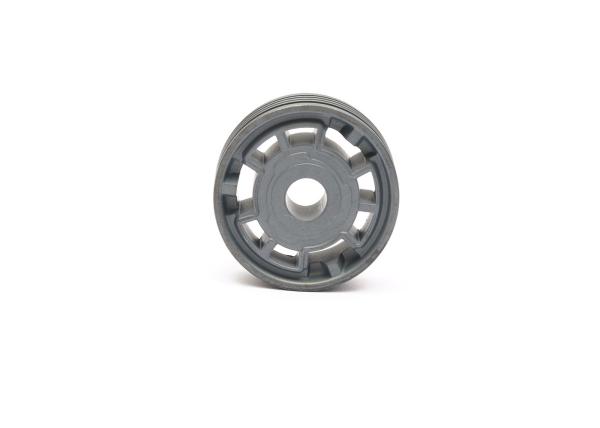

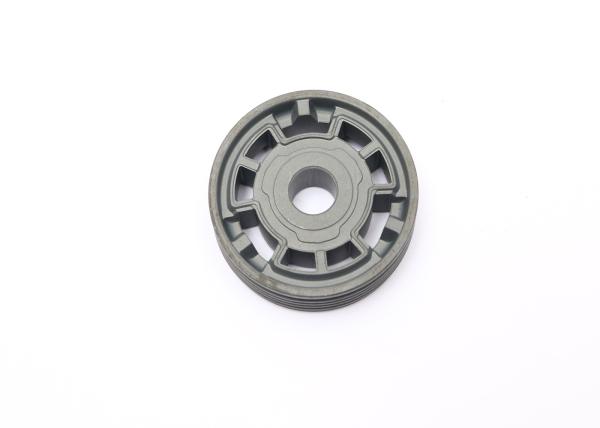

Picture show:

FC - 0208 wide groove sinter metal PTFE banded piston , powder metallurgy products
