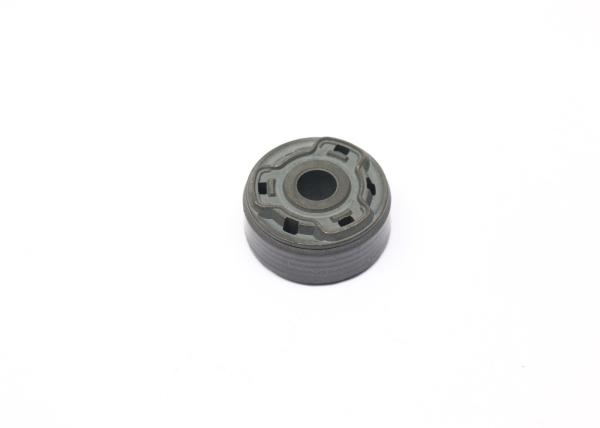

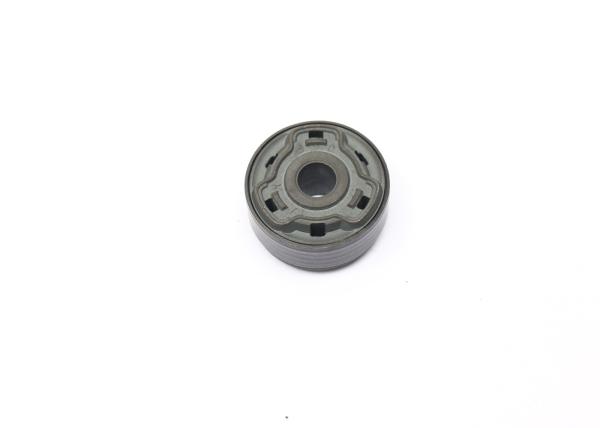

Pass blow off testing Banded Piston With good seal and Four Oil Holes Design 27mm

Banded piston can do slide resistance test according to the customer's demand.

piston should slide down uniformity both in positive and contrary direction,no damping stagnation.

Testing demand:

test velocity is 3mm/min,Static strength damage:11.27KN

net weight is 23.60g

Manufacturability:

1. Auto Mechanical Press:50T, 100T, 140T

2. Hydraulic Press:100T, 315T, 600T, 800T

3. Six sinter furnaces, including one harden Sinter Furnace

4. Heat treatment:Carbonitriding quenching and high frequency quenching

5. Ultrasonic clearing and auto deburring

6. In-house tooling making:EDM, wire cutting machine

7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.

Specifications:

Description:

High temperature resistance, two holes design D31 cars Shock Absorber Piston

We are a professional factory engaging in producing shock absorber pistons, with many years experiences in this line.

As we know, shock absorbers play a large part in the performance of the vehicle and are therefore

advised for a routine check up at regular intervals.

We can offer you the pistons with good quality and fit for the different road condition. We choose

advanced material and this provides long seal life, contributing to shock absorbers that can meet the

demands from car manufacturers of one hundred thousand kilometers before replacement.

SPEC: D27XD7.2X10

Two holes design

Symmetrical distribution

Surface roughness Ra<3.0μm

Net weight is 23.52g

Here is the physical property of PTFE rings:

Tensile strength ≥23N/mm2

Carrying capacity ≥15N/mm3

Working temperature -80°C to 260°C

Friction coefficient (dry) ≤0.16

Advantage:

1. Wide temperature range/high temperature resistance

2. Standard material according to technical drawing

3. OEM quality standard guarantee

4. Sample purpose order accepted

5. Complex multi-level design

6. Reduces friction and ensure smooth rod reaction

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

Fast delivery

Good quality

Professional team with much experience

Technical process

Picture show:
