Household Injection Molding Plastic And Rubber Parts For Sewing Machine
Household Injection Molding Plastic And Rubber Parts For Sewing Machine
Household Injection Molding Plastic And Rubber Parts For Sewing Machine
Household Injection Molding Plastic And Rubber Parts For Sewing Machine
Household Injection Molding Plastic And Rubber Parts For Sewing Machine
Household Injection Molding Plastic And Rubber Parts For Sewing Machine
Specifications
Brand Name :
WEIWO
Model Number :
PTFE-J0727
Certification :
ISO9001:2008
Place of Origin :
Ningbo , China
MOQ :
1,000pcs
Price :
consult
Payment Terms :
T/T
Supply Ability :
10,000pcs per day
Delivery Time :
7 working days for new samples
Packaging Details :
Packed in nylon bag
Product Name :
sewing machine parts
Material :
pure PTFE
Production :
injection
Application :
household
Color :
White
Dielectric constant :
1.95-2.10
Shape :
OEM
Out diameter :
Customized
Description

Injection molding PTFE parts of 2.4g / cm3 with good lubrication and insulation

Specifications:

Material

PTFE

Color

White, black or any other

High and low temperature resistance

-200 - 260°C

Processing

Machine or by mold

Dynamic friction coefficient

0.2-0.3

1. Custom Your Own Brand

2. International Quality Standard

3. Factory Price

4. Short Lead Time

Description:

PTFE Gasket Ring

Size: As customer's demand

Material: PTFE resin

Function: Good quality

Certificate: ISO9001 & TS16949

Of all the known plastics, PTFE parts has some remarkable properties: it will not attacked by corrosive

acids, even if they were hot; it did not dissolve in solvents; it could be cooled to -180°C without becoming

brittle and it could be heated to 260°C without impairing its performance. PTFE materials also are

extremely stable and nonflammable; clean, dry, non-oily and non-staining. The material is biologically

inert and does not support biological growth (that is, it is non-pyrogenic). PTFE offer an extremely low

static coefficient of friction, which stems from the extremely low intermolecular forces in the PTFE

molecule itself.

Apparent Density: 2.1 ~ 2.3 g/cm3

Tensile Strength: ≥ 14.0 Mpa

Ultimate Elongation: ≥ 140%

Temperature: -20° F to 500° F (-180°C to 260°C)

PTFE filled with other materials:

Filled materials

Common filled ratio

( Quantity %)

 Main performances
Bronze 40, 60 Increases hardness and wear resistance;
Increases dimensional stability and compressive strength;
Not suitable for corrosive or electrical applications
Carbon 5, 10, 15 Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance; Improves electrical properties.
Graphite 5, 10, 15 Improves the deformation under load; Reduces initial wear;
Improves thermal and eletrical conductivity
Glass Fiber 10, 15, 25 Increases compressive strength, rigidity and wear.
Reduces creep and cold flow; Improve Dimensional Stability.
Carbon Fiber 10 , 15, 25 Increases compressive strength, hardness, wear, and load properties.
Reduces creep and cold flow
POB
(polyphenyl ester)		 5, 10, 15

Improve the lubrication performance; Enhance the mechanical strength;

Increase using temperature
BaSO4 5, 10, 15 Increases compressive strength, hardness and wear resistance
Reduces creep
SiO2 5, 10, 15 Increases hardness and wear resistance; Improve Dimensional Stability.
Glass beads 5, 10, 15 Reduces creep and cold flow; Lower density
Increases hardness and wear resistance;
Others materials PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok
Remarks Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us.

Applications:

1. Chemical machine equipment industries: widely applied in the bearing of paper-making machine and

agricultural machine, as the piston ring, machine tool oriented rail and oriented ring.

2. Electronic and electrical industries: can make insulated wire, capacitor, radio insulated gasket,

insulated cable, and the parts of transformer, oxygen sensor, microphone, loudhailer and robot.

Competitive Advantage:

1. Low MOQ: It can meet your business very well

2. OEM accepted: Just provide drawing or sample

3. Good service: We treat clients as friends

4. Good quality: We have strict quality control system. Good reputation in the market

5. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008

6. Fast and cheap delivery: We have big discount from forwarder(Long Contract)

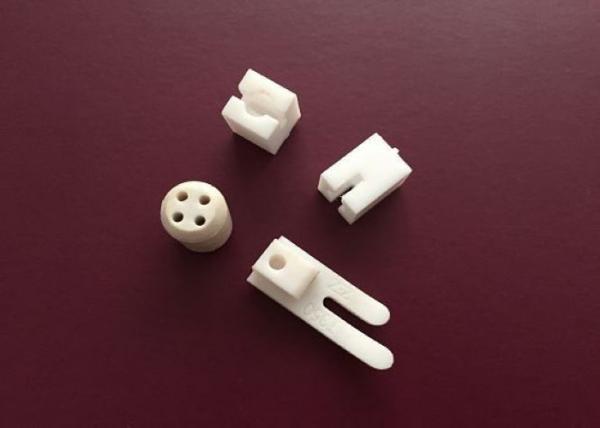

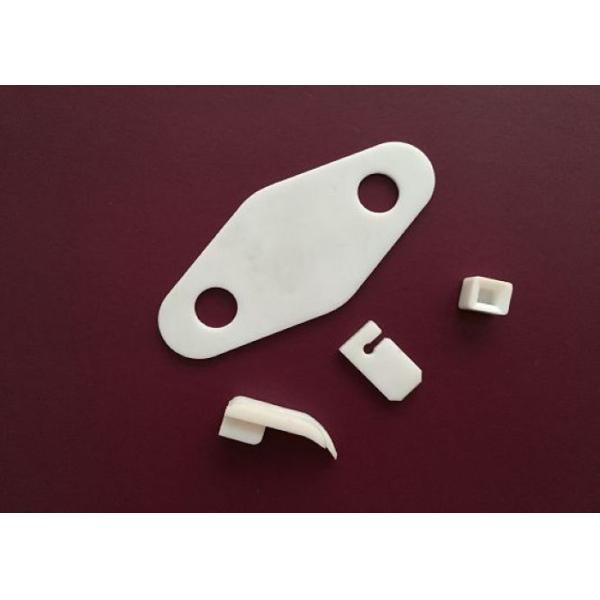

Pictures show:

Household Injection Molding Plastic And Rubber Parts For Sewing Machine
