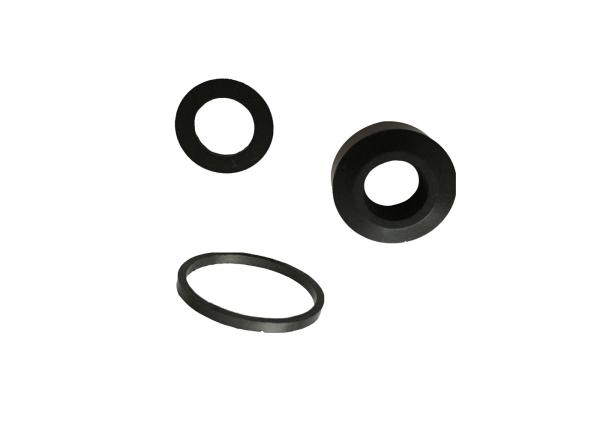

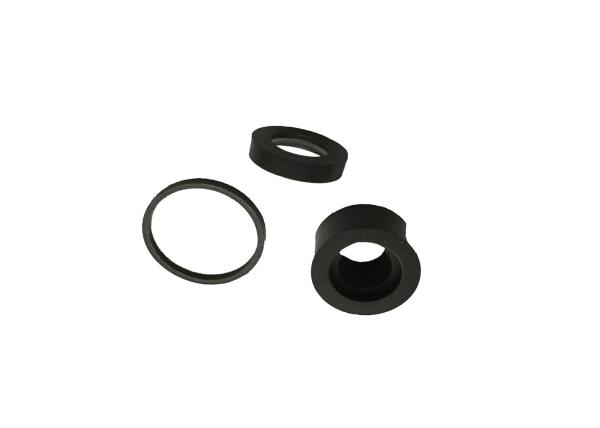

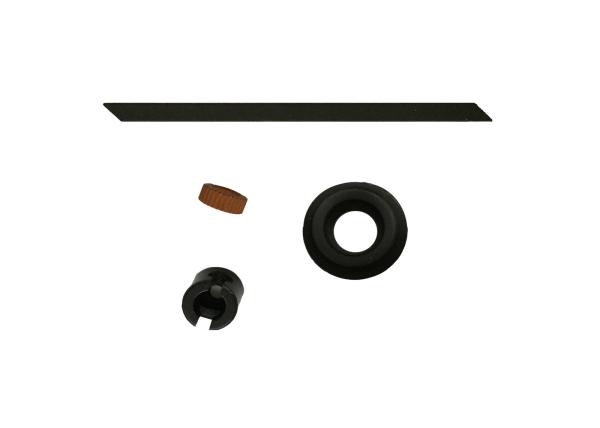

PTFE Machining CNC Turning Carbon Seal Rings Anti Aging 15MPa
PTFE Machining CNC Turning Carbon Seal Rings Anti Aging 15MPa
PTFE Machining CNC Turning Carbon Seal Rings Anti Aging 15MPa
PTFE Machining CNC Turning Carbon Seal Rings Anti Aging 15MPa
PTFE Machining CNC Turning Carbon Seal Rings Anti Aging 15MPa
PTFE Machining CNC Turning Carbon Seal Rings Anti Aging 15MPa
Specifications
Brand Name :
WEIWO
Model Number :
PTFE-J0808
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1,050pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100,000pcs per month
Delivery Time :
10 working days for new samples
Packaging Details :
Packed in plastic box one by one, then in carton with standard export package
Product Name :
PTFE parts
Material :
PTFE plus filler
Filler :
graphite,carbon, bronze,glass fiber
Application :
industrial
Plastic Modling Type :
mould
Mold time :
7 days
Density :
2.10-2.30g/cm3
Temperature :
-180 - + 260 ℃
Description

Density 2.10 - 2.30 anti aging PTFE PTFE Parts custom machining cnc turning

Specifications:

chemical resistance

temperature resistance

minimum friction coefficient

weathering resistance

Custom specifications

Diameter ≤3000mm
Thickness 0.1-10mm

Technical Indexes

Properties Unit Result
Apparent density g/cm3 2.10-2.30
Tensile strength (min) MPa ≥15
Ultimate elongation (min)(min) % ≥150

1. PTFE bellows mechanical shaft seals

2. Equivalent to JC 10T types

3. Temperature resistance

4. High diaphaneity

5. Popular in USA, UK, Brazil, Asia, Africa

Description:

PTFE bellows mechanical shaft seals are suitable for corrosive and aggressive media, which are outside

mounted with no metal parts in contact with the medium. Stationary seat is Clamp or L-Shape.

1. Common Combined Materials:

Stationary ring: Sic or Ceramic

Rotary ring: Sic or PTFE / Fiberglas (Carbon-graphite)

Secondary seal: PTFE

Others: SS304 or SS316

2. Operating conditions:

Temperature: ≤120°C

Pressure: ≤0.5MPa

Speed: ≤10m/s

We can produce following different kinds of PTFE parts:

Filled PTFE parts

PTFE sleeve

PTFE seals and gasket

PTFE diaphragm

Standard Gasket

ENSI (PN2.0) mm EU Standard(PN1.6) JIS (16K) JIS(10K)
Nomi-
nal Dia		 OD ID T N.W. Nomi-
nal Dia		 OD ID T N.W. Nomi-
nal Dia		 OD ID T N.W.

Nomi-

nal Dia

 OD ID T N.W.
DN15 46.5 22 3 0.01 DN10 46 18 3 0.01 DN10 53 18 3 0.014 DN10 53 18 3 0.014
DN20 56 27 3 0.015 DN15 51 22 3 0.012 DN15 58 22 3 0.016 DN15 58 22 3 0.016
DN25 65.5 34 3 0.02 DN20 61 27 3 0.016 DN20 63 28 3 0.017 DN20 63 28 3 0.017
DN32 75 43 3 0.023 DN25 71 34 3 0.021 DN25 74 35 3 0.023 DN25 74 35 3 0.023
DN40 84.5 49 3 0.03 DN32 82 43 3 0.027 DN32 84 43 3 0.028 DN32 84 43 3 0.028
DN50 104.5 61 3 0.05 DN40 92 49 3 0.033 DN40 89 49 3 0.03 DN40 89 49 3 0.03
DN65 123.5 77 3 0.053 DN50 107 61 3 0.042 DN50 104 61 3 0.038 DN50 104 61 3 0.038
DN80 136.5 89 3 0.06 DN65 127 77 3 0.055 DN65 124 77 3 0.051 DN65 124 77 3 0.051
DN100 174.5 115 3 0.13 DN80 142 89 3 0.066 DN80 140 90 3 0.062 DN80 134 90 3 0.053
DN125 196 140 3 0.14 DN100 162 115 3 0.07 DN90 150 102 3 0.066 DN90 144 102 3 0.056
DN150 221.5 169 3 0.15 DN125 192 141 3 0.092 DN100 165 115 3 0.076 DN100 159 115 3 0.065
DN200 278.5 220 3 0.18 DN150 218 169 3 0.105 DN125 203 141 3 0.116 DN125 190 141 3 0.088
DN250 338 273 3 0.25 DN200 273 220 3 0.145 DN150 238 167 3 0.156 DN150 220 167 3 0.111
DN300 408 324 3 0.35 DN250 329 273 3 0.182 DN200 283 218 3 0.176 DN175 245 192 3 0.125
DN350 449 356 3 0.45 DN300 384 325 3 0.226 DN250 356 270 3 0.291 DN200 270 218 3 0.137
DN400 513 407 3 0.55 DN350 444 377 3 0.3 DN300 406 321 3 0.34 DN225 290 244 3 0.133
DN450 548 458 3 0.5 DN400 495 426 3 0.343 DN350 450 359 3 0.4 DN250 333 270 3 0.205
DN500 605 508 3 0.6 DN450 555 480 3 0.419 DN400 510 410 3 0.5 DN300 378 321 3 0.215
DN550 659 559 3 0.7 DN500 617 530 3 0.539 DN450 575 460 3 0.643 DN350 423 359 3 0.27
DN600 716.5 610 3 0.8 DN600 734 630 3 0.766 DN500 630 513 3 0.722 DN400 486 410 3 0.368

PTFE filled with other materials:

Filled materials

Common filled ratio

( Quantity %)

 Main performances
Bronze 40, 60 Increases hardness and wear resistance;
Increases dimensional stability and compressive strength;
Not suitable for corrosive or electrical applications
Carbon 5, 10, 15 Increases compressive strength, hardness, wear, and load properties.
Good chemical resistanc
