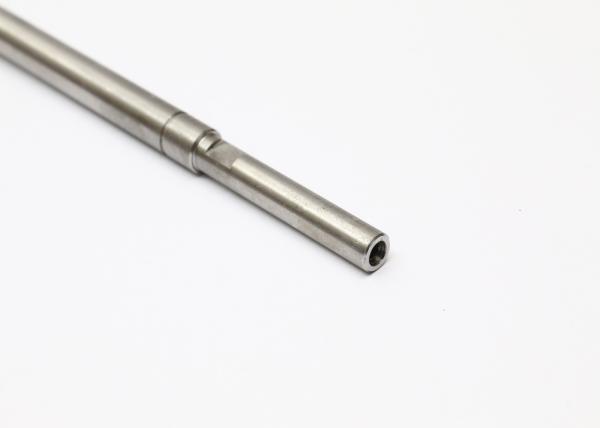

Hardened Steel Linear Polishing Knurled Mechanical Core Shafts HRC 62 15um
Hardened Steel Linear Polishing Knurled Mechanical Core Shafts HRC 62 15um
Hardened Steel Linear Polishing Knurled Mechanical Core Shafts HRC 62 15um
Hardened Steel Linear Polishing Knurled Mechanical Core Shafts HRC 62 15um
Hardened Steel Linear Polishing Knurled Mechanical Core Shafts HRC 62 15um
Hardened Steel Linear Polishing Knurled Mechanical Core Shafts HRC 62 15um
Specifications
Brand Name :
WEIWO
Model Number :
K30-50-2006
Certification :
IATF16949
Place of Origin :
NINGBO
MOQ :
150 sets
Price :
can be discussed
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per day
Delivery Time :
15-25days after PO confirmed
Packaging Details :
10-50 PCS in one carton or plastic blister tray, outside wooden pallet or wooden box.
Outer Diameter :
20MM
Total Length :
310MM
OD of one end :
M14 X 1.5
OD of another end :
M10 X 1.25
Material :
S 45 C
HRC :
> 48
Description

Custom precision hardened steel linear small shaft polishing knurled shaft

Material can be:

45# steel, 35# steel, stainless steel, 40Cr, 42Cr, etc.

Size:

size of the inner hole can be customized according to the demand

Performance process:

surface quenching, quenching and tempering heat treatment

surface process:

chromium plating, nitride and other processes, according to the drawings can be detailed

Descriptions of Chrome Plating Shaft Core Parts

Product Name: Plain Linear Shaft
Material: Carbon Steel S45C or Bearing Steel Gcr15
Hardness: HRC60 °- 62°
Roundness: Within 3.0μm
Straightness: Not exceed 5μm of 1000mm
Thinkness of Coating : 15μm--20μm
Surface Roughness : Within 1.4μm
Outer Diameter Tolerance: g6
Surface Hardening Thickness: 0.8-3.5mm
Note: we can offer both the solid shaft and the hollow one. The diameter of the hollow one is at least 12mm.however, we also can process the special shafts whose ends are stepped.

Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging

Description:

Surface treatment Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding…
Quality Assurance IATF16949:2016 certified/SGS/TUV
Drawing formats Solid works, Pro/Engineer, AutoCAD, UG, PDF

Equipment used

 Japan 5-axis TSUGAMI-B-038T CNC turing machine
Japan 4-axis GAMA DMN-650 machining center
Cylindrical Bore Grinders
Wire EDM
Magnetic grinding machine/ grinding Vibration machining
Oven
Ultrasonic cleaning machine
Vacuum packing machine

Inspection device

 VMS2.5d measuring machine
Japan Mitutoyo tool microscope
Japan Mitutoyo digimatic micrometer
Japan Mitutoyo hardness tester
Japan Mitutoyo calipers
Japan Mitutoyo dial indicator
Japan Mitutoyo height measuring tool
Japan Mitutoyo tubular inside micrometer
Japan Marble platform
Go No Go gauge
Electronic digital display caliper Ring gauges

Industry used

 Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication…

Advantages:

1. Always being Reliable, Professional and Proactive.
2. More than 15 years in the CNC precision machining industry.
3. Japan Tsugami CNC machines, with cutting edge CNC solution.
4. IATF16949 : 2016 Quality control system, we not only provide qualified products, but also care about perfect looking surface.

Hardened Steel Linear Polishing Knurled Mechanical Core Shafts HRC 62 15um

Hardened Steel Linear Polishing Knurled Mechanical Core Shafts HRC 62 15um

Other questions:

Q1. How long can I get some samples for checking and what about the price?

A1: Normaly samples will be done within 1-2 days (automatic machining parts) or 3-5 day (cnc machining parts). The sample cost depends on all information (size, material, finish, etc.). We will return the sample cost if your quantity is good.

Q2. How to get an accurate quotation?

A2: If you are interested in our products, please provide us with below information:
Drawings, photos or samples of products.
Detailed sizes of products.
Material of products.
Surface treatment of products.
Ordinary purchasing quantity.

Q3. What's the Advantage of Your Parts for Industry Products?

A3: Our advantage is the competitive prices, fast delivery and high quality. Our employees are responsible-oriented, friendly-oriented,and dilient-oriented. our Industrial parts products are featured by strict tolerance, smooth finish and long-life performance.

Picture:

Hardened Steel Linear Polishing Knurled Mechanical Core Shafts HRC 62 15um
