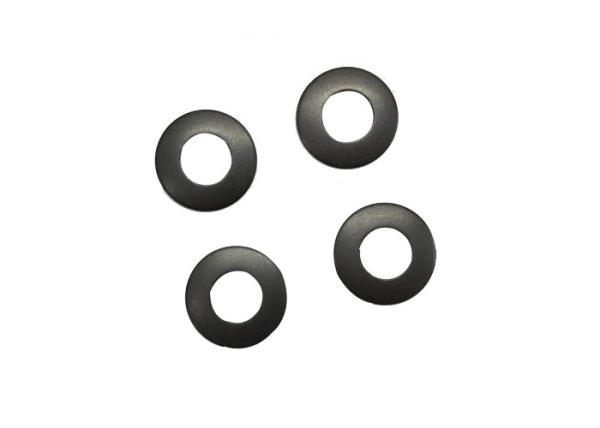

High Temp Resist PTFE Ring Gasket With Density 2.15 Used To Band PTFE On Pistons
High Temp Resist PTFE Ring Gasket With Density 2.15 Used To Band PTFE On Pistons
High Temp Resist PTFE Ring Gasket With Density 2.15 Used To Band PTFE On Pistons
High Temp Resist PTFE Ring Gasket With Density 2.15 Used To Band PTFE On Pistons
High Temp Resist PTFE Ring Gasket With Density 2.15 Used To Band PTFE On Pistons
High Temp Resist PTFE Ring Gasket With Density 2.15 Used To Band PTFE On Pistons
Specifications
Brand Name :
WEIWO
Model Number :
Customized PTFE gaslet
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1,000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50,000pcs per day
Delivery Time :
one week for new samples
Packaging Details :
Packed in plastic bag, then in carton with standard export package
Product Name :
PTFE ring
Material :
Carbon filled PTFE
Elongation @ break :
More than 140%
Application :
shock absorber
Highest sintering Temp. :
375℃
Hardness :
57-61
Tensile strength :
More than 14MPa
OD :
36mm
Description

high temp resist PTFE ring gasket with density 2.15 used to band PTFE on pistons

Specifications:

properties

unit

result

Apparent density

g/cm3

2.10-2.30

Tensile strength(min)

MPa

15.0

Ultimate elongation(min)

%

150

Working Temp.

℃

-180~260

Melting point

℃

327

Produce Max Temp.

℃

385

Size

mm

20mm~400mm

1. Good sealing effect in Dynamic and static sealing

2. Minimal start-up and movement friction, smooth movement even at low speeds, no creeping

phenomenon.

3. Good abrasion.

4. Excellent sliding performance.

5. Easy to installation

Description:

China Molding and Machining PTFE parts

PTFE custom made

Fluoropolymer molding parts manufacturers

Production of PTFE parts and component

High quality PTFE OEM service

Produced by customer's design

Characteristic:

Excellent chemical stability and electric insulation;

Excellent self lubrication and heat stability;

Excellent ageing-resistance performance and radiation resistance

Color: Natural color or as customer's requirement

Size: Standard size or as customer's requirement

Manufacture method: Injection or machinery process

Packing: standard packing or customized package

Sample: similar size for test or customized samples can be offered

Lead time: 10~25days

Application:

1. Corrosion-resistant pipe and fittings: pipes, pipe connections, feeding tubes, discharge tubes, wires and other flexible casing;

2. Chemical devices: a heat exchanger, distillation unit (tower reactor, pylon, heat exchangers, tanks, valves, elbows, tees, etc)

3. Electrolytic membrane, gas dialysis membrane, oil and water membrane, etc.

Can also be used as:

A. Shafts

B. Valve Components

C. Automatic Door Components

D. Cable/ Electronic Connector

E. Fire Suppression System Components

F. Fittings/ Fasteners

Competitive Advantage:

Professional manufacturer for many years

Quality control and cost control

Short delivery

Factory price
