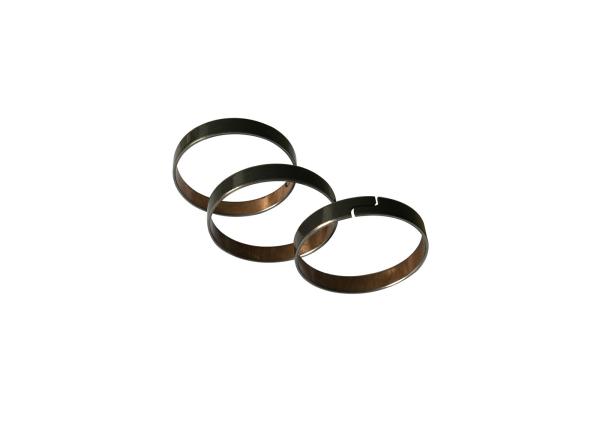

PTFE Liner Steel Bushing With Inner Layer Copper Plated And Wall Thickness 1.5 mm

Technical requirements:

1. Remove burrs and sharp edges

2. Anti rust oil treated before shipping

3. Checked the split 0.2 (+0.2/0) when the bush is pressed into the 60mm gauge

4. Wall thickness measured by micrometer 1.5 (+0.005/-0.04)

5. PTFE on OD, inner layer copper plated

6. OD 60-62.5 at the free state

1. DU bushing Bearing

2. Full range of size and customized

3. High quality OEM manufacturer with much experience

Description:

1. High thermal conductivity, high load carrying capacity.

2. Excellent chemical resistance.

3. ROSH and ISO 9001: 2000

A type of DU bushing

It's also called PTFE bearing, DU bush and PTFE lined dry sliding bearing, SF-1 bearing, oil free bushes.

Self-lubricating bearing has a common structure with other DU bearing.

Characteristics:

Good wear and friction performance over a wide range of loads, speeds and temperature without oil

Also perform well with lubrication

Maintenance-free, long life

Availability:

Standard cylindrical bushing, flanged bush, thrust washers and strips are available.

Lead free type is also available

All special designs are produced according to your requirement

High wear resistance

Packaging Detail:

1. Anti-rust oil or tin plating

2. Rolled by high quality plastic paper or put into plastic bag

3. Plastic bag outside rollers

4. Good quality cartons

5. Pallet or wood case for every 8ctns/12ctns/18ctns

6. Detail information label

Delivery Detail: 10-25days

Technic Properties:

Applications:

DU bearing is widely used in Lifting equipment, Hydraulics and valves, pneumatic equipment, medical

equipment, textile machinery, agricultural equipment, construction equipment, material handing

equipment, packaging equipment, automotive field, scientific equipment, drying ovens, office equipment, etc.

Competitive Advantage:

Picture Show
