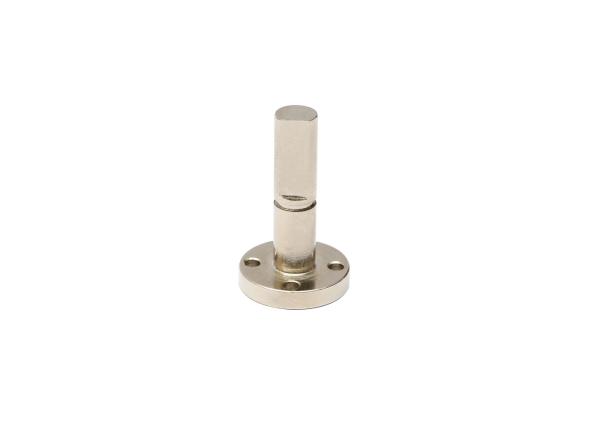

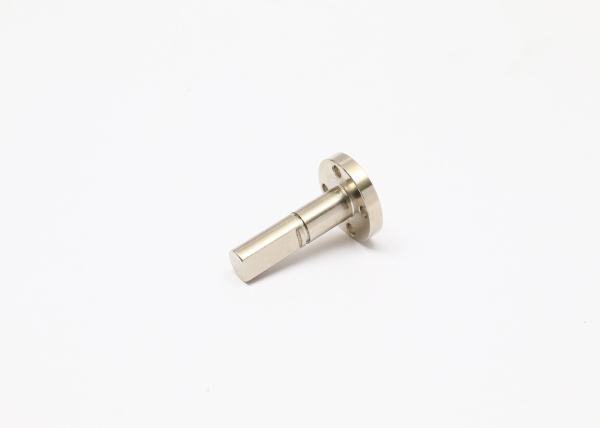

High Precision Motor Core CNC Turning Shaft Customized Made
High Precision Motor Core CNC Turning Shaft Customized Made
High Precision Motor Core CNC Turning Shaft Customized Made
High Precision Motor Core CNC Turning Shaft Customized Made
High Precision Motor Core CNC Turning Shaft Customized Made
High Precision Motor Core CNC Turning Shaft Customized Made
Specifications
Brand Name :
WEIWO
Model Number :
SK-0221Z
Certification :
IATF16949
Place of Origin :
NINGBO
MOQ :
150 sets
Price :
USD0.30-0.50 /set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per day
Delivery Time :
15-25days after PO confirmed
Packaging Details :
10-50 PCS in one carton or plastic blister tray, outside wooden pallet or wooden box.
Structure :
Flexible
Tolerance :
0.01-0.005mm
Type :
CNC shaft machining
Shape :
Regula or irregular
Material :
Steel, metal
Core Components :
Motor
Description

Customized Made High Precision CNC Turning Shaft Used As Transmission Motor Spline Shaft

OEM Customized Precision Processing Spindle Motor Machining Shaft Core Parts

Item Description
Material Aluminum: 5000series(5052...)/6000series(6061…)/7000series(7075…)
Steel: Carbon Steel,Middle Steel,Steel Alloy,etc.
Stainess Steel: 303/304/316,etc.
Copper/Brass/Bronze/Red Copper,etc.
Plastic:ABS,PP,PC,Nylon,Delrin(POM),Bakelite,etc.
Size According to standrad
Process CNC machining,Turning,Milling,Stamping,Grinding,Welding,Wire Injection,Cutting,etc.
Tolerance According to standrad
Surface Treatment (Sandblast)&(Hard)&(Color)Anodizing,(Chrome,Nickel,Zinc…)Plating,Painting,Powder Coating,Polishing,Blackened,Hardened,Lasering,Engraving,etc.
File Formats ProE,SolidWorks,UG,CAD,PDF(IGS,X-T,STP,STL)
Package Standard export carton or as per customer's requirements

Place Of Origin Ningbo,China
Product Type Shaft parts,motor shaft parts,roller shaft parts
Material steel,carbon steel,stainless steel
Surface Treatment heat treatment
Processing Technology CNC turning,CNC milling,external grinding
Size customized
Tolerance customized
Drawing Format PDF,DWG,step
Application Automotive, Automation, Test systems, Sensors, Medical, Sports, Consumer, Home appliance,Electronic, Pumps, Computers, Power and energy, Architecture, Printing, Food, Textile machinery, Optical, Lighting, Security and safety, AOI, SMT equipment, etc.
Package protective packing
sample 7—10 days
Certificate ISO,SGS
MOQ 500pcs
Production Capacity 30,000 pieces per month
Delivery time 25-30 days after receive the pre-payments
Payment Terms T/T,Paypal,Western Union,L/C or Trade Assurance 30% deposit & balance before shipping.
Our Service CNC Machining,Plastic Injection,Stamping,Die Casting,Silicone And Rubber,Aluminum Extrusion,Mould Making,etc


Descriptions of Chrome Plating Mechanical Core Shafts

Outer Diameter Ø20(-0.01/-0.04)
Total Length 310mm
Steel Material 45# DIN CK45/JIS 45C and 35# DIN CK35/JIS 35C
Chrome Hardness 950 HV Min
Roughness Rz 0.2 Micron Max
Straightness 0.2/1000mm


Supply condition

 1. Hard Chrome Plated
2. Induction Hardened
3. Dehydrogenation & Tempered


Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging

we have series of advanced and Hi-tech machine and equipment as below:
1. Automatic lathe machine
2. CNC precise lathe machine
3. CNC lathe and mill machine
4. CNC cylindrical grinding machine
5. Imported CNC milling machine
6. Imported centerless grinding machine

We also have instruments imported from Japan to measure data below:
1. Secondary image
2. Altimeter
3. Hardness
4. Deflection
5. Roundness


Description:

Surface treatment Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding…
Quality Assurance IATF16949:2016 certified/SGS/TUV
Drawing formats Solid works, Pro/Engineer, AutoCAD, UG, PDF




Equipment used

 Japan 5-axis TSUGAMI-B-038T CNC turing machine
Japan 4-axis GAMA DMN-650 machining center
Cylindrical Bore Grinders
Wire EDM
Magnetic grinding machine/ grinding Vibration machining
Oven
Ultrasonic cleaning machine
Vacuum packing machine






Inspection device

 VMS2.5d measuring machine
Japan Mitutoyo tool microscope
Japan Mitutoyo digimatic micrometer
Japan Mitutoyo hardness tester
Japan Mitutoyo calipers
Japan Mitutoyo dial indicator
Japan Mitutoyo height measuring tool
Japan Mitutoyo tubular inside micrometer
Japan Marble platform
Go No Go gauge
Electronic digital display caliper Ring gauges


Industry used

 Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication…


Project process:

Enquires → Internal technical evaluation → Technical information confirm with customer → Quotation
↓
Samples internal testing ← Samples making ← Sales confirmation ← Purchase order
↓
Customer test samples → Samples confirm with customer → Mass production → Process control & inspection
↓
Payment collection ← Goods shipment ← Logistics confirm with customer ← Final products inspection
↓
Documents send to customer → Finish

Other Picture:
