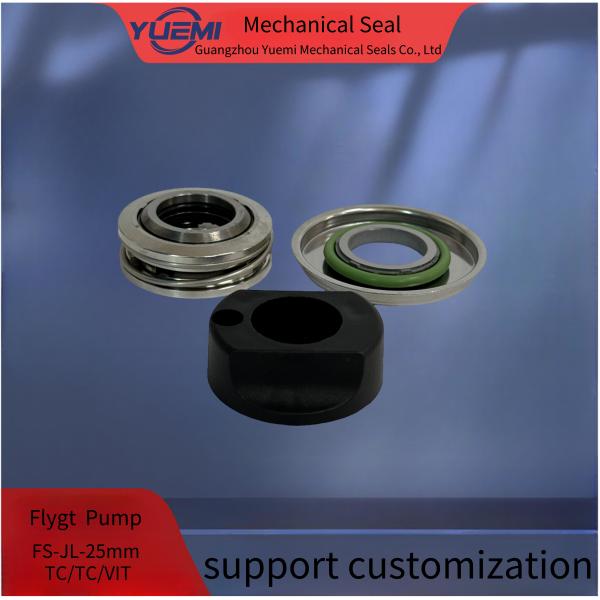

Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm
Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm
Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm
Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm
Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm
Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm
Specifications
Brand Name :
YUE MI
Model Number :
FS-JL-25mm
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
US $ 380-580/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
2 word days
Packaging Details :
Details Carton
Spring Material :
Stainless Steel
Features :
High reliability, Easy installation, Low maintenance
Sealing Faces :
Silicon Carbide, Tungsten Carbide
Operating Conditions :
Abrasive, Corrosive, High Temperature
Material :
TC/TC/Fkm
Certifications :
ISO 9001, ISO 14001, OHSAS 18001
Type :
Single Mechanical Seal
Temperature Range :
Up to 200°C
Speed :
Up to 3600 rpm
Size :
20mm, 25mm, 30mm, 35mm, 40mm
Pressure Range :
Up to 25 bar
Secondary Seals :
Nitrile, EPDM, Fkm
Application :
Pumps
Speed Range :
Up to 3600 rpm
Shaft Diameter :
Up to 150 mm
Secondary Sealing :
O-ring,
Industry :
Water and Wastewater, Mining, Chemical, Oil and Gas
Seal Faces :
TC/TC/Fkm
Description


Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC FkmFlygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC FkmFlygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm​

Application water pump model pairing table

Flygt Pump Model Shaft Size Upper Seal Lower Seal
3085-091,3085-120,3085-170,3085-171,3085-181,3085-280,3082-290,3085-890 20mm FS-G-U20 FS-G-L20 or FS-H-L20
3101 28mm FS-B-U28 FS-B-L28
3102 25mm FS-J-U25 FS-J-L25
3126-90,3126-180 35mm FS-K-U35 FS-K-L35
3126-91,3126-280,3126-290 35mm FS-K-U35 FS-M-L35
3126-181,3127 35mm FS-M-U35 FS-M-L35
3140,3152 45mm FS-O-U45 FS-O-L45
3170,3201 60mm FS-Q-U60 FS-Q-L60
3200 60mm FS-P-U60 FS-P-L60
3230,3300-91,3300-181,3300-280,3300-980,3305 90mm FS-S-U90 FS-S-L90
3310,3311,3312,3350,3351 90mm~120mm FS-S-U90 FS-T-L120
3355,3356,3357 90mm FS-S-U90 FS-S-L90
3500,3501,3530,3531,3600,3601,3602 90mm~120mm FS-S-U90 FS-T-L120
4351,4352,4400 20mm FS-G-U20 FS-H-L20
4410,4430 60mm / FS-Q-L60
4440,5530 35mm FS-M-U35 FS-M-L35
4650,4660 45mm FS-O-U45 FS-O-L45
4670,4680,7045 60mm FS-Q-U60 FS-Q-L60
7050,7051,7055,7060,7061,7076,7556 90mm FS-S-U90 FS-S-L90
7080,7115 90mm~80mm/90mm~120mm FS-S-U90 FS-S-L80/FS-T-L120
7570,7585 90mm~120mm FS-S-U90 FS-T-L120
Grindex Maior,Master, Matador,Midi,Minette,Salvador 25mm~24mm FS-Z-U25 FS-Z-L24
Grindex Maxi 45mm FS-O-U45 FS-N-L45
Ready models 4 8 12&16 15mm FS-D-U15 /
Ready 24 20mm FS-A-U20 FS-A-L20
Ready 90 28mm FS-I-U28 FS-I-L28
Steaty 7 20mm FS-G-U20 FS-G-L20
600 60mm FS-Q-U60 FS-Q-L60
605,615,665,670,680 90-80mm FS-S-U90 FS-S-L80
705,715,720,721,735,745,760,765,770,775 90mm~80mm/90mm~120mm FS-S-U90 FS-S-L80/FS-T-L120
820,840,841,860,880,881,900 90mm~80mm/90mm~120mm FS-S-U90 FS-S-L80/FS-T-L120
2004,2008,2012,2016 15mm FS-D-U15
2024 20mm FS-A-U20 FS-A-L20
2050,2052 15mm FS-D-U15 /
2060 20mm FS-G-U20 FS-G-L20
2066 20mm FS-A-U20 FS-A-L20
2070 22mm FS-E-U22 FS-E-L22
2071 22mm FS-E-U22 FS-E-L22
2075 20mm FS-A-U20 FS-A-L20
2082209021252140 28mm FS-I-U28 FS-I-L28
,,,2084,2135 35mm FS-K-U35 FS-K-L35
2101 20mm FS-A-U20 FS-A-L20
2102-40 22mm FS-E-U22 FS-E-L22
2151-10 35mm FS-K-U35 FS-K-L35
2151-11,2151-50 35mm FS-K-U35 FS-L-L35
2201-10,2201-320,2201-430,2201-480 45mm~35mm FS-O-U45 FS-K-L35
2201-590,2201-690 45mm FS-O-U45 FS-O-L45
2201-11HT or MT 45mm FS-N-U45 FS-N-L45
2201-11LT 45mm FS-O-U45 FS-N-L45
2250,2290 60mm FS-P-U60 FS-P-L60
2400 60mm FS-R-U60 FS-R-L60
3041-281 20mm FS-G-U20 FS-G-L20
3057 20mm FS-G-U20 FS-H-L20
3057-180,3060 20mm FS-G-U20 FS-G-L20
3065 20mm FS-A-U20 FS-A-L20
3067-170,3067-250,3068 20mm FS-G-U20 FS-G-L20
3080 20mm FS-A-U20 FS-A-L20
3082 22mm FS-E-U22 FS-E-L22

Technical Parameters
Temperature 30℃~180℃
pressure ≤1.2Mp a
Speed ≤10m/s

Materials
Rotary Seal Face TC
Stationary Seal Face TC
Rubber Parts NBR/EPDM/Fkm
Other Parts SUS304/SUS316

Technical Parameters:

Technical Parameter Specification
Speed Up To 3600 Rpm
Application Pumps
Longevity Highly Durable
Installation Easy To Replace
Pressure Range Up To 10 Bar
Temperature Range Up To 180°C
Material Stainless Steel
Secondary Sealing O-ring
Compatibility Fits Most Flygt Pumps
Seal Faces Carbon Vs. Ceramic

Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring


Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.


Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.

2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil

3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position

B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.


Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.

Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm

We would like lo sincerely ooperale with Clients to supply high qually products and senice We beleve in establishing a long:erm cooperalive relalionshipis lhe key to suceess

Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm

Flygt Elastomer Mechanical Seal 3102 FS JL-25mm TC TC Fkm
