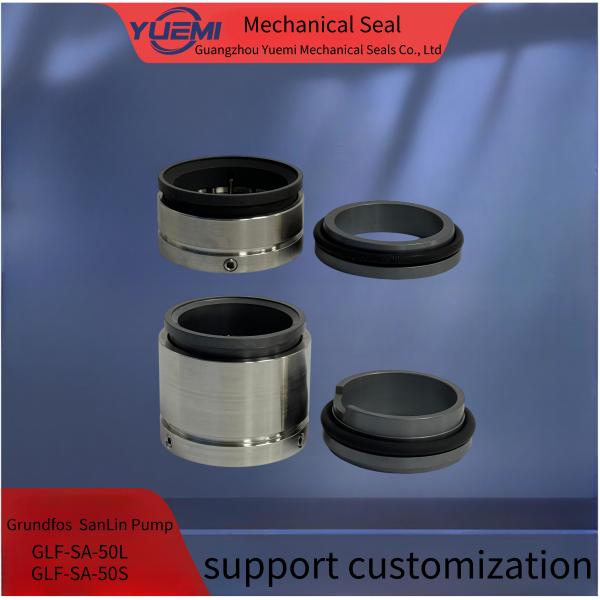

SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S
SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S
SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S
SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S
SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S
SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S
Specifications
Brand Name :
YUE MI
Model Number :
GLF-SA-50L GLF-SA-50S
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
US $ 1~99/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000/Set/Month
Delivery Time :
2 word days
Packaging Details :
Details Carton
Traemark :
YUEMI
Pump :
grundfos pump
Function :
for Pump, Compressor
Shaft diameter :
GLF-SA-50L GLF-SA-50S
Description

SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S


Product Description:

Replacement to:

Suitable for CR, CRN, and CRI series Sarlin Pumps

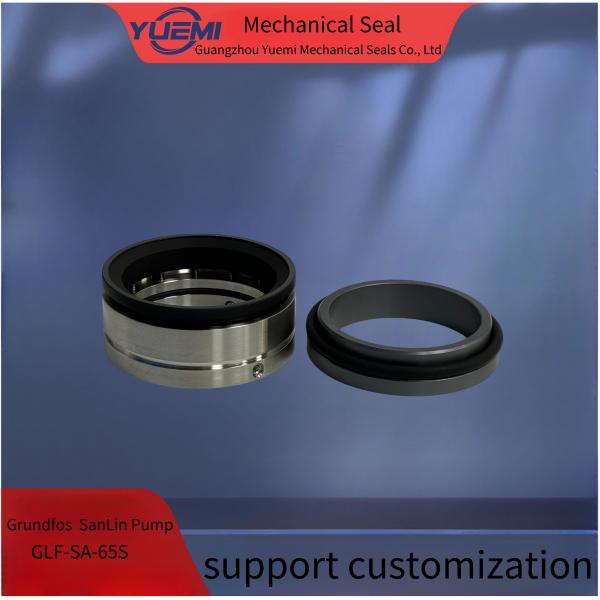

GLF-SA-S : 38MM; 50MM; 65MM

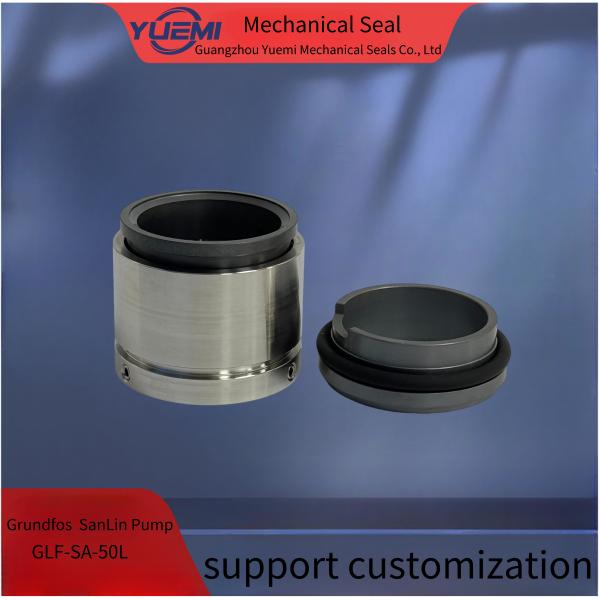

GLF-SA-L : 32MM; 38MM; 50MM ;65MM

Temperature
-30ºC to 200ºC
Pressure
Up to 25 bar
Speed
Up to 20 m/s
End play/axial float allowance
±0.1mm
Size
 32mm ; 38mm; 50mm; 65mm
Brand
JR
Face
SiC,CAR,TC
Seat
TC ,SiC
Elastomer
NBR, EPDM, Fkm AFAL etc
Spring
SS304, SS316
Metal parts
SS304, SS316

Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring


Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.


Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.

2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil

3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position

B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.


Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.

SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S

We would like lo sincerely ooperale with Clients to supply high qually products and senice We beleve in establishing a long:erm cooperalive relalionshipis lhe key to suceess

SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S

SanLin Mechanical Seal Grundfos CR 10 GLF-SA-50L GLF-SA-50S
