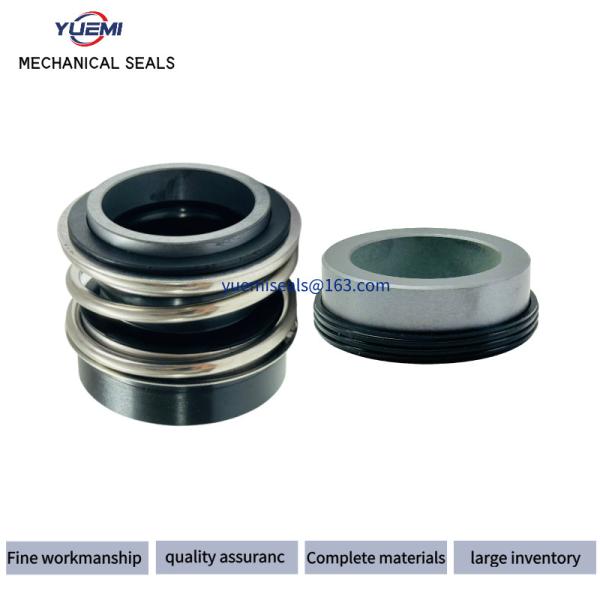

AES K-SB2 Vulcan 192K Mechanical Seal Elastomer Bellow Mechanical Seals For Pumps
AES K-SB2 Vulcan 192K Mechanical Seal Elastomer Bellow Mechanical Seals For Pumps
AES K-SB2 Vulcan 192K Mechanical Seal Elastomer Bellow Mechanical Seals For Pumps
AES K-SB2 Vulcan 192K Mechanical Seal Elastomer Bellow Mechanical Seals For Pumps
AES K-SB2 Vulcan 192K Mechanical Seal Elastomer Bellow Mechanical Seals For Pumps
AES K-SB2 Vulcan 192K Mechanical Seal Elastomer Bellow Mechanical Seals For Pumps
AES K-SB2 Vulcan 192K Mechanical Seal Elastomer Bellow Mechanical Seals For Pumps
AES K-SB2 Vulcan 192K Mechanical Seal Elastomer Bellow Mechanical Seals For Pumps
Specifications
Brand Name :
YUE MI
Model Number :
K-SB2-028
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
5/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Standard Or Nonstand :
Standard
Oem :
supper
Temperature :
Up to 200°C
Face :
VIT SIC SIC
Usage :
K-SB Pump
Pump :
grundfos pump
Product :
Customizable OEM
Trademark :
YUEMI seal
Key Word :
K-SB mechanical seal
Bore Size :
28mm38m48mmm
Description
Product Description
Vulcan K-SB2 Mechanical Seal For Pump Model Etabloc BN 100-160
Operating pressure :Up to 25 bar dynamic Up to 37.5 bar static
Temperature : -30 °C to 140 °C		 Stationary faces :Carbon, Ceramic, Silicon carbide, Tungsten carbide,
Rotary faces: Carbon, Ceramic, Silicon carbide, Tungsten carbide,
Elastomers :Aflas, EPDM, FEP Viton/Silicone, Kalrez, Nitrile, PTFE, Silicone, Viton, QK, HNBR, CR

Working Conditions
Mediums: Petroleum products,chemical solvents,medium and weak corrsive acids, etc.
Temperature: -20ºC~+120 ºC
Pressure: ≤ 1.2 MPa
Speed: ≤ 10 m/s

Combined Materials
Rotary Ring : Carbon / SiC / TC
Stationary Ring : 99% Ceramic / SiC/ TC
Secondary Seal : EPDM / VITON / NBR
Spring and Metal Parts: SUS304 / SUS316

AES K-SB2 Vulcan 192K Mechanical Seal Elastomer Bellow Mechanical Seals For Pumps

Product Parameters
Size d(mm) D3 D1 L1 L2
192K-16 26.0 27.0 22.2 8.6
192K-22 36.0 37.0 25.5 12.1
192K-28 47.0 43.0 36.4 14.4
192K-38 58.0 56.0 42.0 13.2
192K-48 69.0 66.0 50.5 9.6
