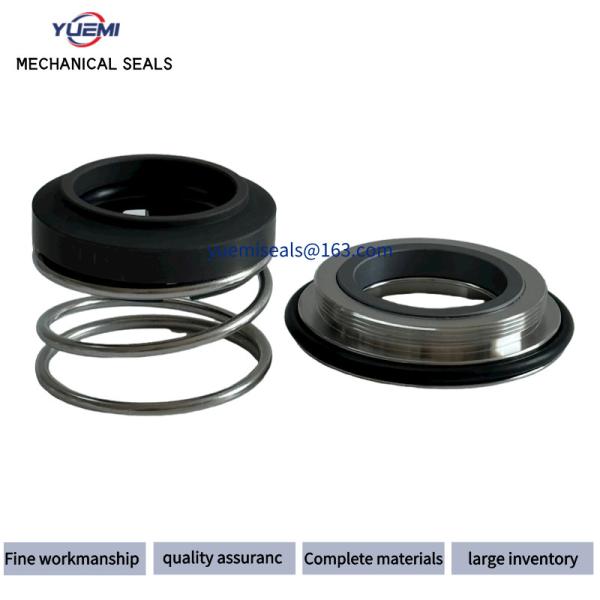

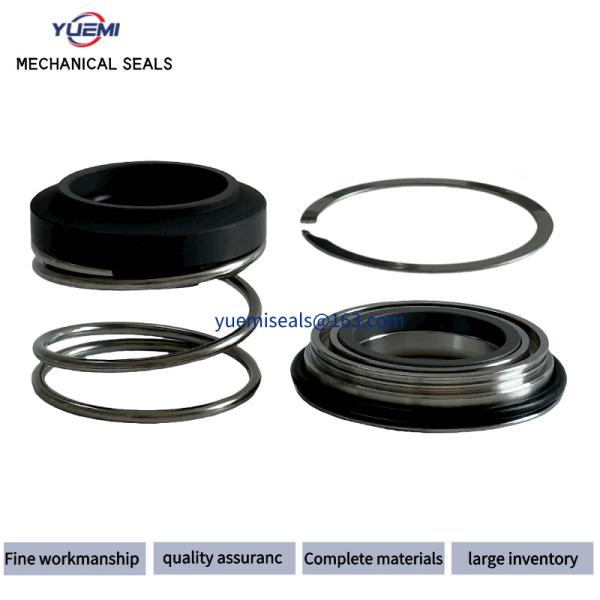

Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Aesseal P07 Double Seal For GM, Alc, Lkh Sanitary Pump Aifa Laval 41.75mm Size Shaft Mechanical Seal
Specifications
Brand Name :
YUE MI
Model Number :
P07 Double Sea
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Extra Service :
OEM is welcome
Model :
P07 Double Sea
Leadtime :
Fast to Ship
Operating Conditions :
Clean Water, Seawater, Oil, Weak Acid, Weak Alkali
Product :
A-lfa Laval Pump
Rotary Ring :
Carbon, Silicon
Description

Product Description

Mechanical Seals for Sanitary Pumps 93-22 Carbon Vulcan 93b-22 AES P07 Seal

Description:
Operating Range:
Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear
Standard: Enterprise Standard
Suit for ALF LAVL Series PumpsI
replace: AES-P07
Pressure: 1.2 MPa or less
Temperature: - 20 ~ 180 ºC
Linear Speed: 10 m/s or less
Material:
Rotary Ring Face: Tungsten Carbide/SiC
Stationary Ring Face: Tungsten Carbide/SiC
Elastomers: Vit/NBR/FFKM
Springs: SS316/HC276
Metal Parts: SS304/SS316L

Spring Mechanical Seal for LKH ALF LAVL Pumps
Structural Features: single end, balanced, dependent direction of rotation, single spring. This component has a compact structure
with good compatibility and easy installation.
Industrial Standards: specifically customized for ALF LAVL pumps.
Scopes of Application: mainly used in ALF LAVL water pumps, this seal can replace AES P07 mechanical seal.
Operational conditions: Materials
temperature -20ºC to +180ºC Stationary ring B,Q2,U2
Pressure <<1.2Mpa Rotary ring B,Q2,U2
Speed <<15m/s Secondary seal V,E,P
Standard DIN24960 Spring and metal parts F,G
Application: clean water,sewage water, Oil and other moderately corrosive fluids
