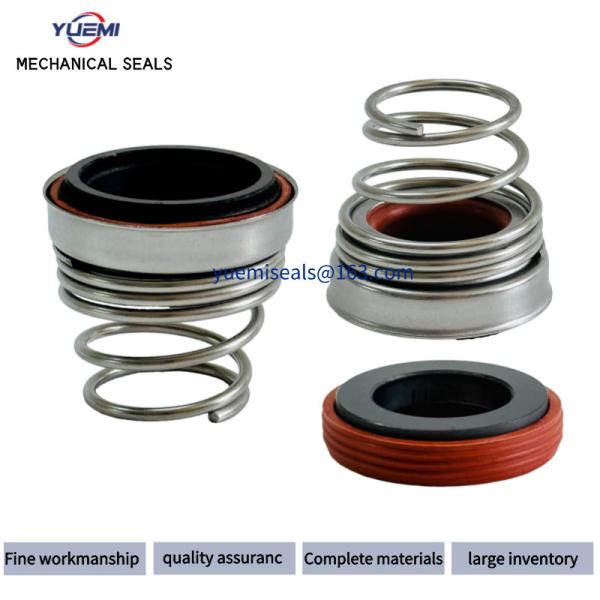

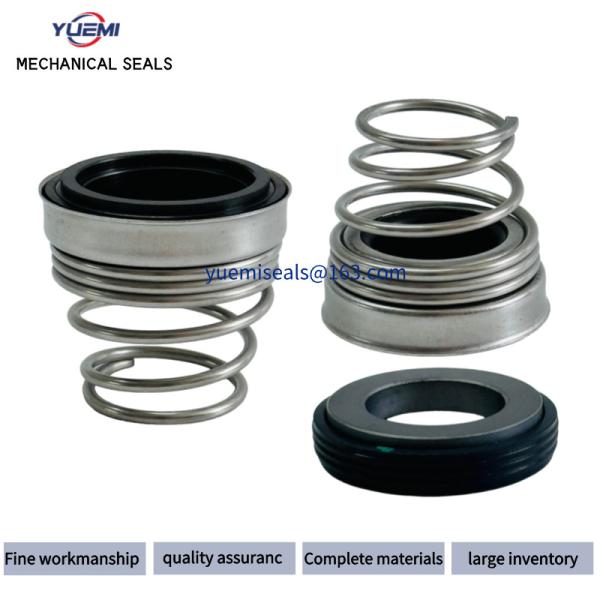

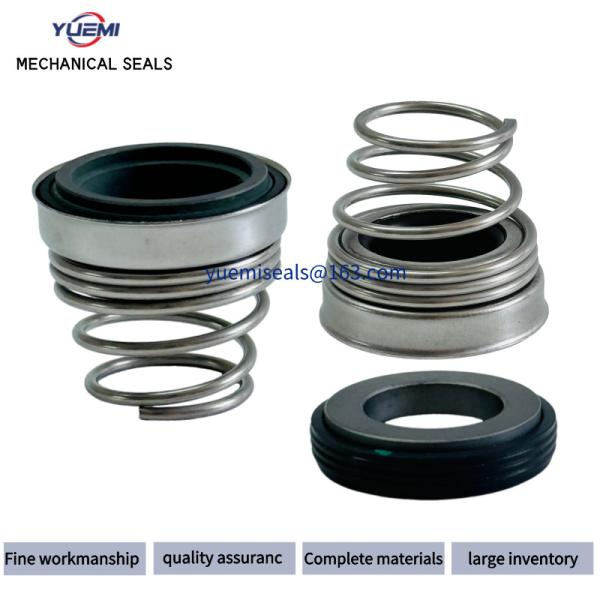

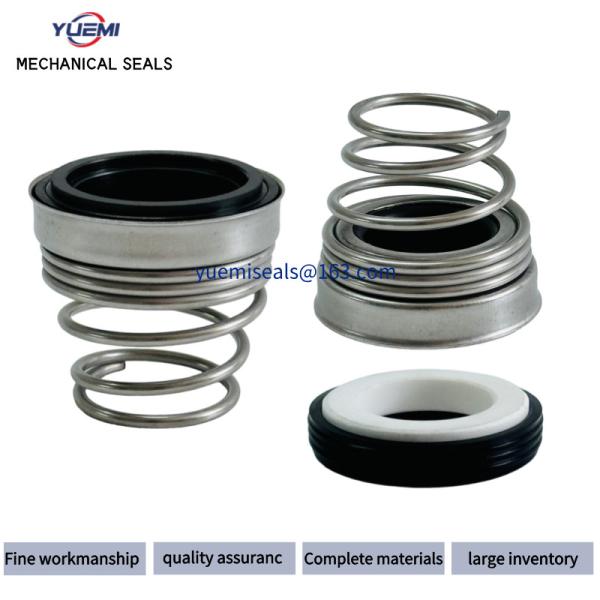

Bt-Fn Water Pump Mechanical Shaft Seal 155 Type Bellow Mechanical Seal For Circulation Pump
Bt-Fn Water Pump Mechanical Shaft Seal 155 Type Bellow Mechanical Seal For Circulation Pump
Bt-Fn Water Pump Mechanical Shaft Seal 155 Type Bellow Mechanical Seal For Circulation Pump
Bt-Fn Water Pump Mechanical Shaft Seal 155 Type Bellow Mechanical Seal For Circulation Pump
Bt-Fn Water Pump Mechanical Shaft Seal 155 Type Bellow Mechanical Seal For Circulation Pump
Bt-Fn Water Pump Mechanical Shaft Seal 155 Type Bellow Mechanical Seal For Circulation Pump
Bt-Fn Water Pump Mechanical Shaft Seal 155 Type Bellow Mechanical Seal For Circulation Pump
Bt-Fn Water Pump Mechanical Shaft Seal 155 Type Bellow Mechanical Seal For Circulation Pump
Specifications
Brand Name :
YUE MI
Model Number :
155
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Linear Velocity :
≤20m/s
Seat :
Ceramic, Sic, Tc
Working Medium :
Water, oil and weakly-corrosive mediums
Pump :
BT-FN
Leadtime :
in Stock
Secondary Seal :
NBR/EPDM/Viton
Support :
OEM/ODM
Seal Design :
Balanced, Standard
Model :
155
Description

Product Description

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.

The BT-FN combines a spring loaded ceramic face with the tradition of the pusher mechanical seals, the competitive price and the wide range of application have made 155(BT-FN) a successful seal. recommended for submersible pumps. clean water pumps, pumps for domestic appliances and gardening.

High Quality Mechanical Seals


Description:

Replacement to:

BT-FN

For blower pump, diving pump and circulating pump

machanical seals


1. Operational Conditions:
Temperature: -20ºC to +150ºC
Pressure: ≤1.0MPa
Speed: ≤10m/s
2. Materials:
Stationary Ring: Carbon, Silicon Carbide
Rotary Ring: Ceramic, Silicon Carbide
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel
3. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Parameter :

1 Temperature -20ºC~150ºC
2 Pressure Less than1.0MPa
3 Speed Less than10m/s
4 Stationary Ring Ceramic/SiC/TC
5 Rotary Ring Carbon/SiC/TC/SUS304
6 Secondary Seal NBR/EPDM/Viton
7 Sping&Other Parts SUS304/SUS316L

Bt-Fn Water Pump Mechanical Shaft Seal 155 Type Bellow Mechanical Seal For Circulation Pump

MODEL D1 D3 D6 D7 L L3 L4
155-10 10 20.0 14.0 18.1 20.5 15 5.5
155-11 11 22.0 16.5 20.6 23.5 18 5.5
155-12 12 22.0 16.5 20.6 23.5 18 5.5
155-13 13 25.0 19.0 23.1 28.0 22 6.0
155-14 14 25.0 19.0 23.1 28.0 22 6.0
155-15 15 29.0 21.0 26.9 29.0 22 7.0
155-16 16 29.0 21.0 26.9 30.0 23 7.0
155-17 17 29.0 21.0 26.9 30.0 23 7.0
155-18 18 33.0 25.0 30.9 32.0 24 8.0
155-19 19 33.0 25.0 30.9 33.0 25 8.0
155-20 20 33.0 25.0 30.9 33.0 25 8.0
155-21 21 38.0 30.0 35.4 33.0 25 8.0
155-22 22 38.0 30.0 35.4 33.0 25 8.0
155-23 23 38.0 30.0 35.4 35.0 27 8.0
155-24 24 38.0 30.0 35.4 35.0 27 8.0
155-25 25 40.0 33.0 38.2 35.5 27 8.5
155-28 28 46.0 38.0 43.3 38.0 29 9.0
155-29 29 46.0 38.0 43.3 39.0 30 9.0
155-30 30 46.0 38.0 43.3 39.0 30 9.0
155-32 32 46.0 38.0 43.3 39.0 30 9.0
155-33 33 48.0 45.0 53.5 50.5 39 11.5
155-35 35 50.0 45.0 53.5 50.5 39 11.5
155-38 38 58.0 52.0 60.5 50.5 39 11.5
155-40 40 58.0 52.0 60.0 50.5 39 11.5
