Specifications
Brand Name :
YUE MI
Model Number :
105
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
10/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Oem :
Specification
Keywords :
water pump seal
Features :
High temperature resistance, corrosion resistance, easy installation
Spring Material :
Stainless Steel
Metal Parts :
SS304, SS316
Export Area :
All over the world
Shaft Size :
Full Size
Trademark :
YUEMI
Face Combination :
Carbon vs Silicon Carbide
Description

Product Description

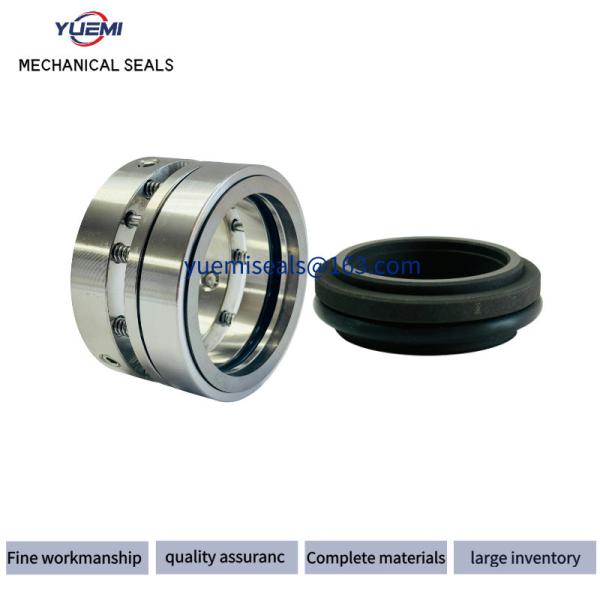

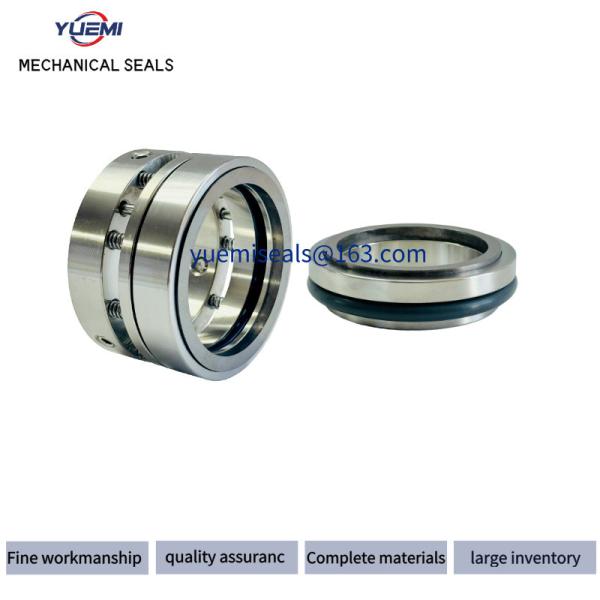

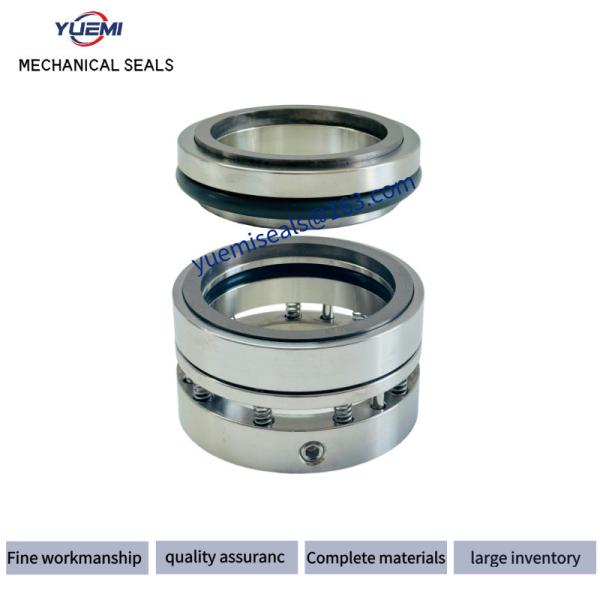

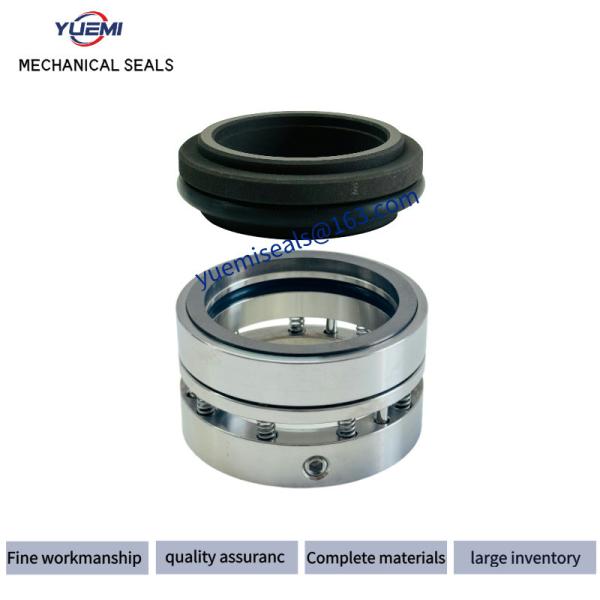

105 105B Multiple Spring Water Pump Shaft Seal


Type 105 Operating limits

Pressure:≤0.8MPa
Potational speed:≤3000r/min
Linear speed:≤20m/s

Temperature:
0ºC~+180ºC(FPM)
-20ºC~+90ºC(NBR)
-30ºC~+120ºC(EPR)
-40ºC~+230ºC(PTFE)
-40ºC~+230ºC(PTFE cover rubber)

Type 105B Operating limits

Pressure: 1.6 MPa or less
Temperature: - 20 ~ 220 ºC
Linear Speed: 15 m/s or less

Material:
Rotary Ring: Carbon/SiC/TC
Stationary Ring: SiC/TC
Elastomers: NBR/EPDM//Aflas/PTFE/FFKM
Springs: SS304/SS316
Mediums: weak acid, weak alkalis, water and solvents


Type Single End 105 Multi-Spring Mechanical Seals / Chemical Centrifugal Pumps , Screw Pumps And Sewage Pumps

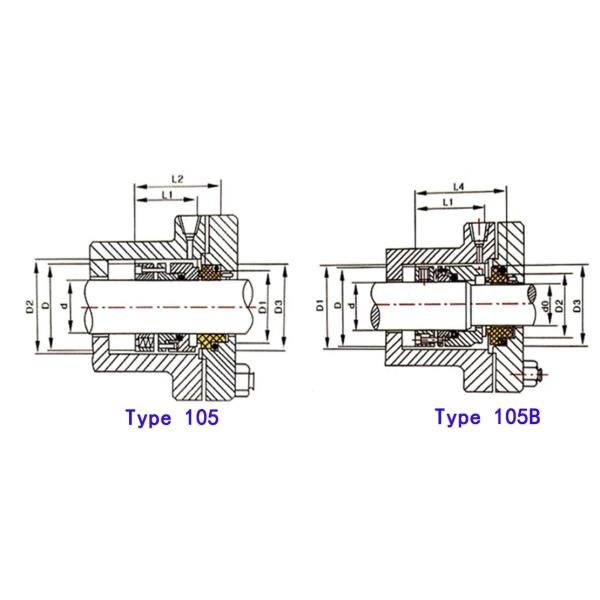

P Do D D1 D2 D3 L1 L2 L3 L4
352857455560385348 63
40346250606538534863
45386755657039544964
50447260707539544964
55487765758039544964
60528270808539544964
65589180909544625169
706296859710044655475
75661019010210544655475
80721069510711044655475
857611110011211546675677
908211610511712046675677
958512111012212546675677
1009012611512713046675677
11010014013014214551746386
