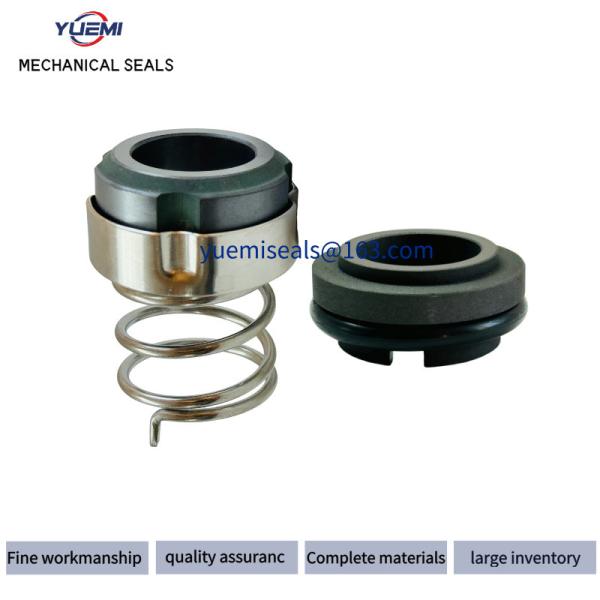

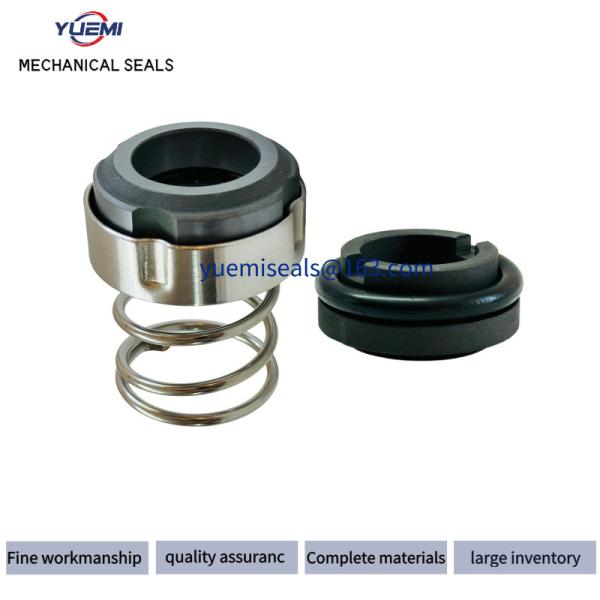

Mechanical Seals For Food Industrial Pumps Elastomer Bellows Water Pump Seals
Mechanical Seals For Food Industrial Pumps Elastomer Bellows Water Pump Seals
Mechanical Seals For Food Industrial Pumps Elastomer Bellows Water Pump Seals
Mechanical Seals For Food Industrial Pumps Elastomer Bellows Water Pump Seals
Mechanical Seals For Food Industrial Pumps Elastomer Bellows Water Pump Seals
Mechanical Seals For Food Industrial Pumps Elastomer Bellows Water Pump Seals
Mechanical Seals For Food Industrial Pumps Elastomer Bellows Water Pump Seals
Mechanical Seals For Food Industrial Pumps Elastomer Bellows Water Pump Seals
Specifications
Brand Name :
YUE MI
Model Number :
103
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
10/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Elatomer :
NBR, EPDM, Viton
Secondary Seal :
NBR, EPDM, Viton
Standard Or Nonstand :
Standard
Operating Temperature :
-20～180℃
Shaft Size :
Full Size
Appliion :
water pumps
Sealing :
FKM CAR SIC TC CE NBR EPDM
Sku :
103
Type :
Plugin Seal
Description

Detailed Description

Structural Features: single end, unbalanced, fixed direction of rotation, touched coil spring transmission. This component has a touched coil spring so you need to pay attention to the shaft rotating direction.
Scopes of Application: widely used in many types of chemical pumps and clean water pumps.

  • Operation Parameters:

    • 0.8 MPa or lessOperation Parameters:
      Temperature: - 20 ~ 220 ºC
      Linear Speed: 15 m/s or less

    Materials:

    • Rotary Ring: Carbon/SiC/TC
      Stationary Ring: SiC/TC
      Elastomers: NBR/EPDM/FKM/Aflas/PTFE/FFKM
      Springs: SS304/SS316
      Metal Parts: 410S/SS304/SS316/SS316L

    Mediums: weak acid, weak alkalis, water and solvents.

    Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: Wear
Model NO.: Type 103
Balance: Unbalanced
Specification: Inner Diameter: 20 mm to 120 mm
