Grundfos mechanical sealed pacowater pump LF/CL/KP 31.75/44.45/57.15/69.8576.2
Grundfos mechanical sealed pacowater pump LF/CL/KP 31.75/44.45/57.15/69.8576.2
Grundfos mechanical sealed pacowater pump LF/CL/KP 31.75/44.45/57.15/69.8576.2
Grundfos mechanical sealed pacowater pump LF/CL/KP 31.75/44.45/57.15/69.8576.2
Grundfos mechanical sealed pacowater pump LF/CL/KP 31.75/44.45/57.15/69.8576.2
Grundfos mechanical sealed pacowater pump LF/CL/KP 31.75/44.45/57.15/69.8576.2
Grundfos mechanical sealed pacowater pump LF/CL/KP 31.75/44.45/57.15/69.8576.2
Grundfos mechanical sealed pacowater pump LF/CL/KP 31.75/44.45/57.15/69.8576.2
Specifications
Brand Name :
YUE MI
Model Number :
PACO
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
30/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Origin :
Guangzhou, China
Style :
paco Mechanical Seal
Dimensions :
Depend your model
Stationary Ring :
Tc, Silicon Carbide
Replacement :
Vulcan Type paco Replacement
Carbon Seal :
Shaft Seal
Linear Velocity :
≤20m/s
Keywords :
Bellows Water Pump
Temperature Range :
Up to 120°C
Bearing :
Water Pump Bearing
Description

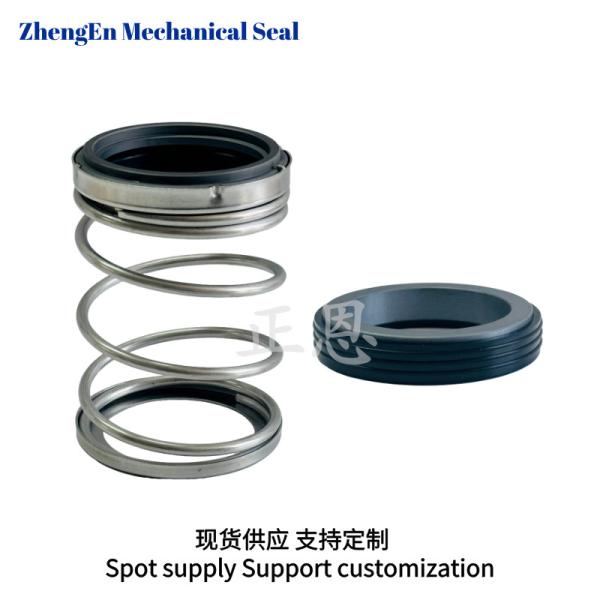

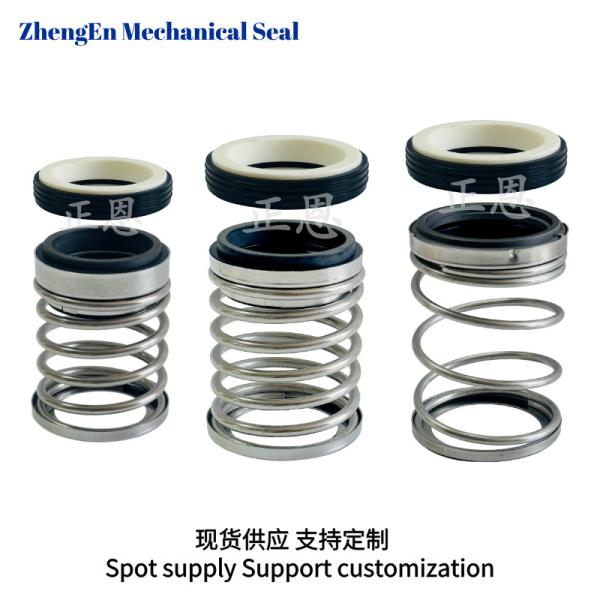

Detailed Photos
Temperature
-20ºC to 200ºC, dependent on the elastomer
Pressure
Up to 25 bar
Speed
Up to 20 m/s
Sizes
 14-65mm
Face
Carbon, SiC, TC
Seat
SiC, TC
O-rings
NBR, EPDM, VITON, Aflas, Kalrez, Chemraz etc.
Spring
SS304, SS316
Metal parts
SS304, SS316

Model d1(mm) d3 d7 11 13
960-14 14 24.5 25 35 8
960-16 16 26.8 27 35 8
960-18 18 31.8 33 37.5 10
960-20 20 32.5 35 37.5 10
960-22 22 36.5 37 37.5 10
960-24 24 38.8 39 40 10
960-25 25 38.8 40 40 10
960-28 28 46.5 43 42.5 10
960-30 30 46.5 45 42.5 10
960-32 32 46.5 48 42.5 10
960-33 33 49.5 48 42.5 10
960-35 35 49.5 50 42.5

11

Model d1(mm) d3 d7 11 13
960-38 38 54 56 45 11
960-40 40 57 58 45 11
960-43 43 61.5 61 45 11
960-45 45 61.5 63 45 11
960-48 43 70.6 66 45 11
960-50 50 70.6 70 47.5 11
960-53 53 70.6 73 47.5 12
960-55 55 76 75 47.5 12
960-58 58 79.6 78 52.5 12
960-60 60 79.6 80 52.5 12
960-63 63 84.6 83 52.5 12
960-65 65 84.6 85 52.5 13

FAQ
Q:Are you trading company or factory ?

A:We are a factory ,so we can offer you Factory Price with High Quality.

Q:Where is your factory located ?

A:Our factorty is located in guangzhou
Q:How long is your delivery?

A:For stock items ,we can ship them immediately after receiving payment .

For other items,we will need 14-25 days for mass production depends on the quantity and types of the order.

Q:Do you provide free samples ?

A:Usually we do not provide free samples .There is a sample cost which can be refund after you place order .

Q:What do you usually shipped through?

A:Air freight, Sea freight,express is the widely used shipment due to small weight and size for Mechanical seal

Q:What's your payment terms ?


A:We accept T/T, Paypal, Western Union when qualified goods are ready for ship.

Also pay to via Credit Card is welcomed.

For amount less than 1000USD ,100% in advance.

For amount more than 1000USD,50% in advance ,balance payment before shipment

Q:I can not find our products in your catalog ,can you make customized products for us ?

A:Yes ,Customized products is available .OEM is welcomed.


Q:I don't have drawing or picture available for custom products, could you design it?

A: Yes,we can make the best suitable design in accordance with your application.
