SC Single Mode 1550nm Power Over Ethernet , 802.3af POE Media Converter 1000Base-TX

Key Features

• 10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion.
• IEEE802.3af PoE PSE compatible.
• 9K bytes packet at cut-through mode
• Built-in AC/DC power supply.
• Over-current protection.
• choice of SC, BiDi or other connectors for multimode and singlemode.
• DIP switch to set different configurations.
• LFP (Link Fault Pass-through) support

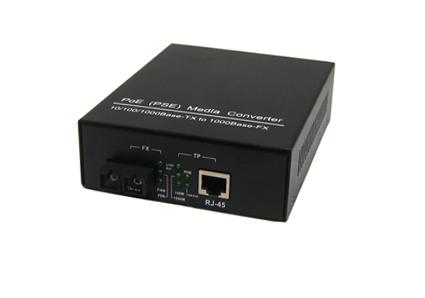

FR220 series is a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

Technical Specifications:

Data Rates:
- 10/100/1000Mbps
(IEEE802.3U IEEE802.3z 1000Base-Tx)
- 1000Mbps (1000Base-FX) or
100Mbps (100Base-FX)

Input Power Requirements:
- Input voltage ........................... 100 VAC to 240 VAC
- Input frequency ................................. 47 Hz to 63 Hz

Power over Ethernet Output:
- Pin Assignment and Polarity……1/2 (V+), 3/6 (V-)
or/and 4/5(V+), 7/8 (V-)
- Output Power…..please refer to ordering information
- Efficiency ....................................................75% min
- Short circuit protection........................ auto recovery
- Over current protection ....................... auto recovery

environmental Conditions:
- Operating temperature ....................... 0℃ to 50℃
- Cooling ........................................ free air convection
- Storage temperature ...................... -20℃ to +85℃
- Operating Humidity …… 90% max, non-condensing

Mechanical Specifications:
- Case Material……………Iron
- Case Color………………………………….Black
- Net Weight…………………….550g approx. / unit
- Dimensions………110(W) x 40(H) x 140(L) (mm)
Do not include transceiver length

Connectors:
- AC Inlet…………IEC-J-4
- LAN………………Shielded RJ-45
- Fiber………………see ordering information

Ordering Information:

*XX-XXX: supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us.
