1 Port FX 4 Port TX Ethernet Fiber Optic Switches Router 200Mhz CPU TCP/ IP PPPoE
1 Port FX 4 Port TX Ethernet Fiber Optic Switches Router 200Mhz CPU TCP/ IP PPPoE
1 Port FX 4 Port TX Ethernet Fiber Optic Switches Router 200Mhz CPU TCP/ IP PPPoE
1 Port FX 4 Port TX Ethernet Fiber Optic Switches Router 200Mhz CPU TCP/ IP PPPoE
1 Port FX 4 Port TX Ethernet Fiber Optic Switches Router 200Mhz CPU TCP/ IP PPPoE
1 Port FX 4 Port TX Ethernet Fiber Optic Switches Router 200Mhz CPU TCP/ IP PPPoE
Specifications
Place of Origin :
China
Brand Name :
Fiberroad
MOQ :
10pcs
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Payment Terms :
100% T/T advance
Supply Ability :
5000pcs/Month
Product name :
optical fiber switch
Mode: :
Single mode , Multi mode
Data rate: :
10/100/1000Mbps
Data Rate FX/TX: :
100 Base-SX/LX 10/100 Base-T
Flow Control: :
Full Duplex ,Half duplex
Wavelength: :
850nm/1310nm/1550nm
Price :
Pls send request details
Description

1 Port FX 4 Port TX Ethernet Fiber Optic Switches Router 200Mhz CPU TCP/ IP PPPoE

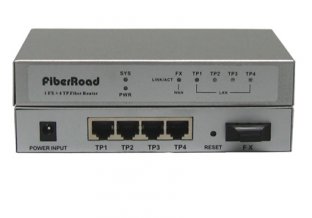

The FR366R SOHO Fiber Router is especially designed for SOHO (Small Office and Home Office) to access the Internet. It integrates the router and switch in one with high-performance and high-stability. it provides multiple strong functions, including DHCP server, DMZ host, UPnP, DDNS, firewall, Domain Name filtering and system log and so on.

  • 1 － ports 100Base-Fx WAN.
  • 4 － ports 10/100M Auto-Negotiation Ethernet LAN for LAN connection.
  • Complies with IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet standards.
  • Supports TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP, DNS, ARP.
  • Supports Auto MDI/MDIX.
  • Supports anti-D.O.S network attack to safeguard your network.
  • Supports Dynamic DNS.
  • Supports VPN pass-through.
  • Built-in DHCP server supporting static IP address distributing.
  • Provides virtual server, DMZ host, UPnP and static routing.
  • Provides MAC address filtering.
  • Supports Domain Name filtering to restrict the access policy.
  • Supports connecting/disconnecting the Internet on a specific time to save your cost.
  • Supports IGMP V3.
  • Supports remote/Web management.
  • Choice of fiber-connector from SC, FC, ST, LC, WDM, multi-mode / single-mode fiber /100Base-SX / LX SFP.

Technical Parameter Description:

Standards and Protocols Supported

IEEE 802.3, IEEE 802.3u, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP

Wavelength

850nm/1310nm/1550nm

Distance

Dual Fiber MM : 2km

Dual Fiber SM : 20/40/60/80/ 100km

Single Fiber SM : 20/40/60/ 80km

CPU

200Mhz or above

Memory

64MB or above

Network

IE5.5 or above

Input Voltage Range

9-15V/DC

Consumption

Max.6W

Operating Temperature

0 ℃ ~ 45 ℃

Storage Temperature

-40 ℃ ~ 70 ℃

Operating Humidity

10%~90% RH no condensing

Storage Humidity

5%~90% RH no condensing

Dimensions:

232mm * 142mm * 45mm

Product Information:

Model No.

Description

FR336R-S2

Multi-mode 1310nm 2km

FR336R-S20

Single-mode 1310nm 20km

FR336R-SA20

Single-mode WDM 1310/1550nm 20km

FR336R-SB20

Single-mode WDM 1550/1310nm 20km

FR336R-SFP

SFP
