Specifications
Place of Origin :
China
Brand Name :
Fiberroad
MOQ :
10pcs
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Payment Terms :
100% T/T advance
Supply Ability :
5000pcs/Month
Price :
Pls send request details
Product name :
Fiber Optic Media Converter
Mode: :
Single mode , Multi mode
Transmission Speed :
10Gb/s
Interface Type :
SFP+ to/from SFP+
Flow Control: :
Full Duplex ,Half duplex
Wavelength: :
WDM (DWDM/CWDM)
Description

XFP To SFP+ 10G Media Converter 3R Repeater Support SFP CWDM DWDM

FR600-202R series products are high-performance 10G optical signals Repeaters, realize the optical signal equilibrium amplification, clock extraction and plastic regeneration, extended optical signal transmission distance greatly.
Using Optical - Electrical - Optical wavelength conversion and WDM (DWDM/CWDM) technology, cooperate WDM device can achieve optical signals transmit in a single fiber by single or multiple way over a long distance.

Application:
SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet

Features:
Support 2U Rack (16 channel) and independent use
support network management (Web SNMP, Console),
Support a WEB form and simple network management protocol SNMP mode. A WEB management can let user to allows monitor and manage the card status easily; Support SNMP unified network management platform
support ITUT prescribed DWDM/CWDM wavelength
transmission rate:9.95 Gb/s - 11.35 Gb/s
3R function (balanced amplification, Timing Clock Obtaining , Shapping and regeneration), good dispersion management function, data transmission rippon at low.
Transparent Transport for data, less delay
support DMI function for SFP module (Diagnostic Monitoring with), can detect light power change
support Loopback test function
support hot plugging
state indicator light is complete
Easy installation

Technical Information:

Performance Data

Technical Indexes

Equipment function

3R Repeater

Transmission Speed

10Gb/s (9.95Gb/s-11.35Gb/s )

Access Type

STM-64/ OC-192/ 10G Etherne/ 10G fibre channel

Interface Type

SFP+ to/from SFP+

Transmission Distance

Up to SFP module (Max 80Km )

Local SFP+

Support 10G SFP+/CWDM/DWDM, Specific optical parameters please refer different modules's parameters

Remote SFP+

Support 10G SFP+/CWDM/DWDM, Specific optical parameters please refer different modules's parameters

power requirement

rackmountable : AC 85 ～ 220V OR DC -48V dual-supply, optional

Standalone: AC 220V OR -48V

Power consumption: ≤4W

Work Environment

Operating Temp: 0~ 50 ℃

Storage Temp: -10~ 70 ℃

Humidity: 5%~90% (non-condensing )

Dimension

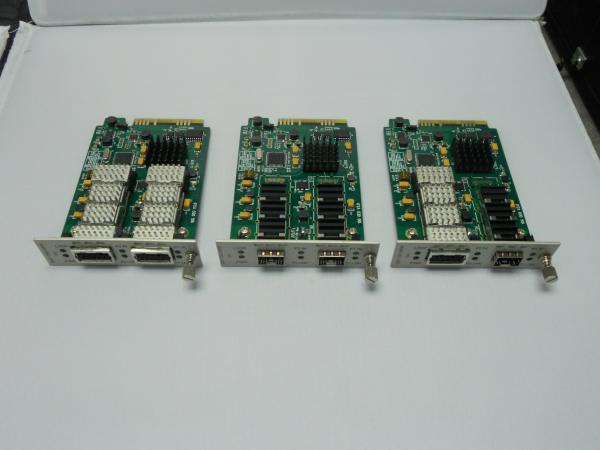

Card : 11.5mm (W)× 78mm (D)

Standalone : 156mm (W)* 128mm (D) * 32mm (H)
