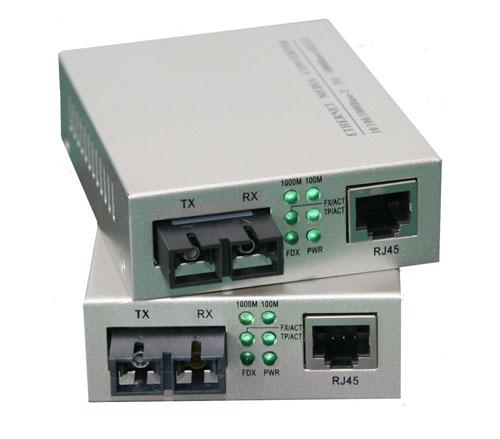

Single Mode Fiber Optic Media Converter Gigabit To Rj45 1550nm 10Base-T / 100Base-TX
Single Mode Fiber Optic Media Converter Gigabit To Rj45 1550nm 10Base-T / 100Base-TX
Single Mode Fiber Optic Media Converter Gigabit To Rj45 1550nm 10Base-T / 100Base-TX
Single Mode Fiber Optic Media Converter Gigabit To Rj45 1550nm 10Base-T / 100Base-TX
Single Mode Fiber Optic Media Converter Gigabit To Rj45 1550nm 10Base-T / 100Base-TX
Single Mode Fiber Optic Media Converter Gigabit To Rj45 1550nm 10Base-T / 100Base-TX
Specifications
Place of Origin :
China
Brand Name :
Fiberroad
MOQ :
10pcs
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Payment Terms :
100% T/T advance
Supply Ability :
5000pcs/Month
Product name :
Fiber Optic Media Converter
Mode: :
Single mode
Data rate: :
10/100/1000Mbps
Data Rate FX/TX: :
10Base-T / 100Base-TX
Port :
Rj45
Wavelength: :
850nm/1310nm/1550nm
Price :
Pls send request details
Description

Single Mode Fiber Optic Media Converter Gigabit To Rj45 1550nm 10Base-T / 100Base-TX

  • Conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and 1000Base-SX/LX , full duplex 1000Mworking pattern.
  • With distinct HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control, decrease of broadcast storm.
  • With famous brand optical-electronic-integration module providing excellent optical and electrical properties toensure reliable data transmission and long working life.
  • Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
  • Supporting Link Fail Pass fiber breaking defecting(can be chosen).
  • Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
  • Supporting 9kbyte super data packet transmission.
  • Supporting LFP.
  • Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission andfull/half duplex, data rate.
  • With more than 50, 000 hours MTBF, complying with telecom operating standard.
  • Supporting choosing optical ports from dual fiber(MM), dual fiber(SM), single fiber(SM).

Technical Parameter Description:

Technical Parameter:

Access Method:

10/100/1000Mbps

Standard:

IEEE802.3, IEEE802.3u, IEEE802.3ab , IEEE802.3z , IEEE802.1q, IEEE802.1p, IEEE802.1d

Wavelength:

850nm/1310nm/1550nm

Distance:

Dual Fiber MM : 550m
Dual Fiber SM : 10/20/30 /50/80Km ,
Single Fiber SM : 20/40/60Km
CAT5 : 100m

Conversion Method:

Media Conversion

Time Delay:

<10us

BER:

<1/1000000000

LED Indicator Lamps:

1000M , 100M , FX LINK/ACT, TP LINK/ACT, FDX, POWER

Power Supply:

DC5V 1A (external power) , AC220 0.5A /DC-48( internal power )

Power Dissipation:

3W

Operating Temperature:

0 ~ 50 ℃

Humidity:

10/100/1000Mbps

Storage Temperature:

5%~90%

Storage Humidity:

-40~ 70 ℃

Dimension:

5%~90% non-condescending

Order information:

Model No.

Description

FR-1201S05

10/100/1000M Multi-mode 1310nm 550M

FR-1201S20

10/100/1000M Single-mode 1310nm 20km

FR-1201S40

10/100/1000M Single-mode 1310nm 40KM

FR-1201SA20

10/100/1000M Single-mode WDM 1310/1550nm 20km

FR-1201SB20

10/100/1000M Single-mode WDM 1550/1310nm 20km

FR-1201SA40

10/100/1000M Single-mode WDM 1310/1550nm 40km

FR-1201SB40

10/100/1000M Single-mode WDM 1550/1310nm 40km

Single Mode Fiber Optic Media Converter Gigabit To Rj45 1550nm 10Base-T / 100Base-TX
